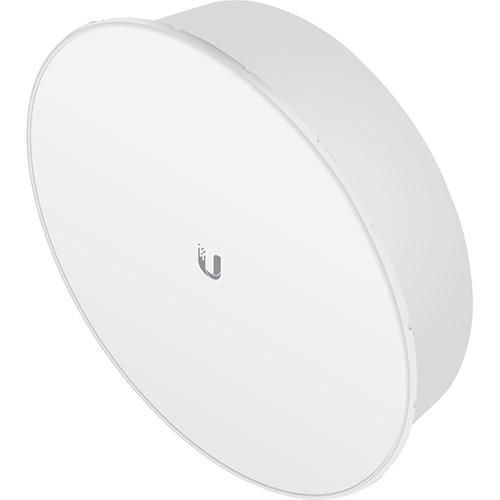

Ubiquiti PowerBeam PBE-5AC-400-ISO
5 GHz airMAX® ac Bridge with RF Isolated Reflector
Incorporating advanced engineering with proprietary airMAX ac technology, the PowerBeam® ac ISO is ideal for deployments requiring maximum performance and RF isolation.
Product Highlights
• airMAX® ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.

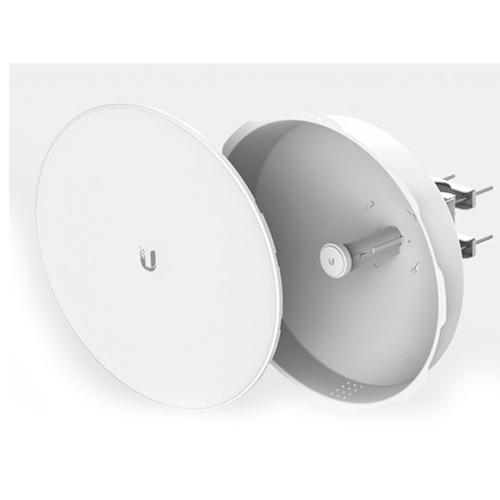

• Innovative Mechanical Design
• Superior RF Isolation
• The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
• Memory: 64MB DDR2, 16MB Flash
• Networking Interface: 1 x 10/100/1000 Ethernet Port
• Power Supply: 24V, 0.5A PoE
• Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
• Supported Voltage Range: 20-26VDC
• Max. Power Consumption: 8.5W
• Gain: 25dBi
• Operating Frequency: 5170-5875MHz
• Wind Loading: 210 N @ 200 km/h (47 lbf @ 125 mph)
• Wind Survivability: 200 km/h (125 mph)
• LEDs (1) Power, (1) LAN, (4) WLAN
• Channel Sizes: PtP Mode: 10/20/30/40/50/60/80MHz; PtMP Mode: 10/20/30/40MHz
• Polarization: Dual Linear
• Enclosure: Outdoor UV Stabilized Plastic
• Operating Temperature -40 to 158deg F (-40 to 70deg C)
