Ubiquiti Edge Switch Fiber ES-12F
Managed Gigabit Fiber Switch
The EdgeSwitch® Fiber is an aggregation switch that offers robust performance, low latency, and intelligent switching for growing networks.
Product Highlights
• Advanced Switching Technology
• Switching Performance
• Distribution Layer
• Easy Management
• Comprehensive User Interface

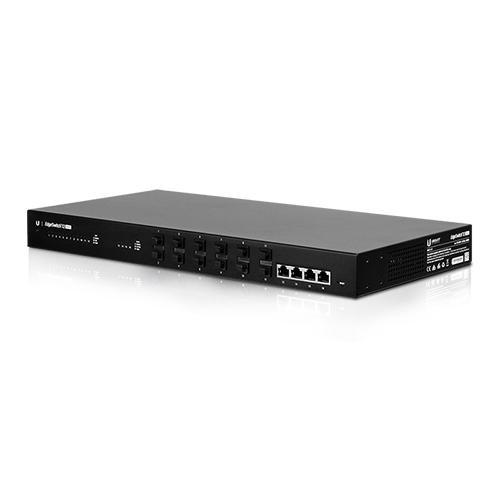

• (12) Gigabit SFP Ports
• (4) Gigabit RJ45 Ports

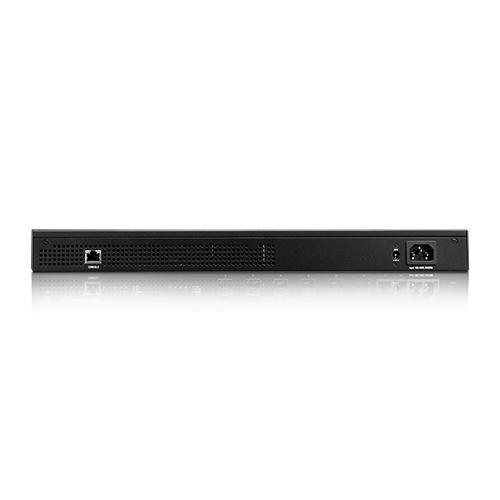

• (1) Serial Console Port
• Non-Blocking Throughput: 16 Gbps
• Switching Capacity: 32 Gbps
• Forwarding Rate: 23.81 Mpps
• Maximum AC Power Consumption: 56W
• Rackmountable with Rack-Mount Brackets (Included)
• DC Input Option (Redundant or Stand-Alone)
• Dimensions: 443 x 221 x 43 mm (17.44 x 8.70 x 1.69")
• Management Interface (1) RJ45 Serial Port, Ethernet In/Out Band
• Rackmount: Yes, 1U High
• ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
• Shock and Vibration: ETSI300-019-1.4 Standard
• Operating Temperature: -5 to 40° C (23 to 104° F)
• Operating Humidity: 5 to 95% Noncondensing
• Certifications: CE, FCC, IC
