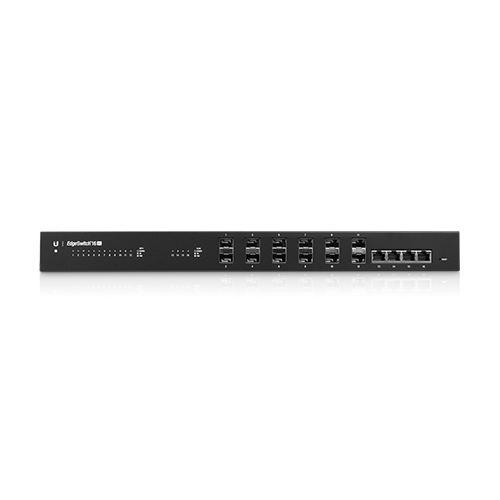

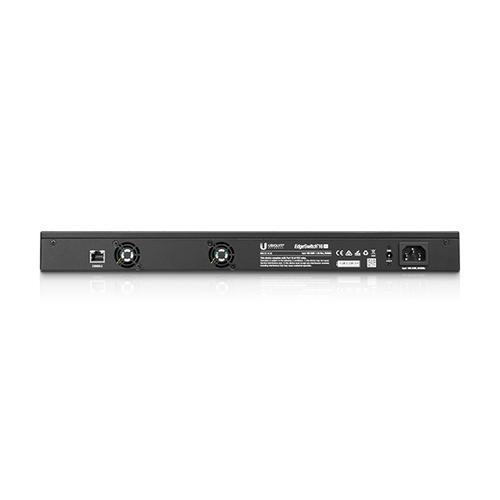

Ubiquiti Edge Switch ES‑16‑XG
10G 16-Port Managed Aggregation Switch
Available with sixteen 10G ports, the high-performance EdgeSwitch® enhances network capacity and provides high-bandwidth services to growing network
Product Highlights
• 10G High-Capacity Links
• Powerful Switching Performance
• Advanced Enterprise Switching
• (12) SFP+ Ports
• (4) 10G RJ45 Ports
• (1) RJ45 Serial Console Port
• Non-Blocking Throughput: 160 Gbps
• Switching Capacity: 320 Gbps
• Forwarding Rate: 238.10 Mpps
• Rack Mountable with Rack-Mount Brackets (Included)
• DC Input Option (Redundant or Stand-Alone)
• Dimensions : 443 x 221 x 43 mm (17.44 x 8.70 x 1.69")
• Power Supply: AC/DC, Internal, 56W DC
• LEDs: Per Data Port Speed/Link/Activity
• Networking Interfaces : (12) 1/10 Gbps SFP+ Ethernet Ports (4) 1/10 Gbps RJ45 Ethernet Ports
• Management Interface : (1) RJ45 Serial Port, Ethernet In/Out Band
• Rackmount: Yes, 1U High
• ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
• Shock and Vibration: ETSI300-019-1.4 Standard
• Operating Temperature: -5 to 40° C (23 to 104° F)
• Operating Humidity: 5 to 95% Noncondensing
• Certifications: CE, FCC, IC
