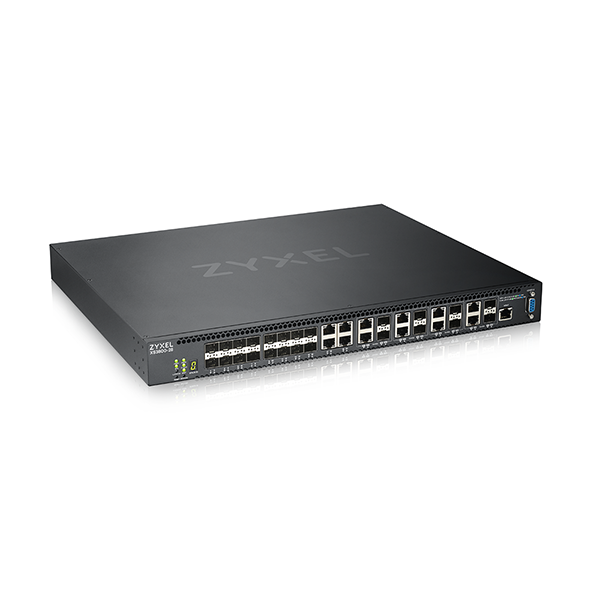

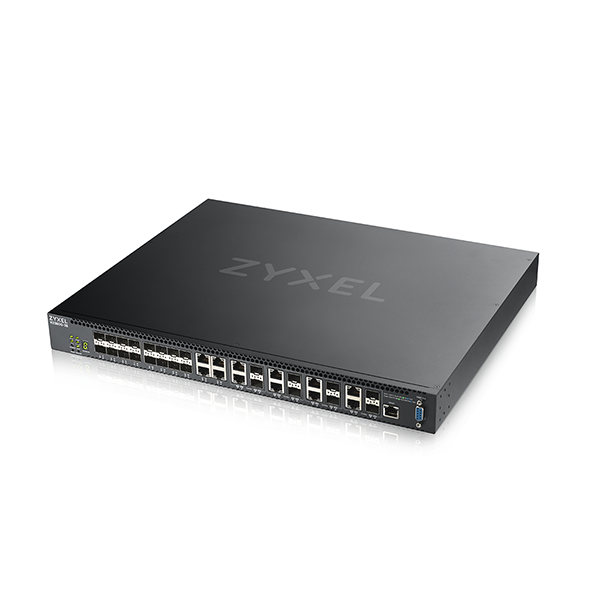

Zyxel XS3800-28 L3 Aggregation Switch
Designed for SME with 10GBASE-T connectivity and advanced L2+/L3 lite features, the Zyxel 10-Gigabit L3 Aggregation Switch XS3800-28 enables applications for aggregation or SME core switching and connection; and it comes with up to 12 Multi-Gigabit ports to help your preparation for network expansions with Multi-Gigabit capable devices such as servers, workstations and NAS. Apart from the aggregation, advanced audio and video equipments are on the trend to migrate to uncompressed high performance ProAV network with 10 Gigabit connectivity. XS3800-28 provides all the necessity that are required for high-bandwidth ProAV network infrastructure. It is also the first 10-Gigabit cloud switch that can step up the cloud network bandwidth
Product Highlights
• NebulaFlex Pro allows users to switch between standalone management and intuitive
• Nebula cloud managed mode with 1-YEAR Pro Pack bundled
• Unique port combination brings maximum flexibility to network diversity
• Support Multi-Gigabit for 100M/1G/2.5G/5G/10G connections
• Provides high-bandwidth with true physical stacking of up to 4 units
• Design with “Restore to last custom default” button and redundant power supply to deliver high resiliency and availability
Technical Specifications
• Total port count: 28
• 100M/1G/2.5G/5G/10G Ethernet (RJ-45): 4
• Multi-Gigabit combo
• (100M/1G/2.5G/5G/10G) RJ-45/(1G/10G) SFP+: 8
• 1G/10G SFP+: 16
• Switching capacity (Gbps): 560
• Forwarding rate (Mpps): 416
• Packet buffer (byte): 4 MB
• MAC address table: 32 K
• L3 forwarding table: Max. 4 K IPv4 entries / Max. 2 K IPv6 entries
• Routing table: 1K
• VLAN routing: Yes
• IP interface: 128
• Flash/RAM: 64 MB/8 GB
• Input: Dual power / 100 - 240 V AC, 50/60 Hz
• Max. power consumption (watt): 86.97
• Dimensions (WxDxH)(mm/in.): 441 x 360 x 44/17.36 x 14.17 x 1.73
• Weight (kg/lb.): 4.81/10.6
• Included accessories: Power cord / Rack mounting kit
• Temperature: 0°C to 50°C/32°F to 122°F
• Humidity: 10% to 95% (non-condensing)
• Temperature: -40°C to 70°C/-40°F to 185°F
• Humidity: 10% to 95% (non-condensing)
