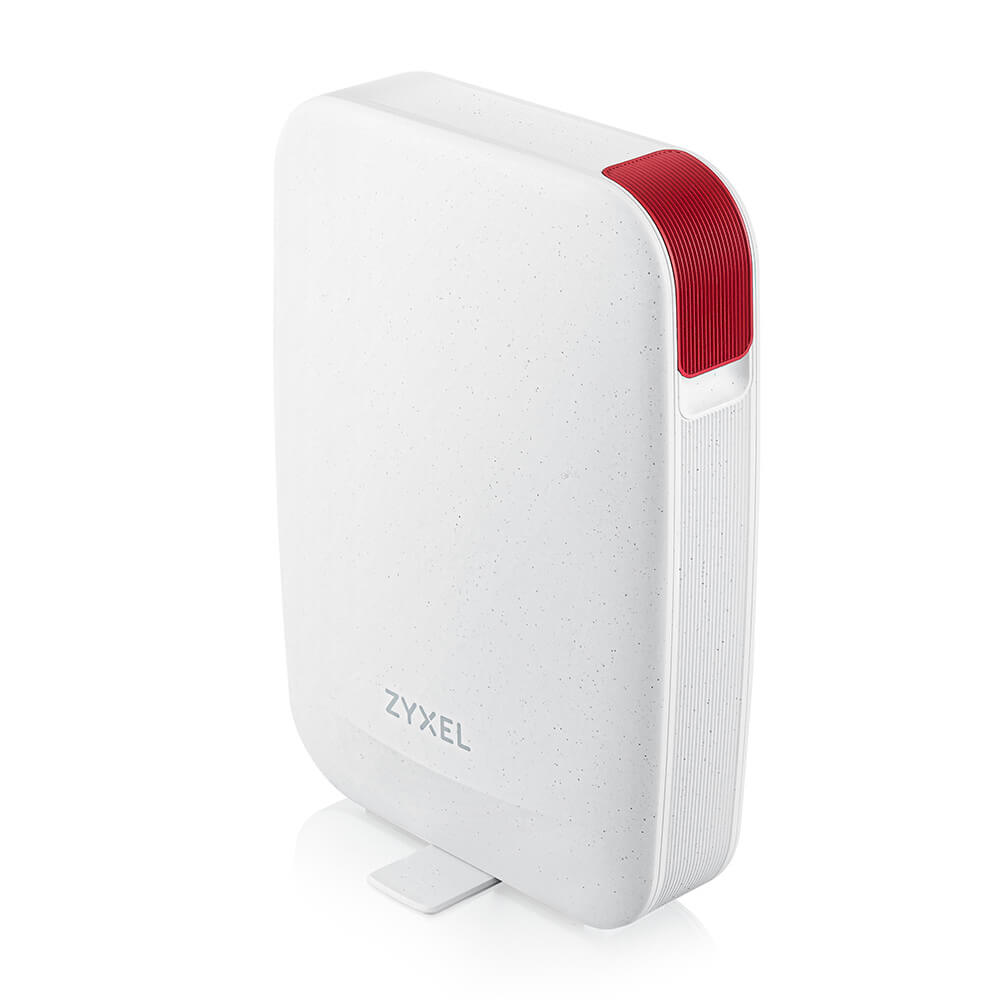

Zyxel USG LITE 60AX

Experience Uninterrupted Connectivity
Meet the USG LITE 60AX, an innovative high-performance appliance with dual 2.5GbE ports, offering easy setup and robust network security tailored for small/home offices and teleworkers.

Technical Specification
Data Sheet
Inquire Now

Product Highlights



  • Security: Subscription-free ransomware protection
  • 2.5 GbE: Dual 2.5 GbE mGig connectivity
  • Nebula: Intelligent cloud management
  • WiFi 6: Blazingly Fast WiFi 6




Technical Specifications



  • CPU: Quad-core, 2.00 GHz
  • RAM/FLASH: 1 GB/512 MB
  • Ethernet ports: WAN: 1 x 100/1000/2500 Mbps | LAN: 1 x 100/1000/2500 Mbps
  • LAN: 1 x 100/1000/2500 Mbps | 4 x 100/1000 Mbps
  • Wireless Specifications: Standard EEE802.11 ax/ac/n/g/b/a
  • MIMO: MU-MIMO
  • Wireless speed: 2.4 GHz: 1150 Mbps | 5 GHz: 4800 Mbps
  • Frequency band: 2.4 GHz: USA (FCC): 2.412 to 2.462 GHz | Europe (ETSI): 2.412 to 2.472 GHz
  • 5 GHz: USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz | European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
  • Bandwidth: 20-, 40- ,80-, and, 160-MHz
  • Conducted typical transmit output power*1
  • US (2.4GHz/5GHz):: 29/29 dBm
  • EU (2.4GHz/5GHz):: 20/29 dBm
  • Wireless security: Open, WPA2-PSK, WPA3-Personal
  • SSID number: 8
  • Fast roaming: 802.11r/k/v
  • MESH Networking: Smart Mesh
  • Antenna type: 4 (internal)
  • Antenna gain: 2.4Ghz: 3.65 dBi, 4x4: 4SS | 5Ghz: 4.63 dBi, 4x4: 4SS
  • System Capacity & Performance*2
  • SPI firewall throughput LAN to WAN (Mbps)*3: 2,000
  • Throughput with Application management on (Mbps): 2,000
  • Throughput with Threat management on (Mbps): 2,000
  • VPN Throughput (Mbps)*4: 300
  • Max. TCP concurrent sessions*5: 20,000
  • Max. gateway-to-gateway IPsec VPN tunnels: 3
  • Max. remote VPN tunnels: 5
  • VLAN interface: 4
  • Security Features
  • Ransomware / malware prevention: Yes
  • Intrusion blocker: Yes
  • Dark Web Blocker: Yes
  • Stop mail fraud & phishing: Yes
  • Block Ads: Yes
  • Block VPN proxy: Yes
  • Firewall: Yes
  • Country Restriction (Geo IP blocking): Yes
  • Exception list: Yes
  • Custom allowed / blocked domain: Yes
  • Traffic Management (applications & clients): Yes
  • Security event analytics: Nebula Threat Report
  • Real-time threat intelligence*6: Yes
  • Web Filtering (Content Filter)*6: Yes
  • Site2site VPN: IPSec
  • Remote access VPN: Yes
  • WAN Type: DHCP/Static IP/PPPoE
  • Reserve IP (static DHCP): Yes
  • Block clients: Yes
  • NAT - Virtual server: Yes
  • DHCP server and DHCP relay: Yes
  • Dynamic DNS (DDNS): Yes
  • Static route: Yes
  • Guest Network: Yes
  • VLAN Segmentation: Yes
  • Onboarding WAN setting method: Yes
  • Site-wide SSID management: Yes
  • Multi-site management: Yes
  • Client report: Yes
  • Remote support and diagnostics: Yes
  • Keep device settings in the Nebula: Yes
  • Live tools: Yes
  • Event Log: Yes
  • Nebula Pro Pack - Advance feature set*6: Yes
  • Power input: 12 V DC, 3.0 A
  • Max. power consumption (Watt Max.): 31W
  • Dimensions (WxDxH)(mm/in.): 161.7 x 65 x 229 mm (6.37” x 2.56” x 9.02”)
  • Weight (g/lb.): 707/1.56
