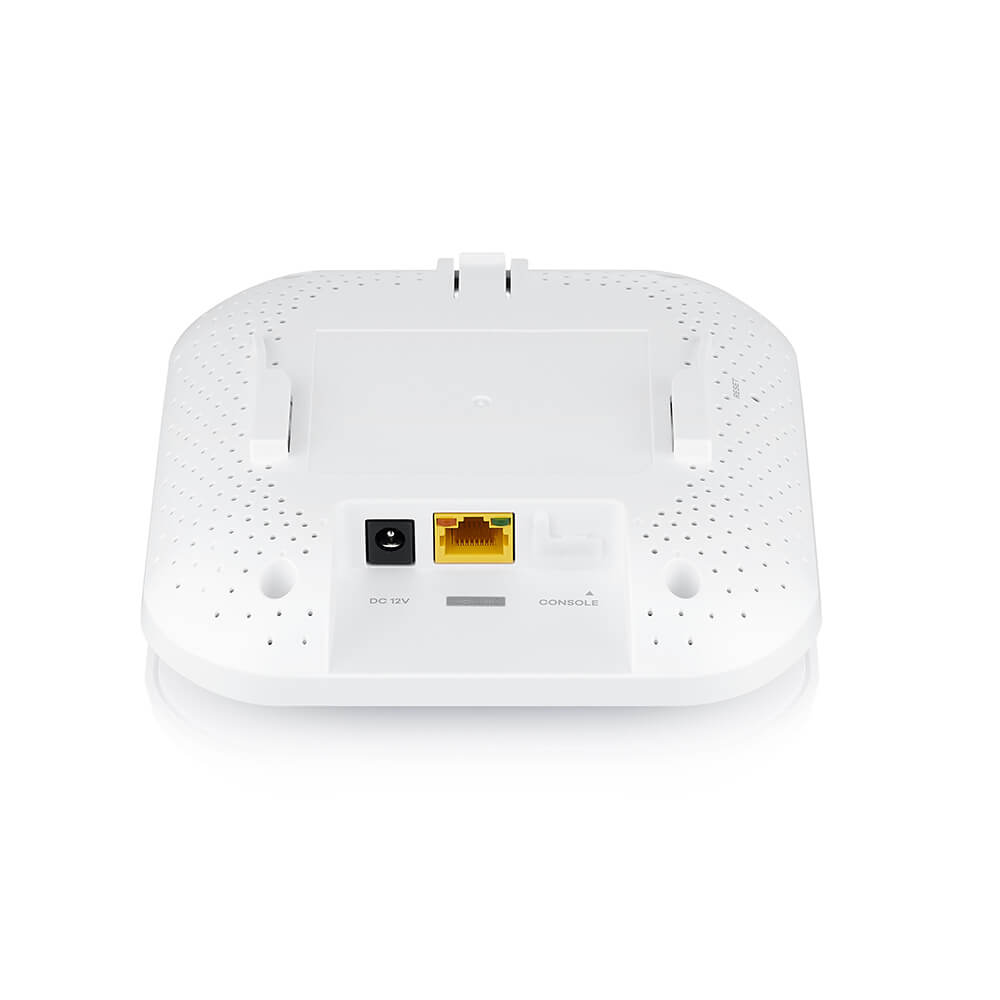

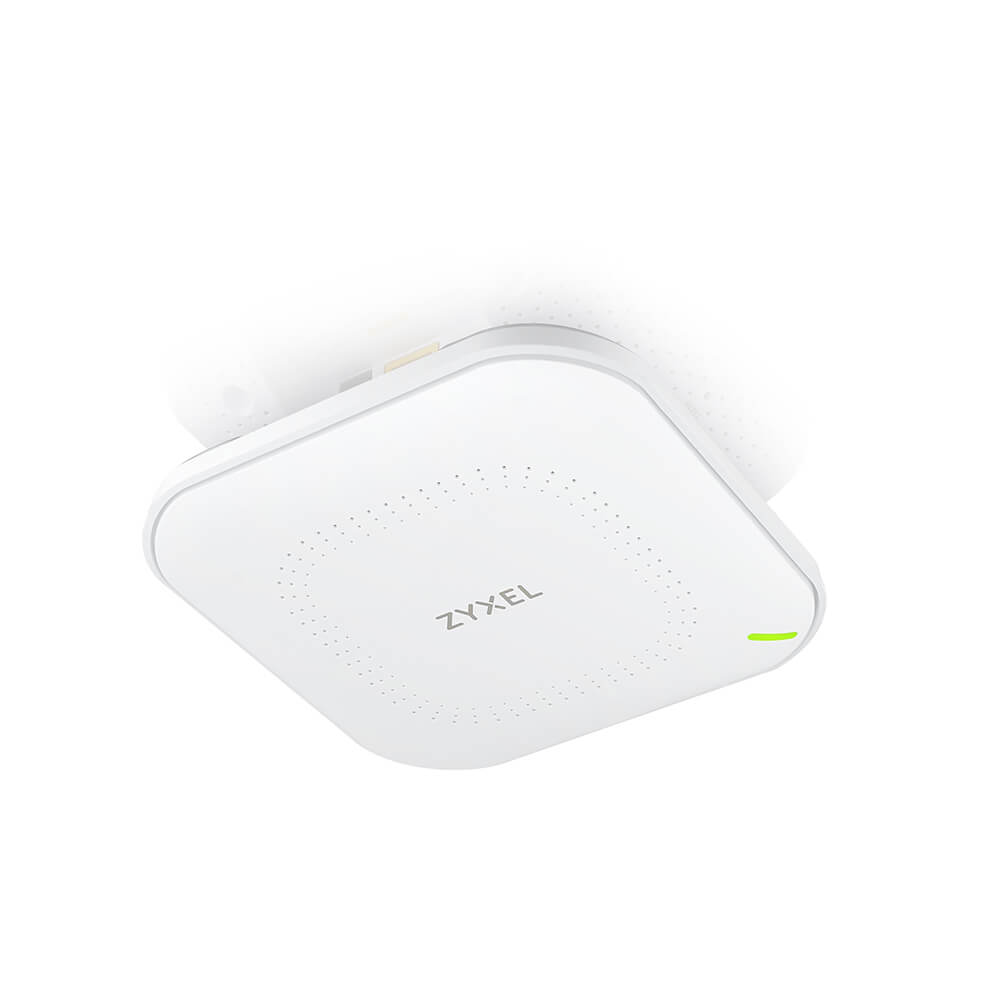

Zyxel NWA90AX 802.11ax (WiFi 6) Dual-Radio PoE Access Point
Your Simple Path to WiFi 6
The NWA90AX is truly the right choice for SMB users looking to upgrade to 11ax (WiFi 6) access points without an expensive price tag. Supporting both 2.4Ghz and 5Ghz frequencies, the AP is aimed to empower you to enjoy all the best things WiFi 6 has to offer such as faster speeds even when congested or in high-density environments, expanded range in your wireless network, and increased capacity for IoT deployments.
Product Highlights
• Dual-radio (dual 2x2) 802.11ax AP provides maximum data rate of 1775 Mbps
• Captive portal and IEEE 802.1X authentication support provides enterprise-level security
• NebulaFlex allows users to switch between standalone or intuitive Nebula cloud managed modes as needed
• Advanced Cellular Coexistence minimizes interferences from 4G/5G cellular networks
• Smart Mesh automatically forms dynamic wireless links and mitigates complex, inconvenient cabling WiFi deployments
• Wireless: StandardIEEE 802.11 ax/ac/n/g/b/a
• MIMO: MU-MIMO
• Wireless speed: 2.4 GHz 575 Mbps | 5 GHz 1200 Mbps
• Frequency band: 2.4 GHz
o USA (FCC): 2.412 to 2.462 GHz
o Europe (ETSI): 2.412 to 2.472 GHz
• 5 GHz
o USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz
o European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
• Bandwidth: 20-, 40-, 80-MHz
• Conducted typical transmit output power
• US
• (2.4 GHz/5 GHz)
• 23/26 dBm
• EU
• (2.4 GHz/5 GHz)
• 20/25 dBm
• Antenna type: 2x2 + 2x2 MIMO embedded antenna
• Antenna gain: 2.4 GHz 3 dBi | 5 GHz 4 dBi
• Minimum receive sensitivity: Min. Rx sensitivity up to -99 dBm
• Band steering: Yes
• WDS/Mesh: Yes
• Fast roaming: Yes
• DCS: Yes
• Load balancing: No
• Encryption: WEP/WPA/WPA2-PSK/WPA3
• Authentication: WPA/WPA2-Enterprise/EAP/IEEE 802.1X/RADIUS authentication
• Access management: L2-isolation/MAC filtering/Rogue AP detection
• IPv6: Yes
• VLANs: Yes
• WMM: Yes
• U-APSD: Yes
