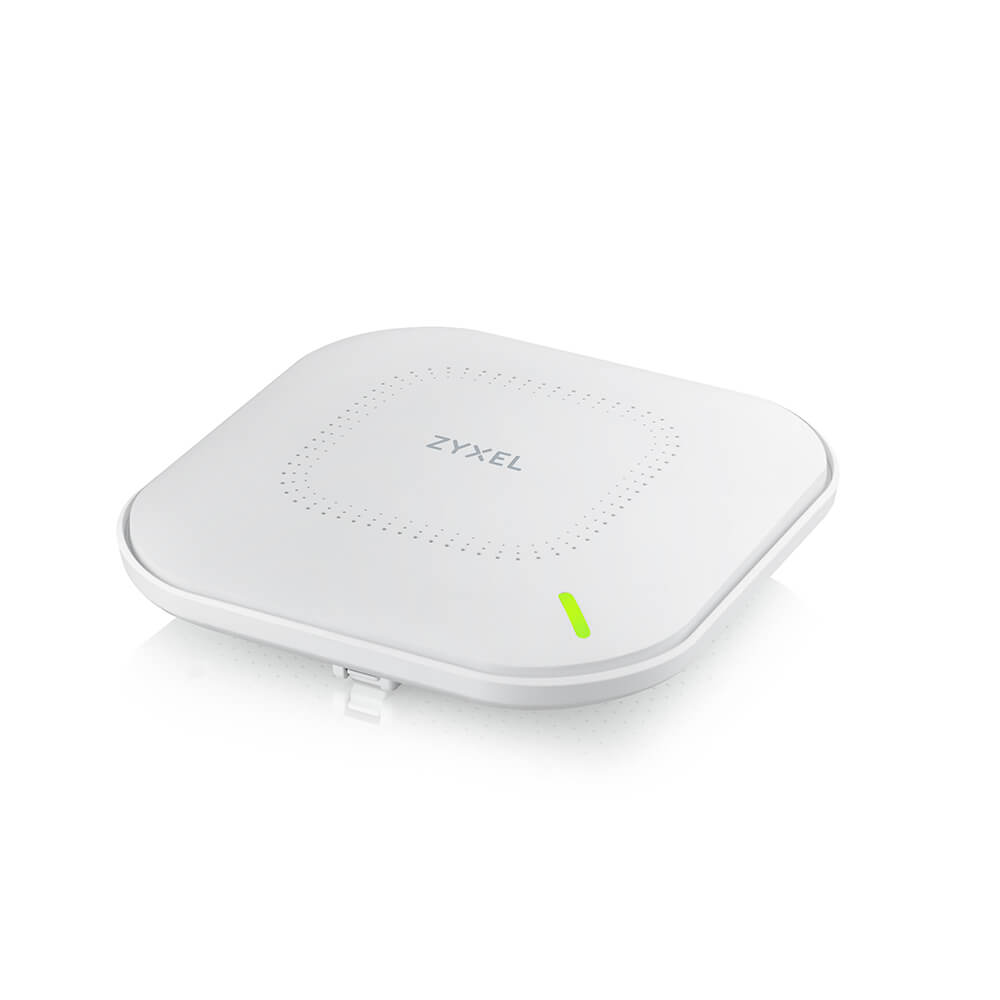

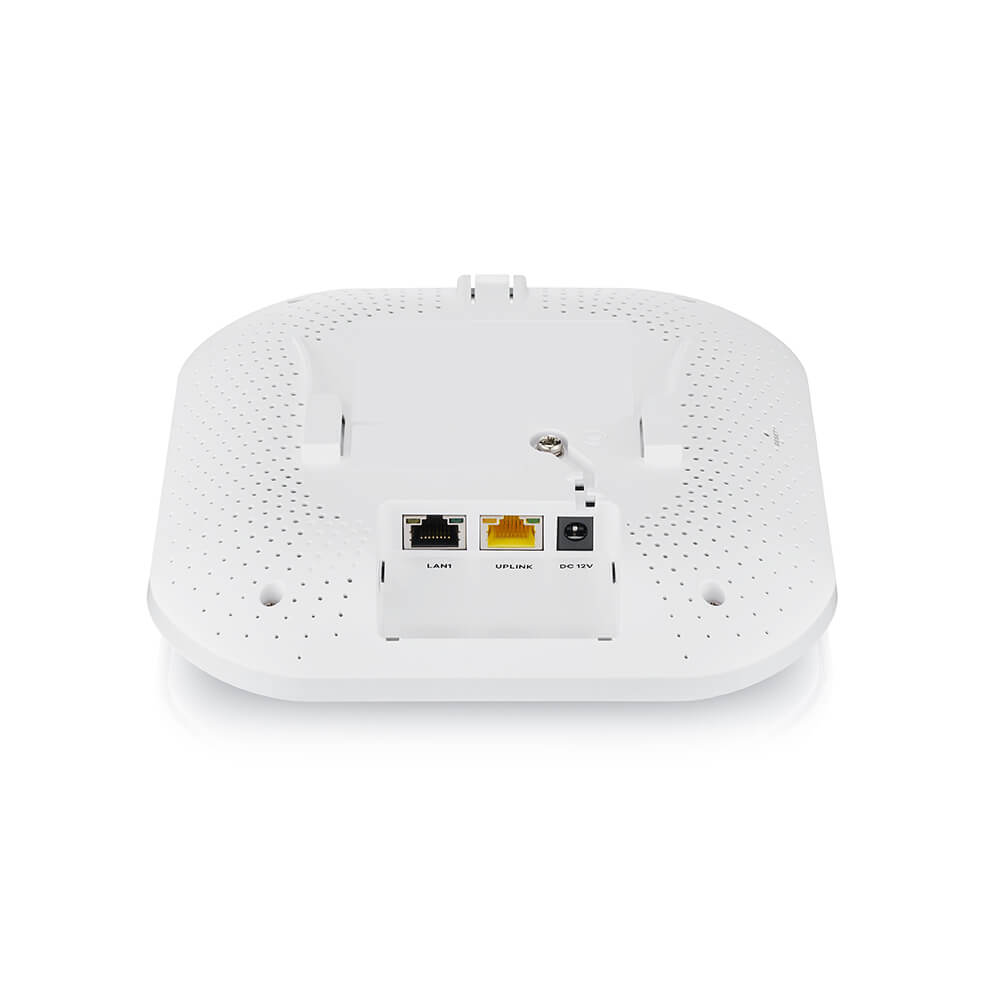

Zyxel NWA210AX 802.11ax (WiFi 6) Dual-Radio PoE Access Point
True WiFi 6 experience for all
The NWA210AX is designed to deliver the true WiFi 6 experience to users for various types of applications. Featuring 6 spatial streams (4x4:4 in 5GHz, 2x2:2 in 2.4GHz ), OFDMA and MU-MIMO capabilities, the NWA210AX can provide fabulous efficiency for your wireless networking.
Product Highlights
• Dual-radio (dual 4x4 + 2x2) 802.11ax AP provides maximum data rate of 2975 Mbps
• OFDMA is arguably the best innovation of WiFi, delivering the highest performance and low latency for all scenarios
• NebulaFlex allows users to switch between standalone or intuitive Nebula cloud managed modes as needed
• Advanced Cellular Coexistence minimizes interferences from 4G/5G cellular networks
• The latest WPA3 security protocol provides safer connectivity
• Next generation beamforming technology delivers maximum coverage
- Wireless: Standard IEEE 802.11 ax/ac/n/g/b/a
- MIMO: MU-MIMO
- Wireless speed: 2.4 GHz 575 Mbps | 5 GHz 2400 Mbps
- Frequency band: 2.4 GHz
- USA (FCC): 2.412 to 2.462 GHz
- Europe (ETSI): 2.412 to 2.472 GHz
- 5 GHz
- USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz
- European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
- Bandwidth: 20-, 40-, 80- and 160-MHz
- Conducted typical transmit output power:
- US (2.4 GHz/5 GHz)
- 23/25 dBm
- EU (2.4 GHz/5 GHz)
- 19/22 dBm
- Antenna type: 4x4 + 2x2 MIMO embedded antenna
- Antenna gain: 2.4 GHz Peak gain 5 dBi | 5 GHz Peak gain 6 dBi
- Minimum receive sensitivity: Min. Rx sensitivity up to -101 dBm
- Band steering: Yes
- WDS/Mesh: Yes (V6.10)
- Fast roaming: Pre-authentication, PMK caching and 802.11r/k/v
- DCS: Yes
- Load balancing: Yes
- EncryptionL WEP/WPA/WPA2-PSK/WPA3
- Authentication: WPA/WPA2-Enterprise/EAP/IEEE 802.1X/RADIUS authentication
- Access management: L2-isolation/MAC filteringa
- IPv6: Yes
- VLANs: Yes
- WMM: Yes
- U-APSD: Yes
- DiffServ marking: Yes
