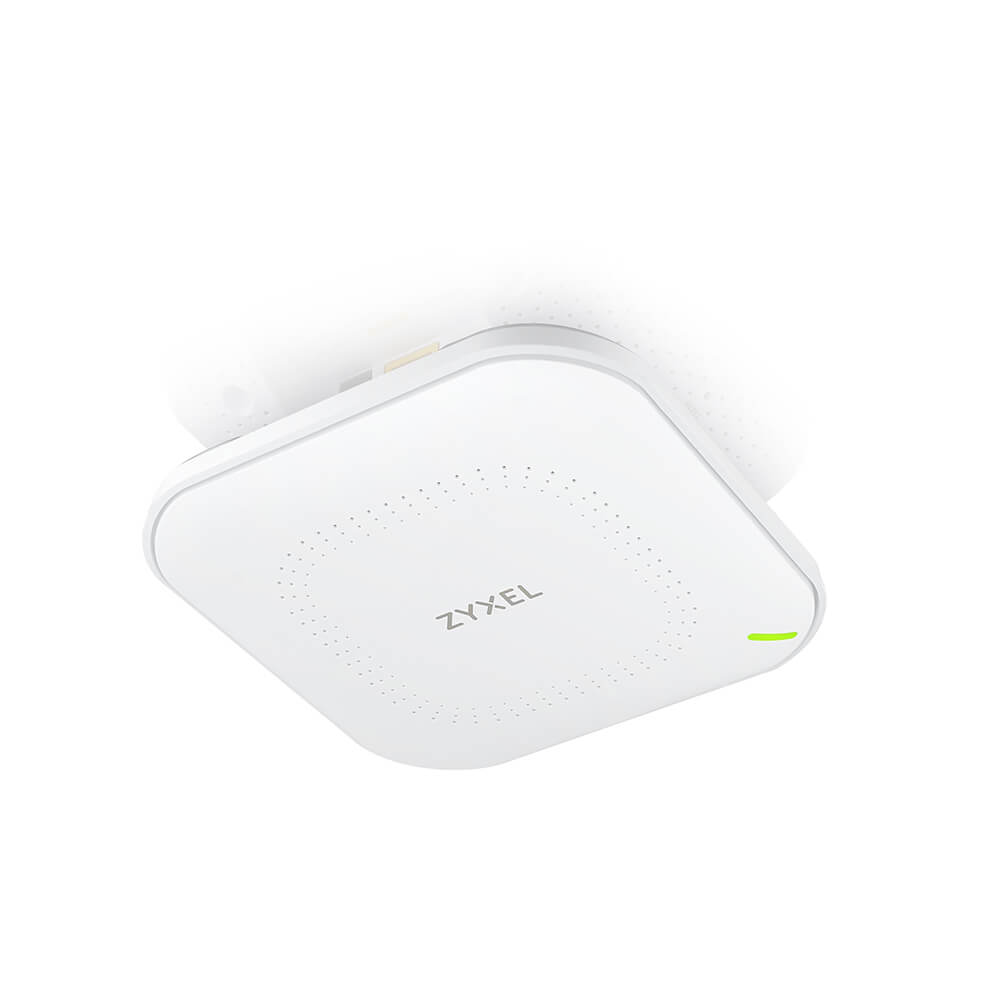

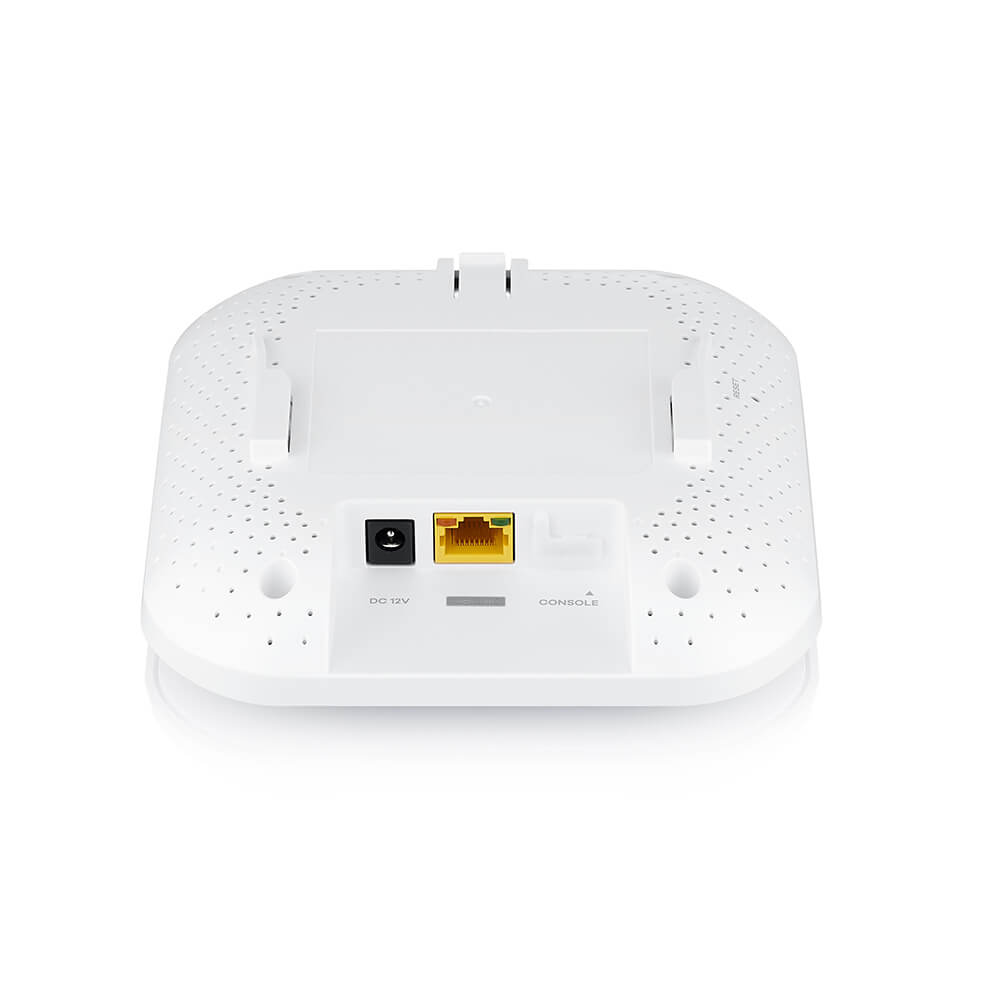

Zyxel NWA1123 ACv3 802.11ac Wave 2 Dual-Radio Ceiling Mount PoE Access Point

NWA1123

The Zyxel NWA1123ACv3 802.11ac Wave 2 Dual-Radio PoE Access Point supports a combined data rate of up to 1.2Gbps. With Zyxel’s innovative design and commitment to “RF First” for high performance and reliable connections through design, the NWA1123ACv3 delivers increased coverage and improved connection speeds for every client.


Product Highlights


•    NebulaFlexTM  gives you the flexibility to switch between standalone and our License Free Nebula cloud management
•    Next generation beamforming technology delivers maximum coverage
•    802.11ac 2x2 Wave 2 — supporting combined data rate of up to 1.2 Gbps
•    Advanced Cellular Coexistence minimizes interferences from 4G/5G cellular networks
•    Robust build quality including solid-state capacitors to ensure long life and operational reliability

Technical Specification
Data Sheet
Inquire Now

•    Wireless: Bandwidth 20-, 40- and 80-MHz
•    Conducted typical transmit output power
•    US (2.4GHz/5GHz) 23/23dBm
•    EU (2.4GHz/5GHz) 19/23dBm
•    Antenna type: 2x2 MIMO Embedded Antenna
•    Antenna gain: 2.4 GHz 3 dBi | 5 GHz 4 dBi
•    Minimum receive sensitivity: up to -99 dBm
•    Band Steering: Yes
•    WDS/ Mesh: Yes
•    Fast roaming: Pre-authentication, PMK caching and 802.11r/k/v
•    DCS: Yes
•    Load balancing: Yes
•    Encryption: WEP/ WPA/WPA2-PSK/WPA3
•    Authentication: WPA/WPA2-Enterprise/ EAP/ IEEE 802.1X/ RADIUS authentication
•    Access management: L2-isolation/ MAC filtering
•    IPv6: Yes
•    VLANs: Yes
•    WMM: Yes
•    U-APSD: Yes
•    DiffServ marking: Yes
