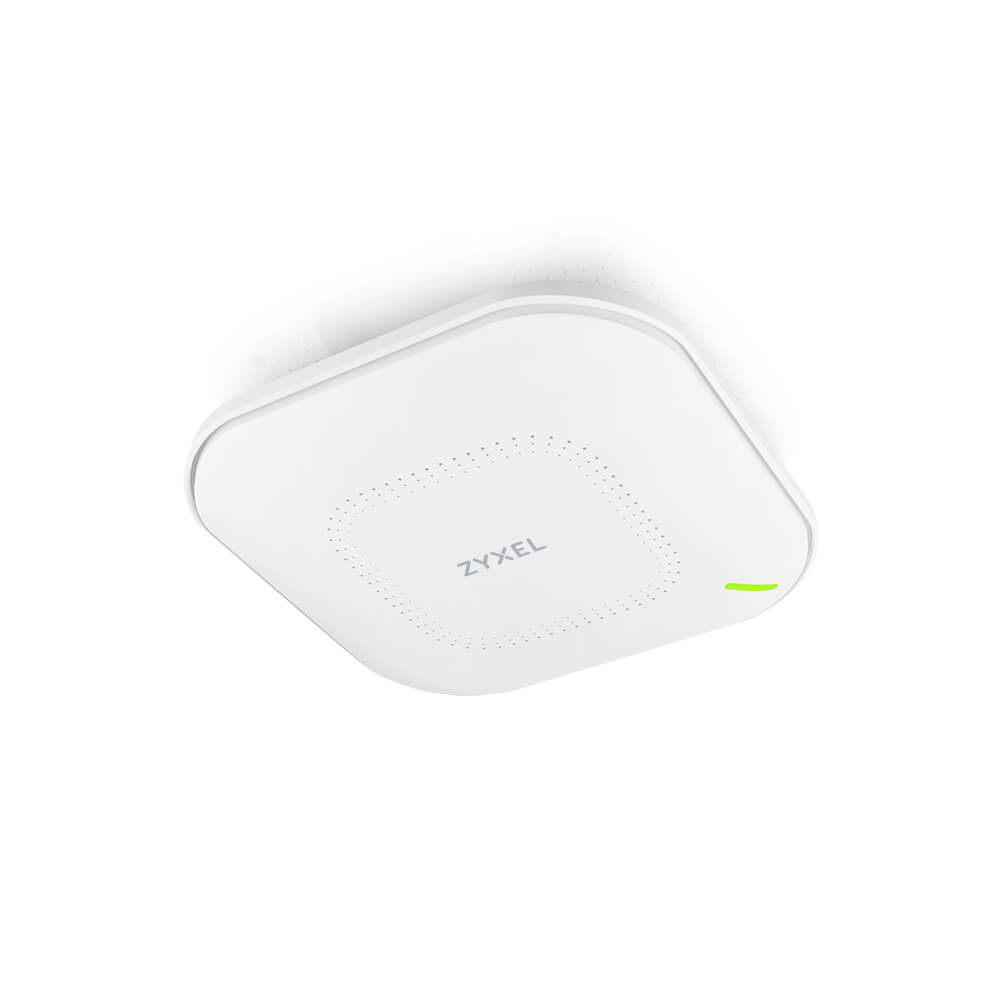

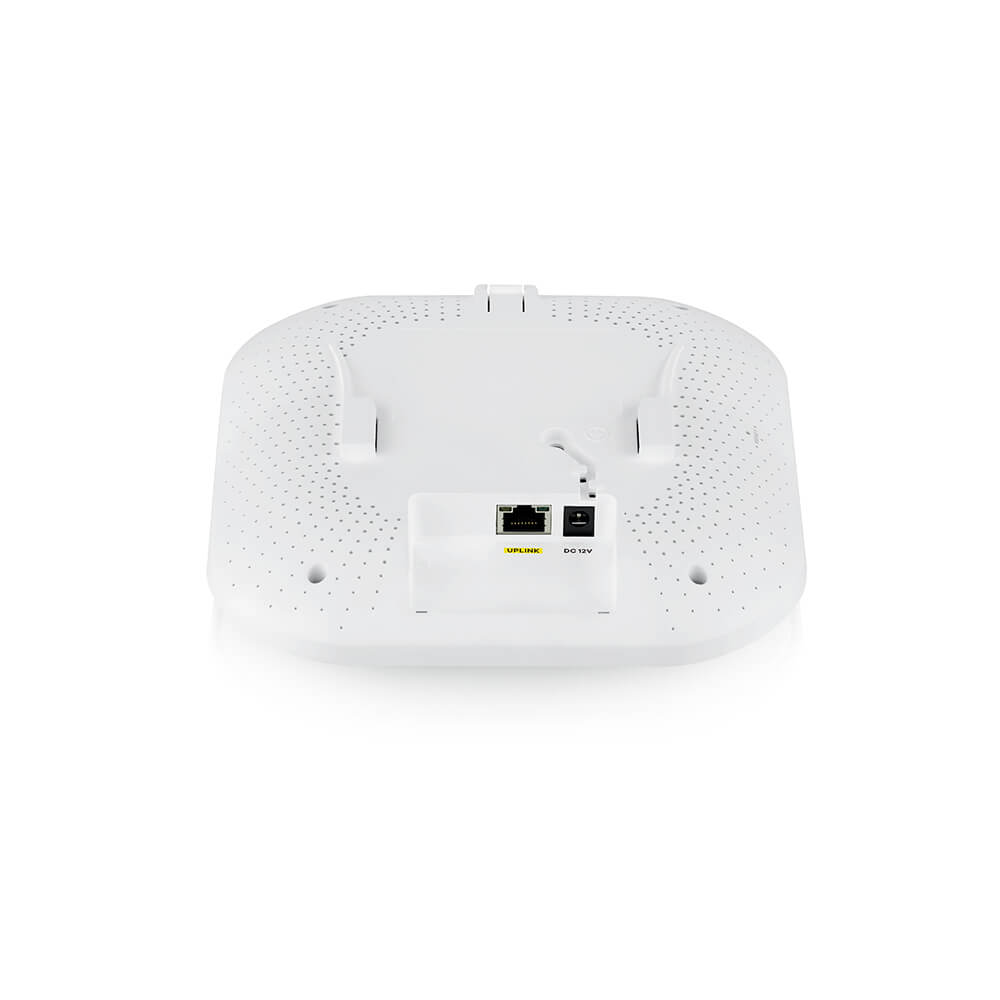

Zyxel NWA110AX 802.11ax (WiFi 6) Dual-Radio PoE Access Point
True WiFi 6
The NWA110AX is truly the next generation of wireless (WiFi 6) AP for businesses looking for a most economical upgrade path to 11ax. Its built-in 2nd Generation WiFi 6 (Qualcomm 802.11ax 2.0) chipset allows the access point to take advantage of the full range of WiFi 6 technologies including uplink OFDMA and MU-MIMO which can’t be found in earlier releases of 802.11ax products.
Product Highlights
- Dual-radio (dual 2x2 MIMO) 802.11ax AP provides maximum data rate of 1775 Mbps
- OFDMA is arguably the best innovation of WiFi, delivering the highest performance and low latency for all scenarios
- NebulaFlex allows users to switch between standalone or intuitive Nebula cloud managed modes as needed
- Advanced Cellular Coexistence minimizes interferences from 4G/5G cellular networks
- The latest WPA3 security protocol provides safer connectivity
- Next generation beamforming technology delivers maximum coverage
• Wireless: Standard IEEE 802.11 ax/ac/n/g/b/a
• MIMO: MU-MIMO
• Wireless speed 2.4 GHz 575 Mbps | 5 GHz 1200 Mbps
• Frequency band: 2.4 GHz
o USA (FCC): 2.412 to 2.462 GHz
o Europe (ETSI): 2.412 to 2.472 GHz
• 5 GHz
o USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz
o European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
• Bandwidth: 20-, 40-, 80-MHz
• Conducted typical transmit output power
• US (2.4 GHz/5 GHz) 23/23 dBm
• EU (2.4 GHz/5 GHz) 20/22 dBm
• Antenna type: 2x2 + 2x2 MIMO embedded antenna
• Antenna gain: 2.4 GHz Peak gain 5 dBi | 5 GHz Peak gain 6 dBi
• Minimum receive sensitivity: Min. Rx sensitivity up to -101 dBm
• Band steering: Yes
• WDS/Mesh: Yes (V6.10)
• Fast roaming: Pre-authentication, PMK caching and 802.11r/k/v
• DCS: Yes
• Load balancing: Yes
• Encryption: WEP/WPA/WPA2-PSK/WPA3
• Authentication: WPA/WPA2/WPA3-Enterprise/EAP/IEEE 802.1X/RADIUS authentication
• Access management: L2-isolation/MAC filtering
• IPv6: Yes
• VLANs: Yes
• WMM: Yes
• U-APSD: Yes
• DiffServ marking: Yes
