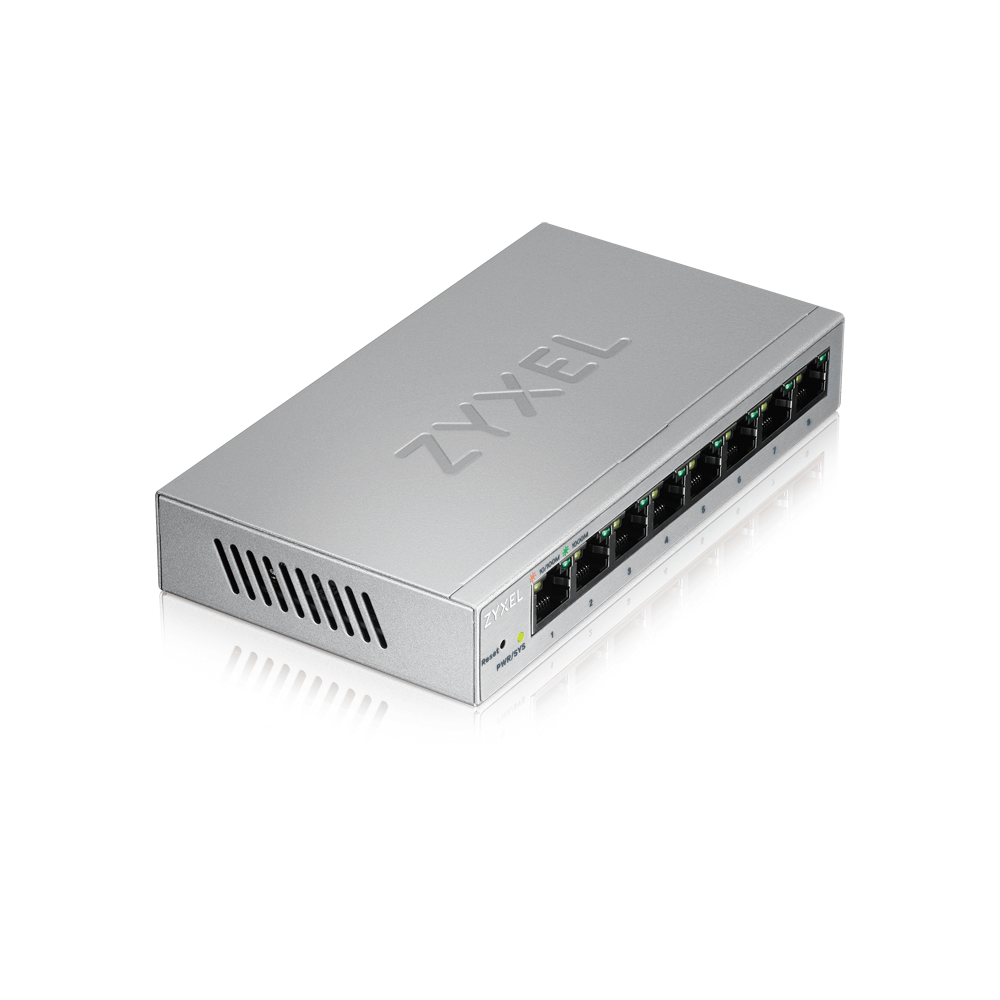

Zyxel GS1200-8 8-Port Web Managed Gigabit Switch

GS1200-8

The Zyxel GS1200-5/GS1200-8 Web Managed Gigabit Switch provides simple control for better management. Unlike other advanced but complex managed switches, the GS1200 series switch is suitable for most users and provides an affordable solution with essential features including VLAN, QoS, IGMP snooping v1/v2 and v3 compatible, link aggregation, and port mirroring

Technical Specification
Data Sheet
Inquire Now

Product Highlights

  • Easy web management
  • Multicast IGMP snooping v1/v2 and v3 compatible for streaming applications
  • Virtual LAN for enhanced network security
  • Quality of Service for better traffic control
  • Link aggregation increases bandwidth between 2 Ethernet ports


Technical Specifications

  • Case: Metal
  • Auto MDI/MDI-X: Yes
  • Store and Forward: Yes
  • Full Duplex Capability: Yes
  • Flow Control: Yes
  • 10/100/1000 Mbps Ethernet Ports: 8
  • 10/100/1000 Mbps Ethernet PoE+ Ports -
  • Switching Capacity: 16 Gbps
  • MAC Address: 4K
  • Memory Buffer: 192 KB
  • Jumbo Frames: Up to 9 KB
  • System Features: Web GUI: Yes:
  • 802.3x Flow Control: Yes
  • 802.1Q VLAN: Yes
  • WRR Priority QoS: Yes
  • Port-based QoS: Yes
  • 802.1p CoS: Yes
  • Broadcast Storm Control: Yes
  • Loop Detection /Prevention: Yes
  • IGMP Snooping v1/v2/and v3 Compatitble: Yes
  • Link Aggregation: Yes
  • Port Mirroring: Yes
  • Green Features: Fanless: Yes
  • Power Saving by Detecting Link Status & Cable Length: Yes
  • Power Input: 100 - 240 V AC, 50/60 Hz
  • Power supply: External
  • Max. power consumption (watt): 4.48
  • Min. power Consumption (watt): 0.424
  • Dimensions (WxDxH): 155x 85 x 26 mm (6.1” x 3.0” x 1.0”)
  • Weight: 325g (0.72 lb.)
  • Dimensions (WxDxH): 161 x 90 x 95 mm (6.3” x 3.5” x3.7”)
  • Weight: 497g (1.10 lb.)
