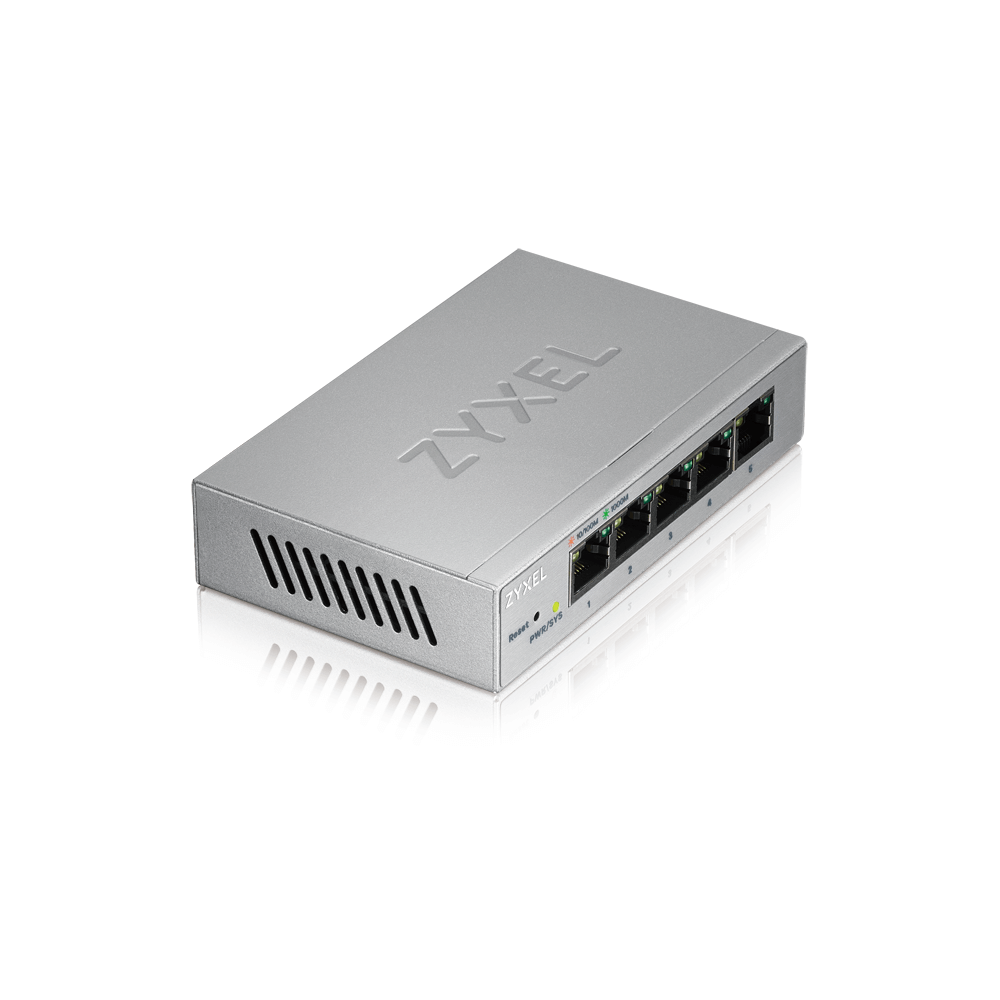

Zyxel GS1200-5 5-Port Web Managed Gigabit Switch
The Zyxel GS1200-5/GS1200-8 Web Managed Gigabit Switch provides simple control for better management. Unlike other advanced but complex managed switches, the GS1200 series switch is suitable for most users and provides an affordable solution with essential features including VLAN, QoS, IGMP snooping v1/v2 and v3 compatible, link aggregation, and port mirroring
Product Highlights
• Easy web management
• Multicast IGMP snooping v1/v2 and v3 compatible for streaming applications
• Virtual LAN for enhanced network security
• Quality of Service for better traffic control
• Link aggregation increases bandwidth between 2 Ethernet ports
Technical Specifications
• Switch housing: Metal
• Auto MDI/MDI-X: Yes
• Store and Forward: Yes
• Full Duplex Capability: Yes
• Flow Control: Yes
• 10/100/1000 Mbps Ethernet Ports :5
• 10/100/1000 Mbps Ethernet PoE+ Ports -
• Switching Capacity: 10 Gbps
• MAC Address: 2K
• Memory Buffer: 128 KB
• Jumbo Frames: Up to 9 KB
• Web GUI: Yes
• 802.3x Flow Control: Yes
• 802.1Q VLAN: Yes
• WRR Priority QoS: Yes
• Port-based QoS: Yes
• 802.1p CoS: Yes
• Broadcast Storm Control: Yes
• Loop Detection /Prevention: Yes
• IGMP Snooping v1/v2/and v3 Compatitble: Yes
• Link Aggregation: Yes
• Port Mirroring: Yes
• Fanless: Yes
• Power Saving by Detecting Link Status & Cable Length: Yes
• Power Input: 100 - 240 V AC, 50/60 Hz
• Power supply: External
• Max. power consumption (watt): 2.67
• Min. power consumption (watt): 0.323
• Physical Specifications
• Dimensions (WxDxH): 121x 75 x 26mm (4.8” x 3.0” x 1.0”)
• Weight: 233g (0.51 lb.)
