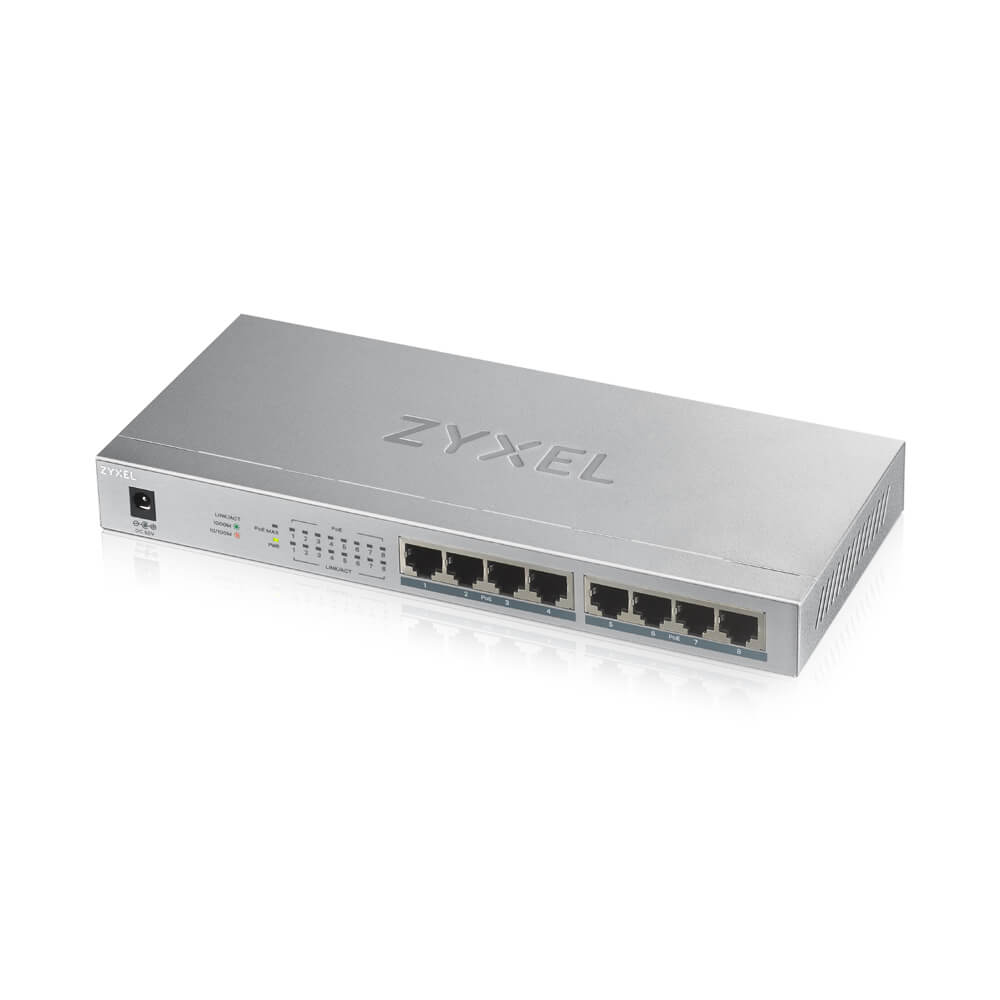

Zyxel GS1008HP 8-port Gigabit Unmanaged PoE+ Switch
The Zyxel GS1005HP/GS1008HP GbE Unmanaged PoE Switch is equipped with 5 or 8 Gigabit Ethernet ports, 4 of which are PoE ports that can deliver up to 60 w of total PoE budget. The GS1005HP/1008HP can easily connect with PoE ready devices to your network with plug-and-play design and provides power-saving benefits without compromising performance. The GS1005HP/1008HP fills a long-standing hole in the market for unmanaged PoE switches that feature the 802.3at standard, have a high power budget and are affordable for SOHOs and small businesses.
Product Highlights
• 60 watts of total output on 4/8 Gigabit PoE+ ports
• LED indicators for PoE budget management
• Fast Gigabit connection
• Advanced energy-savings
Technical Specifications
Switch housing
• Metal
Interface
• 8 RJ-45 10/100/1000 Mbps Ethernet ports with auto MDI/MDIX support
PoE Ports (RJ45)
• Standard: 802.3af and 802.3at compliant
• 8 PoE+ ports, up to 30W per port
• Total PoE Budget : 60W
LED Indicator
• PWR: Power
• PoE MAX:
o Amber: PoE power output over 50W (total budget 60W)
• Per port: Link/Activity
o Amber: 10/100 Mbps
o Green: 1000 Mbps
• Per port : PoE+
o Green: PoE supported
Power Supply
• AC-to-DC external power adapter
• Input: 100-240 V AC, 50/60 Hz
Power Consumption
• Max. power consumption (watt): 78.69
• Min. power Consumption (watt): 1.54
Standard
• IEEE 802.3 10BASE-T Ethernet
• IEEE 802.3u 100BASE-TX Fast Ethernet
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet
• IEEE 802.3 Nway auto-negotiation
• IEEE 802.3x full duplex operation and flow control
• IEEE 802.3az Energy Efficient Ethernet
Performance
• Data transfer rate (half duplex/full duplex):
o Ethernet: 10/20 Mbps
o Fast Ethernet: 100/200 Mbps
o Gigabit Ethernet: 1000/2000 Mbps
• MAC address table: 4 K
• Memory buffer: 192 KB
• Switching fabric (non-blocking): 16 Gbps
Features
• Compatible With IEEE 802.3af and 802.at Compliant PDs
• Auto-MDI/MDIX in all ports
• EEE802.3x Flow Control
• IEEE 802.1p QoS
• Jumbo frame support up to 9 KB
• Item dimensions (WxDxH): 240 x 105 x 26 mm (9.45"x4.13"1.02")
• Item weight: 610g ( 1.34 lb.)
• Packing dimensions (WxDxH): 256 x 132 x 78 mm (10.08"x5.20"x3.07")
• Packing weight: 1260 g (2.78 lb.)
