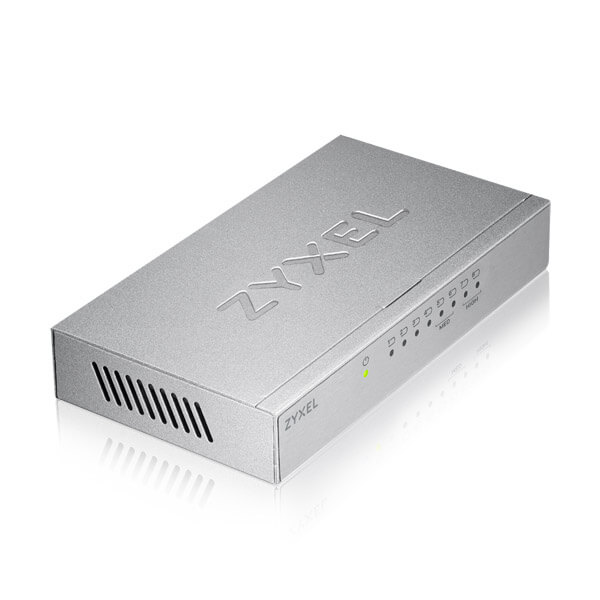

Zyxel GS-108Bv3 8-Port Gigabit Desktop
GS-108Bv3
The Zyxel GS-105B v3/GS-108B v3 5/8-Port Desktop Gigabit Ethernet Switch connects network devices and the home network at blazing Gigabit speed. The QoS ports guarantee smooth transfer for bandwidth-intensive applications such as VoIP and data communications.
Product Highlights
- Compact, sturdy desktop switch with alternative wall-mount installation
- Connect up to 5/8 network devices at Gigabit wire speed
- QoS ports for optimized, smooth VoIP and data transfer of high- and medium- priority applications
- Bi-color LED indicators for Ethernet port status
- Green switch for energy sav
Technical Specifications
- Switch housing
- Metal
- Interface
- Eight RJ-45 10/100/1000 Mbps Ethernet ports with auto MDI/MDIX support
- QoS Ports
- Two high-priority QoS ports and two medium-priority QoS ports
- LED Indicator
- PWR: Power
- Per port: Link/Activity
- Amber: 10/100 Mbps
- Green: 1000 Mbps
- Power Supply
- Input: 100-240 V AC
- Output: 5 V DC, 1 A
- Power consumption: 3.0 watt max.
- Standard
- IEEE 802.3 10BASE-T Ethernet
- IEEE 802.3u 100BASE-TX Fast Ethernet
- IEEE 802.3ab 1000BASE-T Gigabit Ethernet
- IEEE 802.3 Nway auto-negotiation
- IEEE 802.3x full duplex operation and flow control
- IEEE 802.3az Energy Efficient Ethernet
- Performance
- Data transfer rate (half duplex/full duplex):
- Ethernet: 10/20 Mbps
- Fast Ethernet: 100/200 Mbps
- Gigabit Ethernet: 1000/2000 Mbps
- MAC address table: 4 K
- Memory buffer: 128 KB
- Switching fabric (non-blocking): 16 Gbps
- Features
- Auto-MDI/MDIX in all ports
- Transmission method: Store-and-forward architecture
- Port-based QoS support
- Jumbo frame support up to 9 KB
- Item dimensions (WxDxH): 155 x 85 x 26 mm (6.1" x 3.3" x 1.0")
- Item weight: 325 g (0.72 lb.)
- Packing dimensions (WxDxH): 161 x 90 x 95 mm (6.3" x 3.5" x 3.7")
Packing weight: 493 g (1.09 lb
