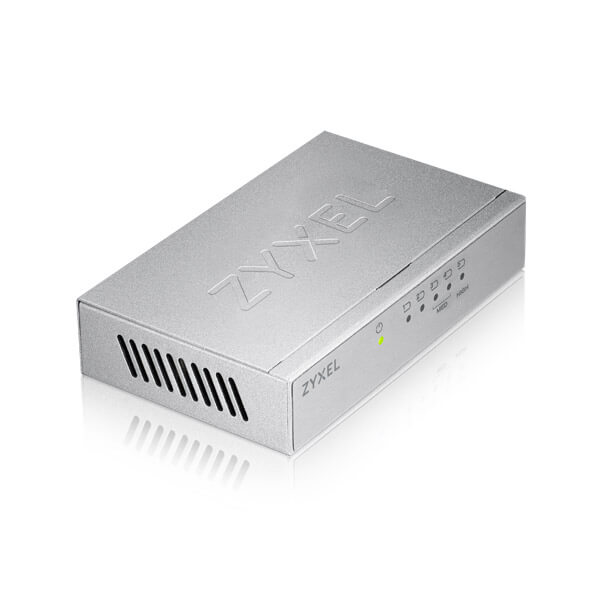

Zyxel GS-105Bv3 5-Port Gigabit Desktop Switch
The Zyxel GS-105B v3/GS-108B v3 5/8-Port Desktop Gigabit Ethernet Switch connects network devices and the home network at blazing Gigabit speed. The QoS ports guarantee smooth transfer for bandwidth-intensive applications such as VoIP and data communications.
Product Highlights
• Compact, sturdy desktop switch with alternative wall-mount installation
• Connect up to 5/8 network devices at Gigabit wire speed
• QoS ports for optimized, smooth VoIP and data transfer of high- and medium- priority applications
• Bi-color LED indicators for Ethernet port status
• Green switch for energy saving
Technical Specifications
• Switch housing
o Metal
• Interface
o Five RJ-45 10/100/1000 Mbps Ethernet ports with auto MDI/MDIX support
• QoS Ports
o One high-priority QoS port and two medium-priority QoS ports
• LED Indicator
o PWR: Power
o Per port: Link/Activity
o Amber: 10/100 Mbps
o Green: 1000 Mbps
• Power Supply
o Input: 100-240 V AC
o Output: 5 V DC, 1 A
• Power consumption: 2.5 watt max.
• Standard
o IEEE 802.3 10BASE-T Ethernet
o IEEE 802.3u 100BASE-TX Fast Ethernet
o IEEE 802.3ab 1000BASE-T Gigabit Ethernet
o IEEE 802.3 Nway auto-negotiation
o IEEE 802.3x full duplex operation and flow control
o IEEE 802.3az Energy Efficient Ethernet
• Performance
o Data transfer rate (half duplex/full duplex):
o Ethernet: 10/20 Mbps
o Fast Ethernet: 100/200 Mbps
o Gigabit Ethernet: 1000/2000 Mbps
o MAC address table: 2 K
o Memory buffer: 128 KB
o Switching fabric (non-blocking): 10 Gbps
• Features
o Auto-MDI/MDIX in all ports
o Transmission method: Store-and-forward architecture
o Port-based QoS support
o Jumbo frame support up to 9 KB
• Item dimensions (WxDxH): 121 x 75 x 26 mm (4.8" x 3.0" x 1.0")
• Item weight: 229 g (0.50 lb.)
• Packing dimensions (WxDxH): 127 x 82 x 95 mm (5.0" x 3.2" x 3.7")
• Packing weight: 381 g (0.84 lb.)
