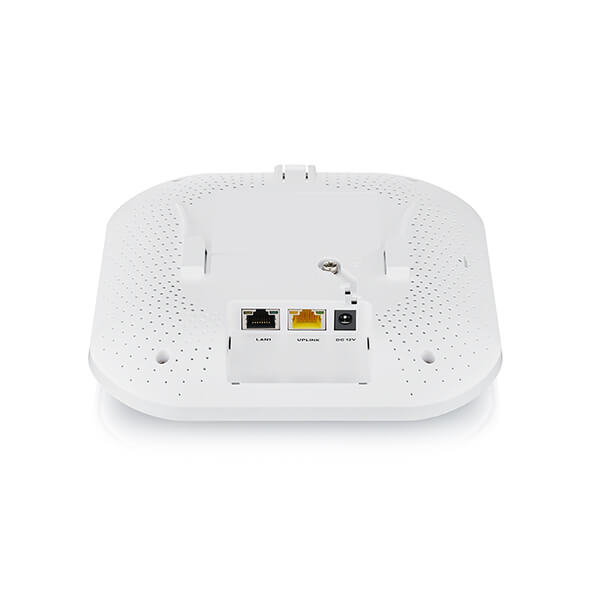

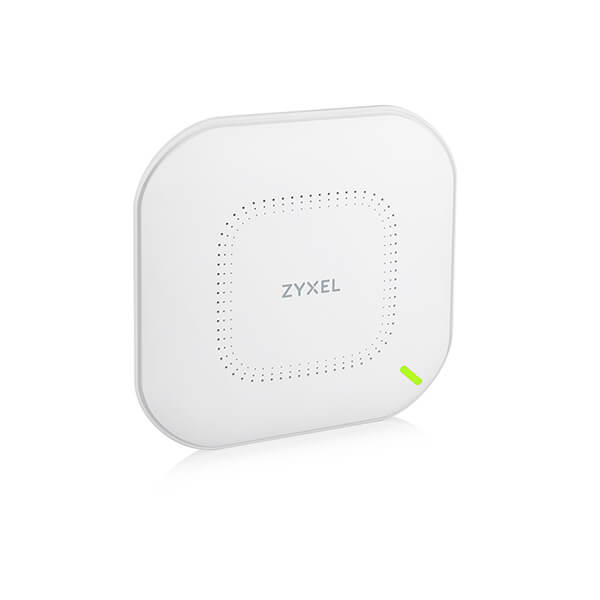

Zyxel AX3000 WiFi 6 Dual-Radio NebulaFlex Pro Access Point WAX630S

WAX630S

Ultra-fast, Smarter WiFi 6 Access Point

Featuring 6 spatial streams (4x4:4 in 5GHz, 2x2:2 in 2.4GHz ), OFDMA and MU-MIMO capabilities, the Zyxel WAX630S is the true WiFi 6 access point that provides ultra-fast speed and consistent performance for your wireless network.


Product Highlights


  • Dual-radio (dual 4x4+2x2 MIMO) 802.11ax AP provides maximum data rate of 2975 Mbps
  • Smart antenna is the proven technology that can mitigate interference and boost WiFi 6 performance
  • Coupled the capacity with Zyxel XS1930 Series switches, the 2.5GbE uplink delivers uncompromising multigigabit speed without the need of re-cabling
  • NebulaFlex Pro allows users to switch among standalone, on premises controller managed or intuitive Nebula cloud managed modes as needed
  • Advanced Cellular Coexistence minimizes interferences from 4G/5G cellular networks
Technical Specification
Data Sheet
Inquire Now
  • Standard: IEEE 802.11 ax/ac/n/g/b/a
  • MIMO: MU-MIMO
  • Wireless speed: 2.4 GHz 575 Mbps | 5 GHz 2400 Mbps
  • Frequency band: 2.4 GHz • USA (FCC): 2.412 to 2.462 GHz • Europe (ETSI): 2.412 to 2.472 GHz
  • 5 GHz • USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz • European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
  • Bandwidth: 20-, 40-, 80- and 160-MHz
  • Conducted typical transmit: output power*1 (limited by local regulatory requirements)
  • US: (2.4 GHz/5 GHz) 23/28 dBm
  • EU: (2.4 GHz/5 GHz) | 19/25 dBm
  • RF Design: Antenna type 4x4 + 2x2 smart antenna
  • Antenna gain:  2.4 GHz Peak gain 3 dBi | 5 GHz Peak gain 4.5 dBi
  • Minimum receive sensitivity: Min. Rx sensitivity up to -101 dBm
  • Band steering: Yes
  • WDS/Mesh*2: Yes
  • Fast roaming: Pre-authentication, PMK caching and 802.11r/k/v
  • DCS: Yes
  • Load balancing: Yes
  • *1: Conducted typical transmit output power excludes antenna gain. For total (EIRP) transmit power, add antenna gain.
  • *2: WDS, ZyMesh, Smart Mesh and Industry’s Open Mesh, Easy Mesh are different mesh systems that do not work with one another.
  • Encryption: WEP/WPA/WPA2-PSK/WPA3
  • Authentication: WPA/WPA2/WPA3-Enterprise/EAP/IEEE 802.1X/RADIUS authentication
  • Access management: L2-isolation/MAC filtering/Rogue AP detection
  • IPv6: Yes
  • VLANs: Yes
  • WMM: Yes
  • U-APSD: Yes
  • Web UI/CLI: Yes
  • SNMP: Yes
  • Dimensions (WxDxH)(mm/in.): 180 x 180 x 39/7.09 x 7.09 x 1.54
  • Weight (g/lb.) 530/1.17
  • Packing Dimensions (WxDxH)(mm/in.): 228 x 216 x 63/8.98 x 8.5 x 2.48
  • Weight:  (g/lb.) 765/1.69
