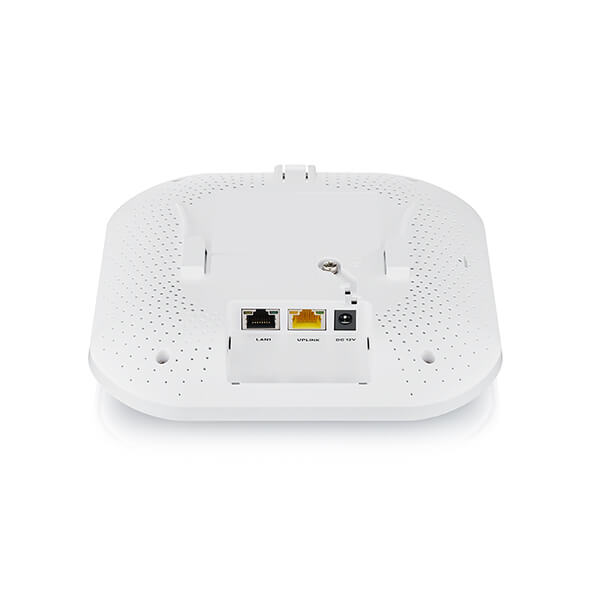

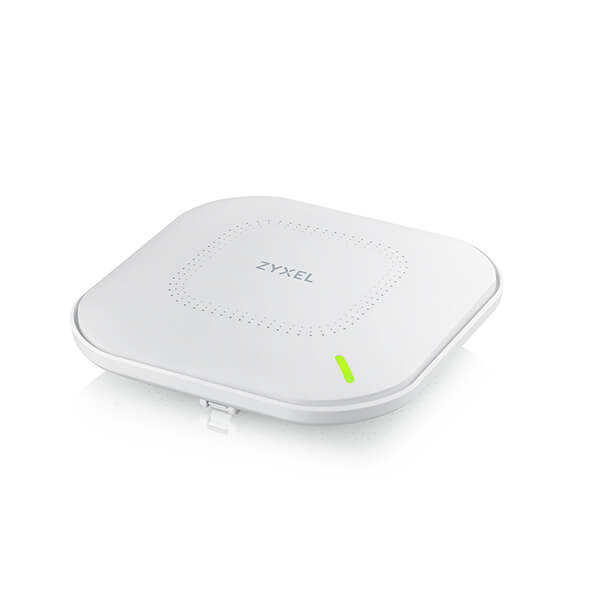

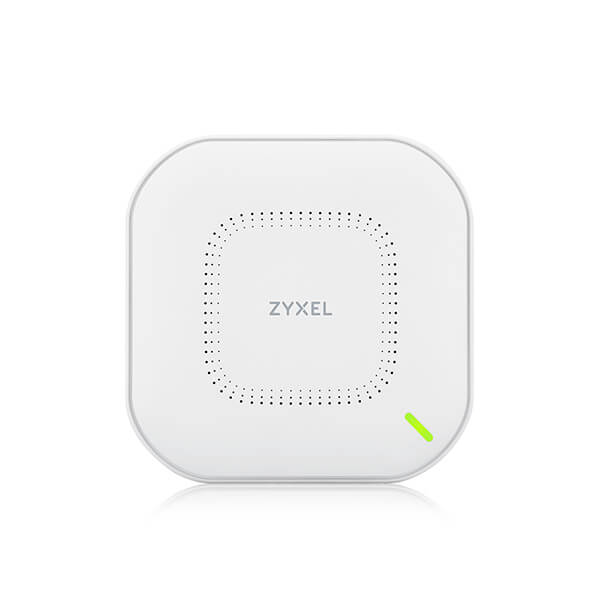

Zyxel AX3000 WiFi 6 Dual-Radio NebulaFlex Access Point NWA210AX

NWA210AX

Product Highlights


  • Smart fan and fanless design offer near silent operations in both desktop and rack-mount environment
  • Easy setup with ZON utility and management through Intuitive web-based interface and wizard
  • Manage advanced features easily through user-friendly web interface
  • Supports PoE+ with 30 W/port and default consumption mode to power more devices



Technical Specifications

  • Standard: IEEE 802.11 ax/ac/n/g/b/a
  • MIMO: MU-MIMO
  • Wireless speed: 2.4 GHz 575 Mbps | 5 GHz 2400 Mbps
  • Frequency band: 2.4 GHz • USA (FCC): 2.412 to 2.462 GHz
  • Europe (ETSI): 2.412 to 2.472 GHz
  • 5 GHz • USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz
  • European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
  • Bandwidth: 20-, 40-, 80- and 160-MHz
  • Conducted typical transmit: output power*1
  • (limited by local regulatory requirements)
  • US
  • (2.4 GHz/5 GHz)
  • 23/25 dBm
  • EU
  • (2.4 GHz/5 GHz)
  • 19/22 dBm
  • Antenna type: 4x4 + 2x2 MIMO embedded antenna
  • Antenna gain: 2.4 GHz Peak gain 5 dBi |5 GHz Peak gain 6 dBi
  • Minimum receive sensitivity: Min. Rx sensitivity up to -101 dBm
  • Band steering: Yes
  • WDS/Mesh*2: Yes (V6.10)
  • Fast roaming: Pre-authentication, PMK caching and 802.11r/k/v
  • DCS: Yes
  • Load balancing: Yes
  • Encryption: WEP/WPA/WPA2-PSK/WPA3
  • Authentication: WPA/WPA2-Enterprise/EAP/IEEE 802.1X/RADIUS authentication
  • Access management: L2-isolation/MAC filtering
  • IPv6: Yes
  • VLANs:  Yes
  • WMM: Yes
  • U-APSD: Yes
  • DiffServ marking: Yes
  • Dimensions (WxDxH)(mm/in.): 180 x 180 x 39/7.09 x 7.09 x 1.54
  • Weight (g/lb.):  545/1.20



Technical Specification
Data Sheet
Inquire Now

The NWA210AX is truly the next generation of wireless (WiFi 6) AP, especially for businesses looking to strike the right balance between performance and budget. It embodies the full range of WiFi 6 technologies including UL/DL, OFDMA, MU-MIMO, and 1024 QAM, which enables the ultra-fast speed of 2975 Mbps. The NWA210AX 4x4 (5G) + 2x2 (2.4G) antenna design boasts the most effective solution to guarantee that it provides smooth and consistently fast service to each client at all times.
