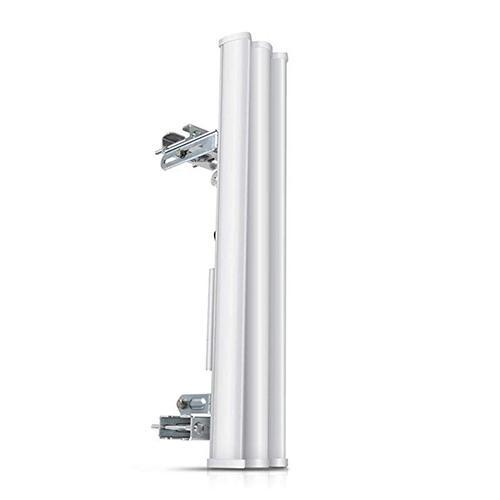

Ubiquti airMAX Sector Antenna AM‑5G19‑120
airMAX® 2x2 BaseStation Sector Antenna
Pair the airMAX® Sector Antenna with a Rocket™M BaseStation for sector coverage in Point-to-MultiPoint (PtMP) networks. The airMAX® Sector Antenna is a carrier-class 2x2 dual-polarity MIMO sector antenna that was designed to seamlessly integrate with Rocket radios
Product Highlights
• Reduced Interference, Higher Gain
• RF Isolation and Beamwidth Options
• Industrial-Strength Construction
• High Performance, Long Range
• Seamlessly Integrates with Rocket® Radio
• Excellent Cross-Polarization Isolation
• Dimensions: 700 x 135 x 73 mm
• Weight: 5.9 kg
• Frequency Range: 5.15 - 5.85 GHz
• Gain: 18.6 - 19.1 dB
• HPOL Beamwidth: 123° (6 dB)
• VPOL Beamwidth: 123° (6 dB)
• Electrical Beamwidth: 4°
• Electrical Downtilt: 2°
• Polarization: Dual-Linear
• Cross-pol Isolation: 22 dB Min
• ETSI Specification: EN 302 326 DN2
• Mounting: Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
