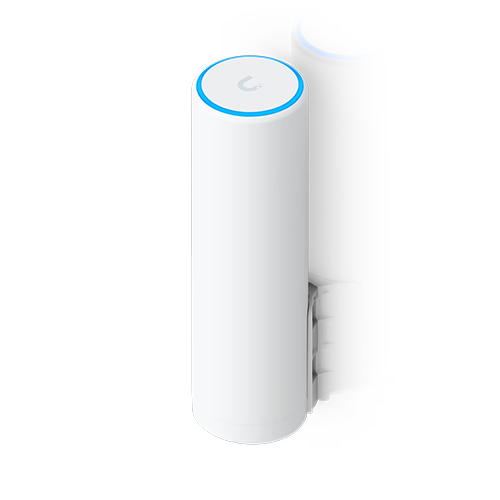

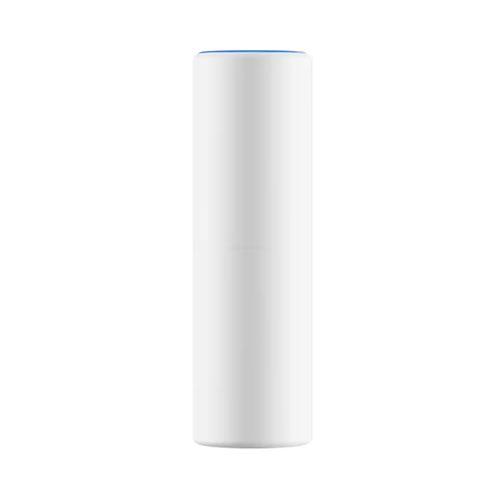

Ubiquiti UniFi WiFi U7 Mesh

U7-Mesh

Compact indoor/outdoor WiFi 7 AP with integrated long-range antenna system.

Technical Specification
Data Sheet
Inquire Now

Dimensions
⌀48.5 x 159.5 mm (⌀1.9 x 6.3")
WiFi Standard
WiFi 7
Spatial Streams
4
Coverage Area
140 m² (1,500 ft²)
Max. Client Count
200+
Uplink
2.5 GbE

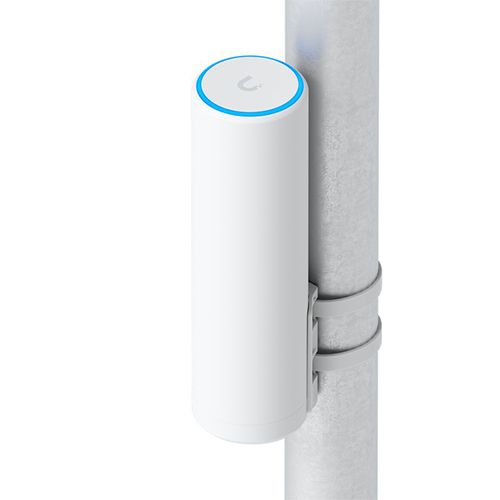

Mounting
Wall, Pole, Table stand (Mounts included)
Weatherproofing
IPX6 (Installed with the outdoor mount)
Power Method
PoE

Performance
MIMO

5 GHz
2 x 2 (DL/UL MU-MIMO)
2.4 GHz
2 x 2 (DL/UL MU-MIMO)
Max. Data Rate

5 GHz
4.3 Gbps (BW240)

2.4 GHz
688 Mbps (BW40)
Antenna Gain

5 GHz
Omnidirectional: 6 dBi Directional: 10 dBi
2.4 GHz
3 dBi
Max. TX Power

5 GHz
24 dBm
2.4 GHz
23 dBm
Max. BSSIDs
8 per Radio
Supported Data Rates

802.11be (WiFi 7)
7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
802.11ax (WiFi 6)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

Features
Wireless Meshing
✓
Band Steering
✓
802.11v BSS Transition Management
✓
802.11r Fast Roaming
✓
802.11k Radio Resource Management (RRM)
✓
Advanced Radio Management
✓
Passpoint (Hotspot 2.0)
✓
Captive Hotspot Portal

Custom Branding Landing Page
✓
Voucher Authentication
✓
Payment-Based Authentication
✓
External Portal Server Support
✓
Password Authentication
✓
Guest Network Isolation
✓
Private Pre-Shared Key (PPSK)
✓
WiFi Speed Limiting
✓
Client Device Isolation
✓
WiFi Schedules
✓
RADIUS over TLS (RadSec)
✓
Dynamic RADIUS-assigned VLAN
✓

Hardware
Max. Power Consumption
13W
Includes PoE Adapter
✓
Supported Voltage Range
42.5–57V DC
Networking Interface
(1) 2.5 GbE RJ45 port
Weight
313 g (11 oz)
Management
Ethernet
Enclosure Material
UV-stabilized polycarbonate
Mount Material
UV-stabilized polycarbonate
LEDs

System
W/B
Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)
NDAA Compliant
✓
Certifications
CE, FCC, IC
Ambient Operating Temperature
-30 to 60° C (-22 to 140° F)
Ambient Operating Humidity
5 to 95% noncondensing

Software
Application Requirements

UniFi Network
Version 10.1.85 and later
Mobile App
UniFi iOS™: Version 10.32.1 and later Android™: Version 10.35.1 and later
