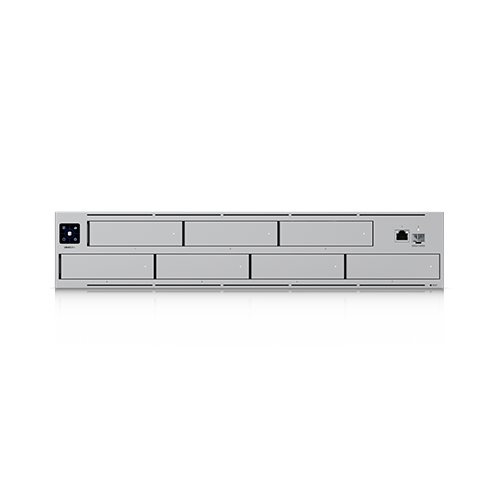

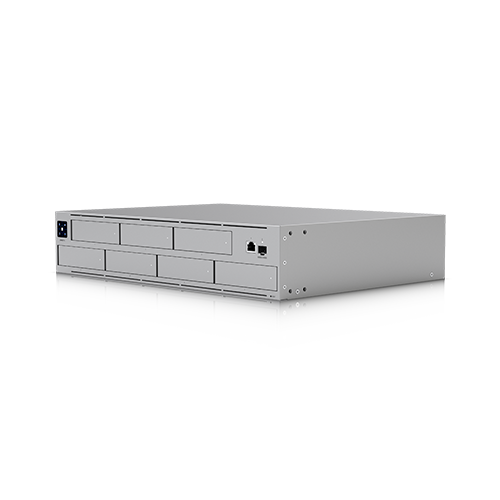

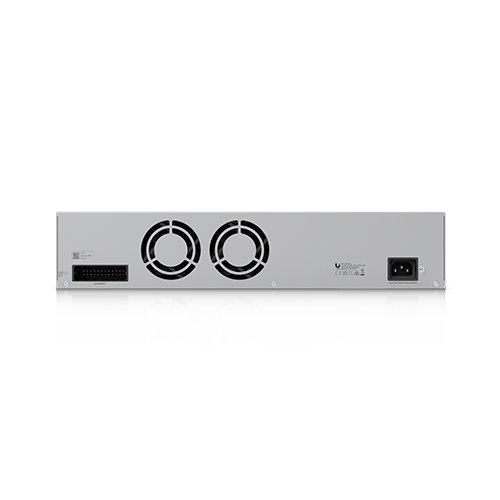

Ubiquiti UniFi UNAS Pro

UNAS-Pro

2U rack-mount NAS with (7) 2.5/3.5" drive bays and 10 Gbps performance designed for large-scale file storage and sharing.

Technical Specification
Data Sheet
Inquire Now

Dimensions
442.4 x 325 x 87.4 mm (17.4 x 12.8 x 3.4")
Storage Capacity
(7) 3.5" drive bays
Networking Interface
(1) 10G SFP+ (10G/1G) (1) GbE RJ45 (1G/100M/10M)
Power Redundancy
✓

Form Factor
Rack mount (2U)

Hardware
Hard Drive Capacity
(7) 2.5/3.5" HDD / SSD support
Max. Power Budget for Drives
135W
Max. Power Consumption
160W
Power Method
(1) Universal AC input, 100—240V AC, 3A Max., 50/60 Hz (1) USP-RPS DC input, 11.5V DC, 13.91A
Power Supply
AC/DC, internal, 200W
Processor
Quad-Core ARM® Cortex®-A57 at 1.7 GHz
Memory
8 GB
Management
Ethernet
RF Interface
Bluetooth 4.1
Display
1.3" touchscreen
Weight
Without mounting brackets: 9.2 kg (20.3 lb) With mounting brackets: 9.5 kg (20.8 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel
LEDs

Ethernet
✓
SFP+
✓
HDD
✓
RPS
✓
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
✓
Certifications
FCC, CE, IC, Anatel: 01886-25-08356

Software
Application Requirements

UniFi Drive
Version 1.16.0 and later
Supported File Protocols

NFS
✓
SMB
✓
Supported features on unifi.ui.com

RAID Type
RAID 5 RAID 6 RAID 10
RAID Group
Multiple
Hot Spare Support
✓

Personal Drive & Shared Drive


✓
File Encryption
✓
Backup to Remote UNAS
✓
Backup to CIFS/SMB Server
✓
Backup to Cloud Services (Google Drive, OneDrive, Dropbox, Amazon S3, Backblaze B2, Wasabi)
✓

Snapshots


✓

Share Links


✓

Time Machine Backup


✓

Client App Support


✓

User Groups


✓
