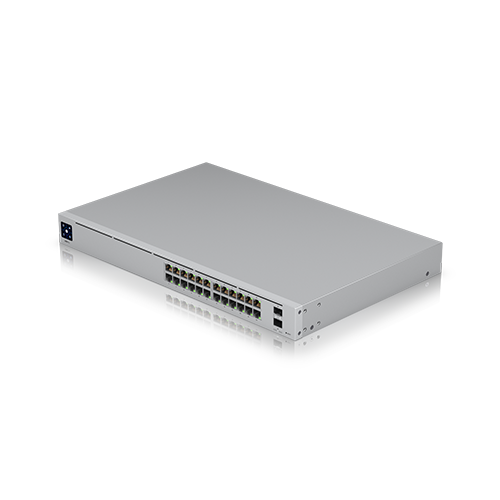

Ubiquiti UniFi Switch PRO 24

USW-Pro-24

UniFi Switch Pro 24 is a fully managed Layer 3 switch with (24) Gigabit Ethernet ports. (2) 10G SFP+ uplinks offer link aggregation for higher capacity and increased availability. The UniFi Switch Pro 24 features a rich set of Layer 2 capabilities and integrates Layer 3 functionality such as inter-VLAN routing, static routing, and DHCP server. The UniFi Switch Pro 24 is an ideal aggregation and access layer switch for any UniFi solution – it combines innovative near-silent cooling with UniFi SmartPower RPS power redundancy. UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.

•    (24) Gigabit RJ45 ports
•    (2) 10G SFP+ ports
•    Layer 2 and Layer 3* features
•    UniFi SmartPower RPS DC input
•    Near-silent cooling
•    1.3" touchscreen display
•    Managed by UniFi Network Controller



Technical Specification
Data Sheet
Inquire Now

Dimensions
442 x 285 x 44 mm (17.4 x 11.2 x 1.7")
Port Layout

1 GbE RJ45
24 (1G/100M/10M)
10G SFP+
2 (10G/1G)
Redundancy
DC Power Backup

Layer 3
✓
Form Factor
Rack mount (1U)

Performance
Switching Capacity
88 Gbps
Total Non-Blocking Throughput
44 Gbps
Forwarding Rate
65 Mpps
Supported VLANs
1,000
MAC Address Table Size
16,000
L3 Table Size

ARP Entries
768
IPv4 Routes
64
Packet Buffer Size
2 MB
Access Lists

IPv4
128
MAC
128

Layer 3 Features
DHCP Server (Local Networks)
✓
DHCP Relay
✓
Inter-VLAN Routing (Local Networks)
✓
Static Routing (Local Networks)
✓

Layer 2 Features
LACP Port Aggregation
✓
STP & RSTP
✓
QoS (DSCP)
✓
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
✓
IGMP Snooping
✓
802.1X Control
✓
MAC-Based ACLs & Device Isolation
✓
DHCP Snooping & Guarding
✓
Egress Rate Limit
✓
Flow Control
✓
Storm Control
✓
Multicast & Broadcast Rate Limiting
✓
MAC Address Blocking
✓
IP-Based ACLs & Network Isolation
✓
MAC-Based Port Restriction
✓
Port Isolation
✓
Port Mirroring
✓
Jumbo Frames
✓
LLDP-MED
✓
Voice VLAN
✓
Loop Protection
✓
Virtual Network Override
✓

Hardware
Max. Power Consumption
30W
Power Method
(1) Universal input, 100—240V AC, 50/60 Hz (1) USP RPS DC input
Power Input Method
AC input
Power Supply
AC/DC, internal, 36W
Supported Voltage Range
100—240V AC
Management
Ethernet AR
Heat Dissipation
102.4 BTU/hr
Weight
Without mounting brackets: 3.5 kg (7.7 lb) With mounting brackets: 3.6 kg (7.9 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel
Supported Rack Depth
400~1200 mm (15.7-47.2")
LCM Display
1.3" touchscreen
ESD Protection
Air: ± 16kV, contact: ± 12kV
Ambient Operating Temperature
-5 to 45° C (23 to 113° F)
Ambient Operating Humidity
10 to 90% noncondensing
NDAA Compliant
✓
Certifications
CE, FCC, IC, Anatel: 00469-21-08356

Software
Application Requirements

UniFi Network
Version 5.12.11 and later
