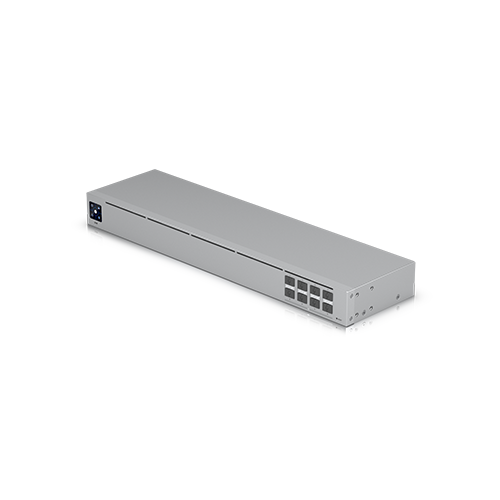

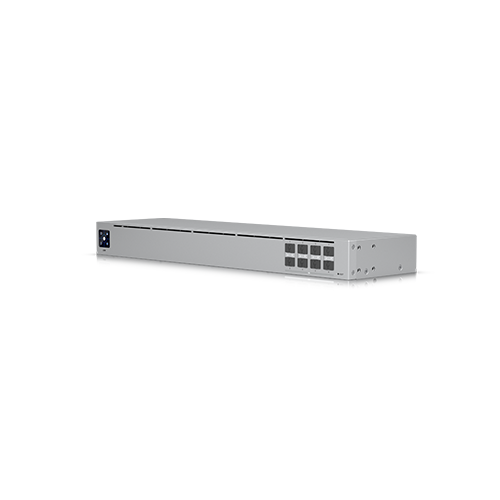

Ubiquiti UniFi Switch Aggregation
UniFi Aggregation Switch is a managed Layer 2 switch with eight 10G SFP+ ports. Featuring a compact 4.7" depth and fanless design, it supports high-bandwidth links to provide link aggregation for higher capacity and increased availability.
• (8) 10G SFP+ Ports
• 160 Gbps switching capacity
• 1.3" Touchscreen with AR switch management
• Fanless, 4.7" depth compact enclosure
• 1U Rackmountable (kit included)
• Managed by UniFi Network Controller
• Dimensions: 442.4 x 120 x 43.7 mm (17.42 x 4.72 x 1.72")
• Weight Without Mount: 2.65 kg (5.84 lb) With Mount: 2.74 kg (6.04 lb)
• Enclosure Material: SGCC Steel
• Total Non-Blocking Throughput: 80 Gbps
• Switching Capacity: 160 Gbps
• Forwarding Rate: 119.04 Mpps
• Max. Power Consumption: 30W
• Power Method Universal AC Input: 100-240VAC, 50/60 Hz
• Power Supply: AC/DC, Internal, 36W
• Management Interface: Ethernet In-Band
• Modes: SMB Layer 2 Gigabit Ethernet Switch
• ESD/EMP Protection Air: ± 16kV, Contact: ± 12kV
• Operating Temperature: -5 to 40° C (23 to 104° F)
• Operating Humidity: 10 - 90% Noncondensing
• Certifications: CE, FCC, IC
