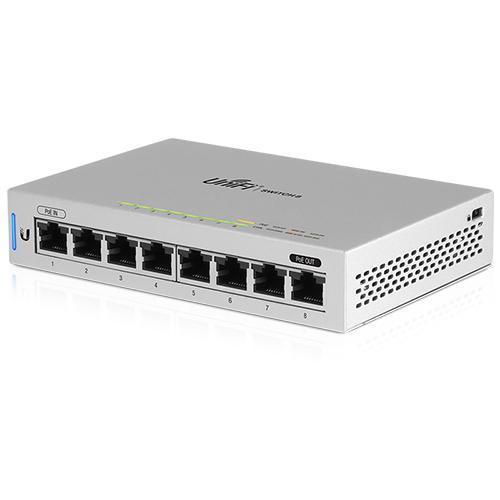

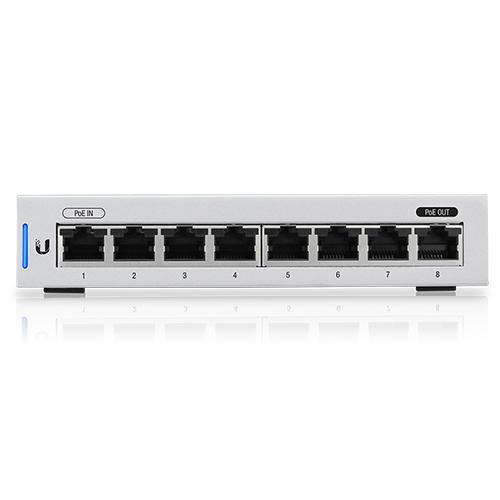

Ubiquiti UniFi Switch 8
Fully Managed Gigabit Switch
The UniFi Switch 8-port models feature Gigabit Ethernet ports in a compact form factor. The switches are fully manageable, delivering robust performance and intelligent switching for your networks.
• Manage Your Networks from a Single Control Plane
• Intuitive and Robust Configuration, Control and Monitoring
• Remote Firmware Upgrade
• Users and Guests
• Guest Portal/Hotspot Support
• Dimensions: 148 x 99.5 x 30.7 mm (5.83 x 3.92 x 1.21")
• Weight: 432 g (15.24 oz)
• Networking Interfaces: (8) 10/100/1000 Mbps RJ45 Ports
• 48VDC (Pins 1, 2+; 3, 6-)
• Power Method: (1) DC 48V, Max. 1.25A (1) PoE Input, 802.3af/at (Pins 1, 2+; 3, 6-)
• Power Supply: External AC/DC Adapter: 48V, 0.5A
• Max. Power Consumption: 12W (Excluding PoE Output)
• Max. PoE Wattage per Port: PoE Mode 1: 12W @ 802.3at PoE Mode 2: 12W @ 48V DC Input Mode: 12W @ 48V
• Passive PoE Voltage Range: Depends on Power Source
• Line Rate: 8 Gbps, Non-Blocking
• LEDs, System, RJ45 Data Ports: Status PoE; Link/Speed/Activity
• ESD/EMP Protection: ± 24kV Air, ± 24kV Contact
• Operating Temperature: -5 to 45° C (23 to 113° F)
• Operating Humidity: 5 to 95% Noncondensing
• Certifications: CE, FCC, IC
