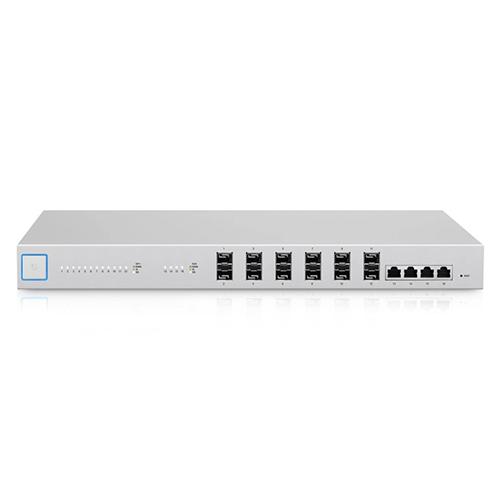

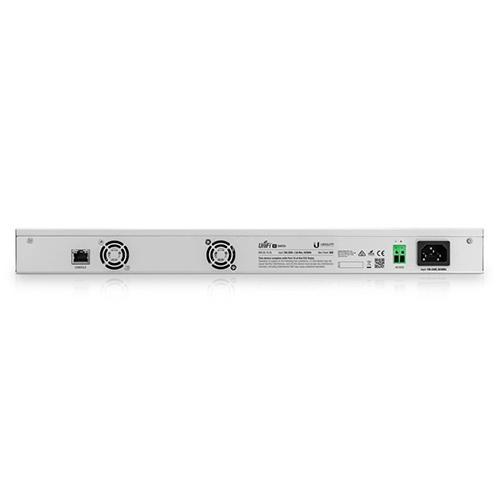

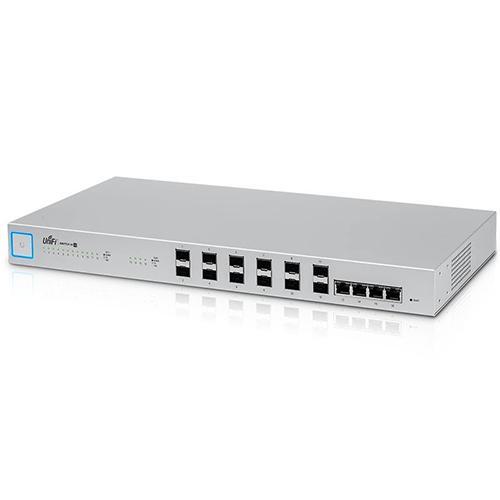

Ubiquiti UniFi Switch 16 XG
The US 16 XG is a fully managed, 16 port, 10G fiber switch that enhances network capacity by providing high bandwidth aggregation connectivity to multiple switches in your network.
• Switching Performance
• PoE+ Flexibility
• Fiber Connectivity
• Multi-Site Management
• Switch Configuration
• Switch Port Status
• Dimensions 443 x 221 x 43 mm (17.44 x 8.70 x 1.69 ")
• Weight: Without Mount Brackets: 2.62 kg (5.78 lbs) With Mount Brackets: 2.71 kg (5.97 lbs)
• Enclosure Characteristics: SGCC Steel
• Total Non-Blocking Throughput: 160 Gbps
• Switching Capacity: 320 Gbps
• Forwarding Rate: 238.10 Mpps
• Max. DC Power Consumption: 36W (Excludes SFP/SFP+ Modules)
• Power Method:
• AC: 100-240VAC/50-60 Hz, Universal Input
• DC: DC 56W, 25 to 16V, with 2.5 mm DC Power Inline Connector
• Supported Voltage Range: nAC: 100 to 240 VAC DC: 25 to 16 VDC
• Power: AC DC
• 100-240VAC/50-60 Hz, Universal Input DC
• 56W, 57 to 20V, with 48/24VDC Terminal Block
• LEDs Per Data Port: Speed/Link/Activity
• Networking Interfaces: (12) 1/10 Gbps SFP+ Ethernet Ports (4) 1/10 Gbps RJ45 Ethernet Ports
