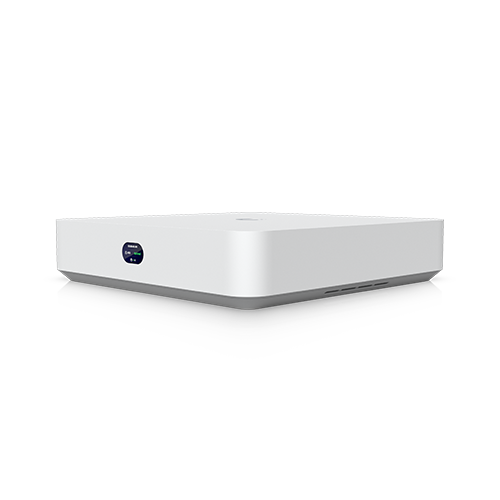

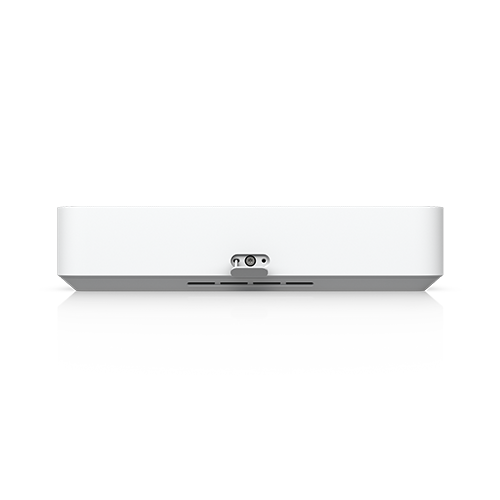

Ubiquiti UniFi Network Video Recorder Instant

UNVR-Instant

Compact UniFi Protect NVR with 3.5" HDD support, featuring an integrated 6-port PoE switch, integrated HDMI View Port, and a capacity for (6) 4K cameras or (15) Full HD cameras.




Technical Specification
Data Sheet
Inquire Now

Dimensions
220 x 220 x 47 mm (8.7 x 8.7 x 1.9")
UniFi Application Suite


Protect


✓

Access


✓
Managed Cameras
(15) HD (8) 2K (6) 4K

Managed Access Hubs


50
Storage Capacity
(1) 3.5" drive bay
Data Protection
✓
Vantage Point
✓
Networking Interface

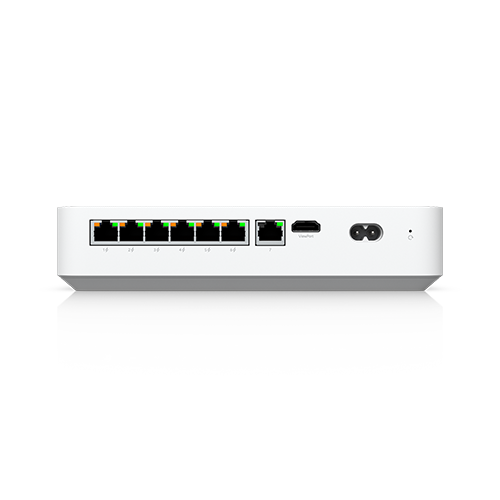

(1) GbE RJ45 uplink port (6) GbE PoE RJ45 downlink ports (1) HDMI port (Viewport)
Form Factor
Compact Desktop
Mounting
Wall, Din rail mount (Included)
Door Access Support
✓

Hardware
Hard Drive Capacity
(1) 3.5" HDD support
Max. Power Budget for Drives
11W
Max. Power Consumption
9W

Power Method
Universal AC input, 100-240VAC, 1.5A Max, 50/60 Hz
Power Supply
AC/DC, Internal, 60W
PoE Budget
40W
Max. PoE Wattage per Port by PSE

PoE
15.4W
Voltage Range PoE Mode
44–57V
Processor
Quad-core ARM® Cortex®-A55 at 1.7 GHz
Memory
4 GB
Management
Ethernet Bluetooth
Display
1.14" screen
Weight
1.04 kg (2.3 lb)
Enclosure Material
Polycarbonate
Mount Material
Polycarbonate
LEDs

Ethernet
✓
PoE
✓
Ambient Operating Temperature
0 to 40° C (32 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
✓
Certifications
FCC, IC, CE, Electrical Safety, SRRC, Anatel: 06781-25-08356
