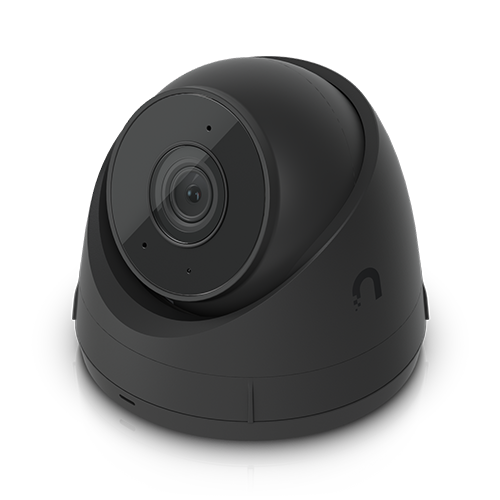

Ubiquiti UniFi G5 Turret Ultra Black

UVC-G5-Turret-Ultra-B

Ultra-compact, tamper-resistant, and weatherproof 2K HD PoE camera with long-range night vision.

Technical Specification
Data Sheet
Inquire Now

Dimensions
Ø90 x 71.2 mm (Ø3.5 x 2.8")
IR Night Vision
30 m (98 ft)
Smart Detections (People, Vehicles, Animals)
✓
Resolution
2K
Field of View
H: 102.4°, V: 54.9°, D: 120.6°
Audio
Microphone
Weatherproofing
IP66
Tamper Resistance
IK04
Mounting
Wall, ceiling mount (Included) Junction box, arm mount (Optional)

Performance
Networking Interface
10/100 MbE RJ45 port
Video

Image Settings
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
Max. Frame Rate
30 FPS
Resolution
4MP 2688 x 1512 (16:9)
Optics

Sensor
1/2.4" CMOS
Lens
Fixed focal length
Night Mode
Built-in IR LED illumination and IR cut filter

Hardware
Max. Power Consumption
4W
Supported Voltage Range
37—57V DC
Power Method
PoE
Processor
Dual-core Arm® Cortex®-A7 based chip
Weight
330 g (11.6 oz)
Enclosure Material
Aluminum alloy, UV-stabilized polycarbonate
Mount Material
Polycarbonate
Button
(1) Factory-reset
Cable

Cable Connector Type
RJ45
Cable Diameter
5 mm (0.2")
Cable Length
30 cm (1 ft)
Jacket Material
Polycarbonate
Jacket Enclosure Dimensions
Ø20 x 70.6 mm (0.8 x 2.8")
Jacket Enclosure Material
Thermoplastic elastomer, polycarbonate, silicone rubber
Ambient Operating Temperature
-30 to 50° C (-22 to 122° F)
Ambient Operating Humidity
0 to 90% noncondensing
NDAA Compliant
✓
Certifications
CE, FCC, IC
