Ubiquiti UniFi Express 7

UX7

Mesh-scalable, super-compact 10G Cloud Gateway with integrated WiFi 7.

Technical Specification
Data Sheet
Inquire Now

Dimensions
117 x 117 x 42.5 mm (4.61 x 4.61 x 1.67'')
UniFi Application Suite


Network


✓
Managed UniFi Devices
30+
Simultaneous Users Connected
300+
Max. WAN Port Count
1
Default WAN Ports
(1) 10 GbE RJ45

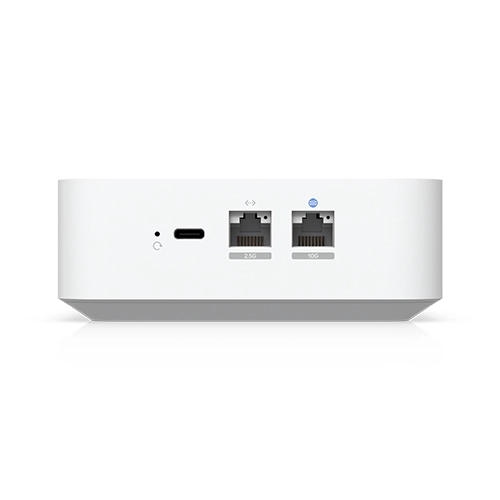

Port Layout

2.5 GbE RJ45
1 (2.5G/1G/100M/10M)
10 GbE RJ45
1 (10G/5G/2.5G/1G/100M)
IDS/IPS Throughput
2.3 Gbps
Form Factor
Compact desktop
Coverage Area
160 m² (1,750 ft²)

Security
Stateful Firewall
✓
Application-Aware Layer 7 Firewall
✓
DPI & Traffic Identification
✓
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
✓
Content Filtering
✓
Intrusion Prevention (IPS/IDS)
✓
Ad Blocking
✓
IDS/IPS Signatures
20,000+ with CyberSecure
VLAN/Subnet-based Traffic Segmentation
✓

VPN & SD-WAN
License-Free SD-WAN
✓
Site-to-Site VPN

Site Magic
✓
IPsec
✓
OpenVPN
✓
VPN Server

Identity Endpoint One-Click VPN
✓
Teleport Zero-Configuration VPN
✓
WireGuard
✓
OpenVPN
✓
L2TP
✓
VPN Client

OpenVPN
✓
WireGuard
✓

Networking
Dynamic Routing

OSPF
✓
Advanced QoS
✓
Multicast DNS (mDNS)
✓
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
✓
Integrated RADIUS Server
✓
RADIUS over TLS (RadSec)
✓
Additional Internet Failover with UniFi LTE Backup
✓
Internet Quality and Outage Reporting
✓
Policy-based WAN and VPN Routing
✓
Customizable DHCP Server
✓
IPv6 ISP Support
✓
IGMP Proxy
✓
Virtual Network Override
✓
All Traffic Flows
—


Integrated WiFi
WiFi Standard
802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
Throughput

6 GHz
5.7 Gbps
5 GHz
4.3 Gbps
2.4 GHz
688 Mbps
MIMO

6 GHz
2 x 2 (DL/UL MU-MIMO)
5 GHz
2 x 2 (DL/UL MU-MIMO)
2.4 GHz
2 x 2 (DL/UL MU-MIMO)
Antenna Gain

6 GHz
6 dBi
5 GHz
7 dBi
2.4 GHz
4 dBi
Max. TX Power

6 GHz
24 dBm
5 GHz
26 dBm
2.4 GHz
23 dBm
Wireless Security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
Max. BSSIDs
4 per Radio (Gateway Mode) 4 per Radio (AP Mode)
Supported Data Rates

802.11be (WiFi 7)
7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
802.11ax (WiFi 6/6E)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
1, 2, 5.5, 11 Mbps
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps

Hardware
Max. Power Consumption
22W
Power Method
USB type C (5V DC/5A)
Power Supply
USB type C (5V DC/5A) (Adapter included)
Supported Voltage Range
100—240V AC
Heat Dissipation
75 BTU/hr
Processor
Quad-core ARM® Cortex®-A53 at 1.5 GHz
System Memory
3 GB
Weight
422 g (14.9 oz)
Enclosure Material
Polycarbonate

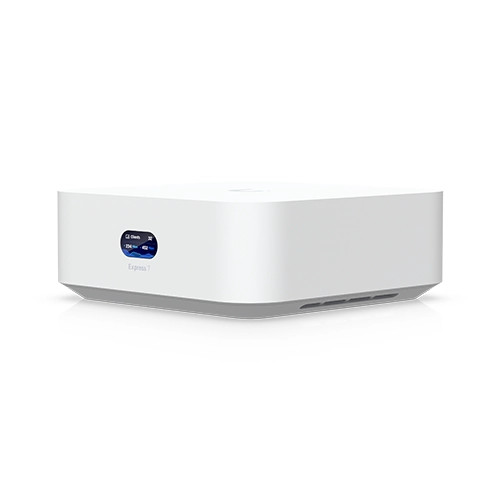

LCM Display
0.96" status display
Management
Ethernet Bluetooth
LEDs

Ethernet
✓
Button
(1) Factory-reset
ESD/EMP Protection
Air: ± 8kV, contact: ± 4kV
Ambient Operating Temperature
-10 to 40° C (14 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
✓
Certifications
CE, FCC, IC, Anatel: 06656-25-08356

Software
VLAN
802.1Q
Guest Traffic Isolation
✓
Application Requirements

UniFi Network
Version 9.0.108 and late
