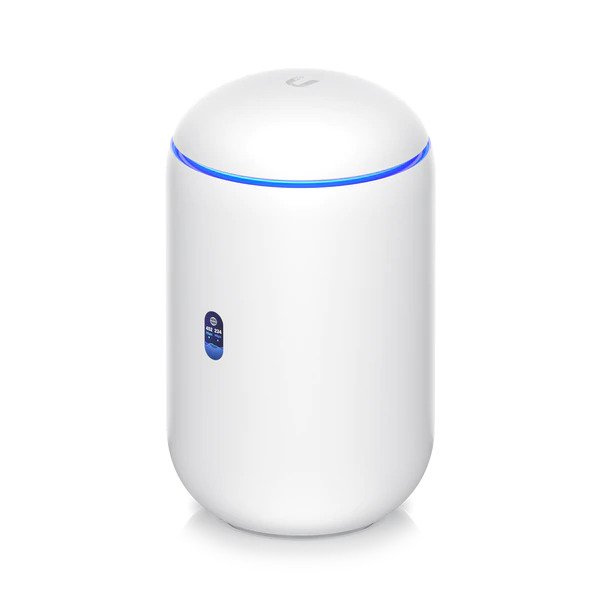

Ubiquiti UniFi Dream Router
UDR-US
The Dream Router (UDR) is a next-generation WiFi 6 router that delivers unbeatable performance at an unmatched price. Featuring advanced 4x4 MU-MIMO and OFDMA technology, the UDR has an aggregate wireless throughput rate of up to 3 Gbps over its 2.4 and 5 GHz bands, ensuring quality connectivity for all of your devices.
• Four-stream WiFi 6 technology
• 5 GHz band (4x4 MU-MIMO/OFDMA) with a 2.4 Gbps throughput rate
• 2.4 GHz band (4x4 MIMO) with a 600 Mbps throughput rate
• 128 GB of internal storage

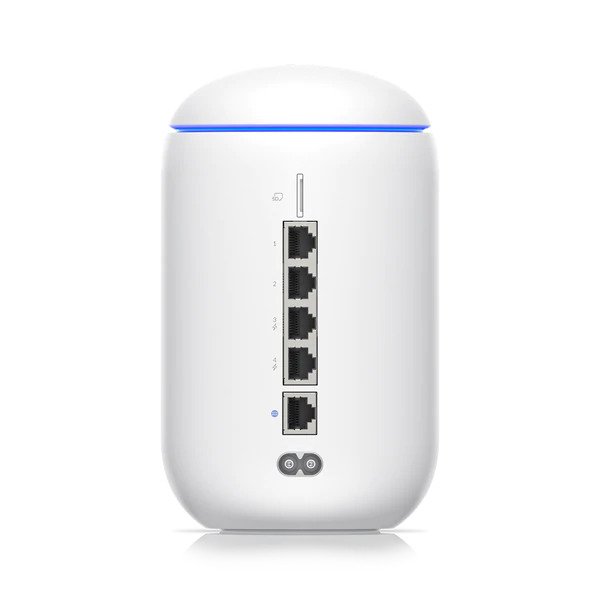

• (1) GbE RJ45 WAN port
• (4) LAN ports, including (2) 802.3af PoE outputs
• 0.96" LCM color screen for network and connection monitoring
• Micro SD memory card expansion slot*
- Weight: 1.2 kg (2.5 lb)
- Enclosure material: Polycarbonate
- Processor: Dual-core Arm® Cortex® A53 at 1.35 GHz
- System memory: 2 GB
- Expansion slot Micro SD memory card*
- *Requires a memory card with at least 128 GB of storage.
- Management interface Ethernet
- Bluetooth
- Networking interface LAN:
- (4) GbE RJ45 ports WAN: (1) GbE RJ45 port
- PoE interface: (2) PoE (Pair B 4, 5+; 7, 8-)
- Power method: Universal AC input, 100—240V AC, 1.1A Max., 50/60 Hz
- Power supply: AC/DC, Internal, 50W
- Supported voltage range: 100—240V DC
- Max. power consumption: 19.37W (Excluding PoE output)
- PoE budget: 40W
- Max. PoE wattage per port by PSE 15.4W
- Voltage range PoE mode: 44—57V DC
- Max. TX power
- 2.4 GHz
- 5 GHz
- 26 dBm
- 26 dBm
- MIMO
- 2.4 GHz
- 5 GHz
- 4 x 4
- 4 x 4
- Throughput rate
- 2.4 GHz
- 5 GHz
- 600 Mbps
- 2.4 Gbps
