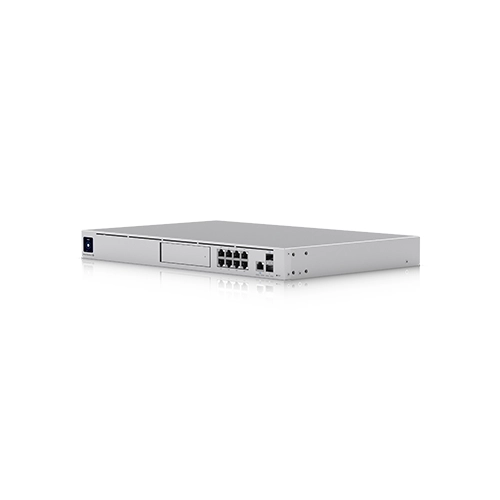

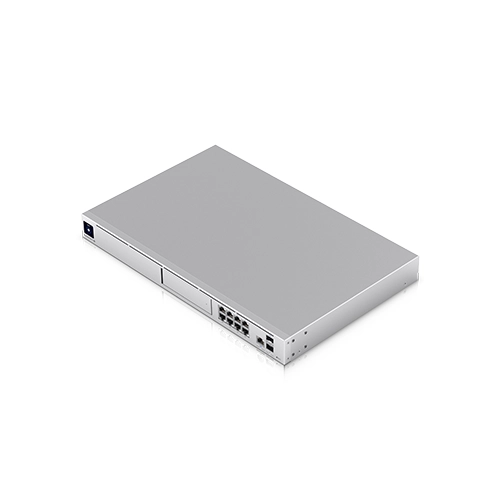

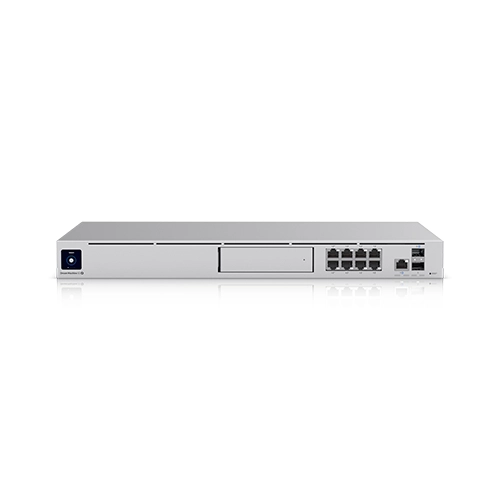

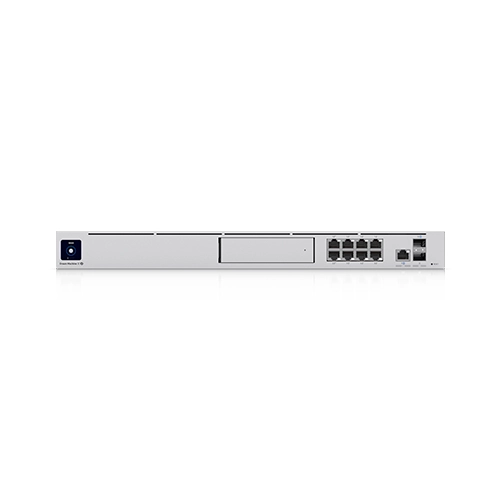

Ubiquiti UniFi Dream Machine Special Edition

UDM-SE (180W)

10G Cloud Gateway with 100+ UniFi device / 1,000+ client support, 3.5 Gbps IPS routing, and built-in PoE switching.

Technical Specification
Data Sheet
Inquire Now
Dimensions
442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2")
UniFi Application Suite


Network


✓

Protect


✓

Access


✓

Talk


✓

Connect


✓
Managed UniFi Devices
100+
Managed Cameras
(24) HD (14) 2K (8) 4K

Managed Access Hubs


150
Simultaneous Users Connected
1,000+
Max. WAN Port Count
8
Default WAN Ports
(1) 10G SFP+ (1) 2.5 GbE RJ45
Port Layout

1 GbE RJ45
8 (1G/100M/10M)
2.5 GbE RJ45
1 (2.5G/1G/100M/10M)
10G SFP+
2 (10G/1G)
IDS/IPS Throughput
3.5 Gbps
Form Factor
Rack mount (1U)
Redundancy
Shadow Mode (VRRP) Gateway Failover DC Power Backup


Security
Stateful Firewall
✓
Application-Aware Layer 7 Firewall
✓
DPI & Traffic Identification
✓
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
✓
Content Filtering
✓
Intrusion Prevention (IPS/IDS)
✓
Ad Blocking
✓
IDS/IPS Signatures
55,000+ with CyberSecure
VLAN/Subnet-based Traffic Segmentation
✓

VPN & SD-WAN
License-Free SD-WAN
✓
Site-to-Site VPN

Site Magic
✓
IPsec
✓
OpenVPN
✓
VPN Server

Identity Endpoint One-Click VPN
✓
Teleport Zero-Configuration VPN
✓
WireGuard
✓
OpenVPN
✓
L2TP
✓
VPN Client

OpenVPN
✓
WireGuard
✓

Networking
Multi-WAN Load Balancing
✓
Shadow Mode (VRRP) High Availability
✓
LACP Port Aggregation
✓
Dynamic Routing

OSPF
✓
BGP
✓
Advanced QoS
✓
Multicast DNS (mDNS)
✓
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
✓
Integrated RADIUS Server
✓
RADIUS over TLS (RadSec)
✓
Additional Internet Failover with UniFi LTE Backup
✓
Internet Quality and Outage Reporting
✓
MAC Address Table Size
4,000
Policy-based WAN and VPN Routing
✓
Customizable DHCP Server
✓
IPv6 ISP Support
✓
IGMP Proxy
✓
Virtual Network Override
✓

Hardware
NVR Storage
(1) 3.5" NVR HDD bay Built-in 128 GB SSD for Faster Experience
PoE Budget
180W
Max. PoE Wattage per Port by PSE

PoE
15.4W
PoE+
30W
Voltage Range PoE Mode
PoE: 44-57V PoE+: 50-57V
Max. Power Consumption
50W (Excluding PoE Output)
Power Method
(1) Universal AC input, 100—240V AC, 4.4A Max., 50/60 Hz (1) USP-RPS DC input, 52V DC, 3.94A
Power Supply
AC/DC, internal, 240W
Supported Voltage Range
100—240V AC
Heat Dissipation
170 BTU/hr (Excluding PoE Output)
Processor
Quad-core ARM® Cortex®-A57 at 1.7 GHz
System Memory
4 GB
On-board Storage
16 GB eMMC 128 GB SSD (Integrated)
Weight
5 kg (10.9 lb)
Enclosure Material
Aluminium CNC, SGCC steel
Mount Material
SGCC steel
LCM Display
1.3" touchscreen
Management
Ethernet Bluetooth
LEDs

Ethernet
✓
SFP+
✓
RPS
✓
PSU
✓
HDD
✓
Button
(1) Factory-reset
ESD/EMP Protection
Air: ± 15kV, contact: ± 8kV
Ambient Operating Temperature
-10 to 40° C (14 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
✓
Certifications
CE, FCC, IC, Anatel: 07309-22-08356, SRRC
