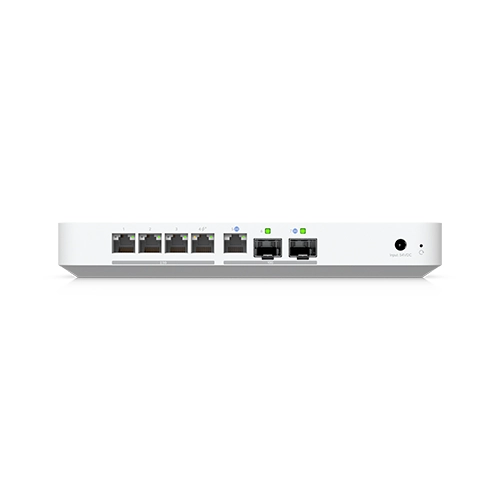

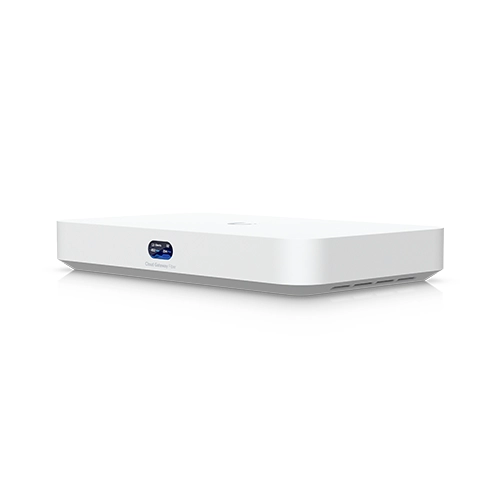

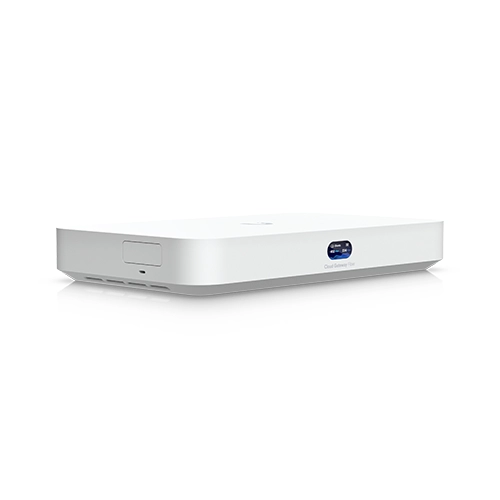

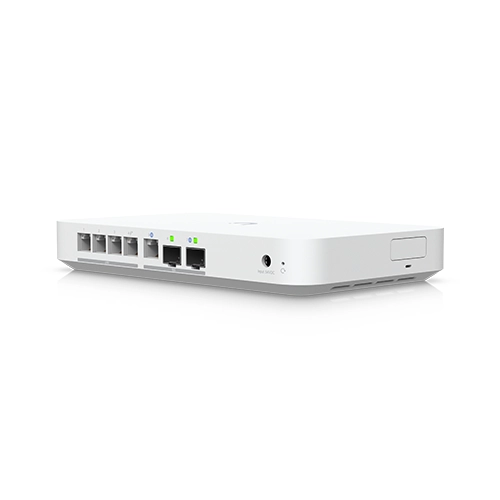

Ubiquiti UniFi Cloud Gateway Fiber

UCG-Fiber (30W)

Desktop 10G Cloud Gateway with integrated 4-port 2.5 GbE switch, selectable NVR storage, and full UniFi application support.

Technical Specification
Data Sheet
Inquire Now
imensions
212.8 x 127.6 x 30 mm (8.3 x 5 x 0.5 ")
UniFi Application Suite


Network


✓

Protect


✓

Access


✓

Talk


✓

Connect


✓
Managed UniFi Devices
50+
Managed Cameras
(15) HD (8) 2K (5) 4K

Managed Access Hubs


50
Simultaneous Users Connected
500+
Max. WAN Port Count
6
Default WAN Ports
(1) 10G SFP+ (1) 10 GbE RJ45
Port Layout

2.5 GbE RJ45
4 (2.5G/1G/100M/10M)
10 GbE RJ45
1 (10G/2.5G/1G)
10G SFP+
2 (10G/1G)
IDS/IPS Throughput
5 Gbps
Form Factor
Compact desktop

Security
Stateful Firewall
✓
Application-Aware Layer 7 Firewall
✓
DPI & Traffic Identification
✓
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
✓
Content Filtering
✓
Intrusion Prevention (IPS/IDS)
✓
Ad Blocking
✓
IDS/IPS Signatures
55,000+ with CyberSecure
VLAN/Subnet-based Traffic Segmentation
✓

VPN & SD-WAN
License-Free SD-WAN
✓
Site-to-Site VPN

Site Magic
✓
IPsec
✓
OpenVPN
✓
VPN Server

Identity Endpoint One-Click VPN
✓
Teleport Zero-Configuration VPN
✓
WireGuard
✓
OpenVPN
✓
L2TP
✓
VPN Client

OpenVPN
✓
WireGuard
✓

Networking
Multi-WAN Load Balancing
✓
Dynamic Routing

OSPF
✓
Advanced QoS
✓
Multicast DNS (mDNS)
✓
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
✓
Integrated RADIUS Server
✓
RADIUS over TLS (RadSec)
✓
Additional Internet Failover with UniFi LTE Backup
✓
Internet Quality and Outage Reporting
✓
MAC Address Table Size
4,000
Virtual Network Override
✓
All Traffic Flows
✓

Hardware
NVR Storage
Selectable NVMe SSD up to 2 TB

PoE Budget
30W
Voltage Range PoE Mode
50-57V
Max. Power Consumption
29.4W (Excluding PoE output)
Power Method
DC jack (54V DC/1.1A)
Power Supply
54V DC/1.1A (Adapter included)
Supported Voltage Range
100—240V AC
Heat Dissipation
100 BTU/hr (Excluding PoE Output)
Processor
Quad-core ARM® Cortex®-A73 at 2.2 GHz
System Memory
3 GB
Weight
Without SSD: 675 g (1.5 lb) With SSD: 734 g (1.6 lb)
Enclosure Material
Polycarbonate
LCM Display
0.96" status display
Management
Ethernet Bluetooth
LEDs

Ethernet
✓
SFP+
✓
Button
(1) Factory-reset
ESD/EMP Protection
Air: ± 8kV, contact: ± 4kV
Ambient Operating Temperature
0 to 40° C (32 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
✓
Certifications
CE, FCC, IC, SRRC, Anatel: 04395-25-08356
