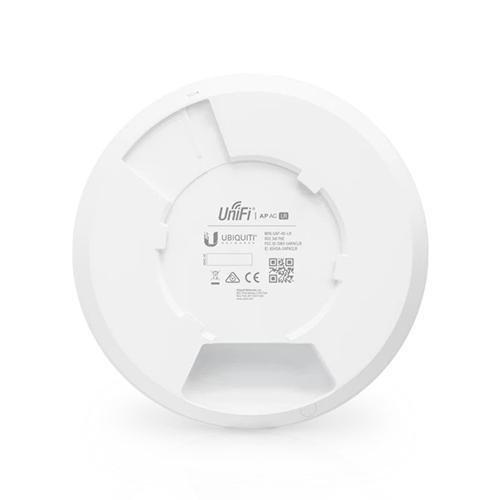

Ubiquiti UniFi AP AC LR
802.11ac Long Range Access Point
The UniFi AC LR AP features the latest Wi-Fi 802.11ac technology in a refined industrial design and is ideal for long-range deployment of high performance wireless networks.
• Innovative Antenna Design
• Designed for Optimal RF Performance
• Scalable Enterprise Wi-Fi Management
• Intuitive and Robust Configuration, Control and Monitoring
• Remote Firmware Upgrade
• Dimensions: 175.7 x 175.7 x 43.2 mm (6.92 x 6.92 x 1.70")
• Weight: 240 g (8.5 oz), 315 g (11.1 oz) with Mounting Kits
• Networking Interface: (1) 10/100/1000 Ethernet Port
• Ports: No
• Buttons: Reset
• Antennas: (1) Dual-Band Antenna, Tri-Polarity, 2.4 GHz: 3 dBi, 5 GHz: 6 dBi
• Wi-Fi Standards: 802.11 a/b/g/n/ac
• Power Method: Passive Power over Ethernet (24V), (Pairs 4, 5+; 7, 8 Return)
• Power Supply: 24V, 0.5A Gigabit PoE Adapter
• Maximum Power Consumption: 6.5W
• Max TX Power: 24 dBm
• BSSID: Up to Four per Radio
• Power Save: Supported
• Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
• Certifications: CE, FCC, IC
• Mounting: Wall/Ceiling (Kits Included)
• Operating Temperature: -10 to 70° C (14 to 158° F)
• Operating Humidity: 5 to 95% Noncondensing
