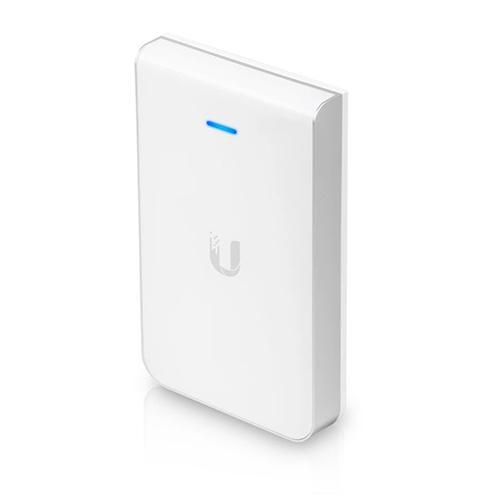

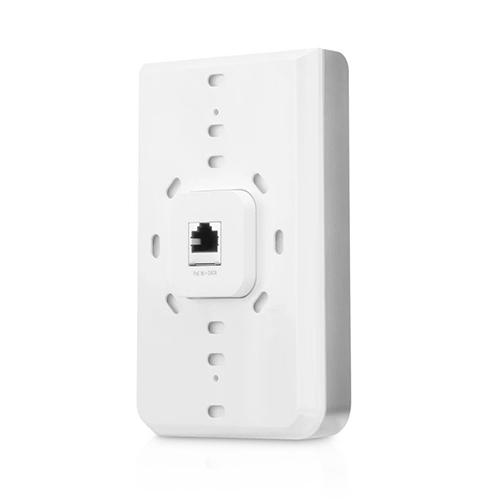

Ubiquiti UniFi AC IN-WALL
Convert an Ethernet wall jack into a dual-band 802.11AC Wi-Fi access point with two Gigabit Ethernet ports.
Ideal for new or retrofit installations, the UniFi® AC In-Wall is designed to convert an Ethernet wall jack into a dual-band 802.11AC Wi-Fi access point with two Gigabit Ethernet ports. One of the ports provides PoE for powering and connecting an 802.3af device to the network. The UniFi AC In-Wall is capable of wireless speeds of up to 1167 Mbps with a range of up to 100 meters.
• Scalable. Dedicated Wi-Fi per room
• Easy Setup, Monitoring, and Control
• Fast. Two radios, 802.11ac
• Dimensions: 139.7 x 86.7 x 25.75 mm (5.5 x 3.41 x 1.01")
• Weight: 200 g (6.43 oz)
• Networking Interface (3) 10/100/1000 Ethernet Ports
• Buttons: Reset:
• Power Method: 802.3at PoE+ Supported
• Power Supply: UniFi PoE Switch (Not Included)
• Power Save: Supported
• PoE Out: 48V Pass-Through (Pins 1, 2+; 3, 6-)
• Maximum Power Consumption 7W with PoE Passthrough 19W*
• Maximum TX Power: 2.4 GHz 20 dBm 5 GHz 20 dBm
• Wi-Fi Standards: 802.11 a/b/g/n/r/k/v/ac
• Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
• BSSID: Up to 8 per Radio
• Mounting: 1-Gang Electrical Wall Box (Not Included)
• Operating Temperature: -10 to 50° C (14 to 122° F)
• Operating Humidity: 5 to 95% Noncondensing
• Certifications: CE, FCC, IC
