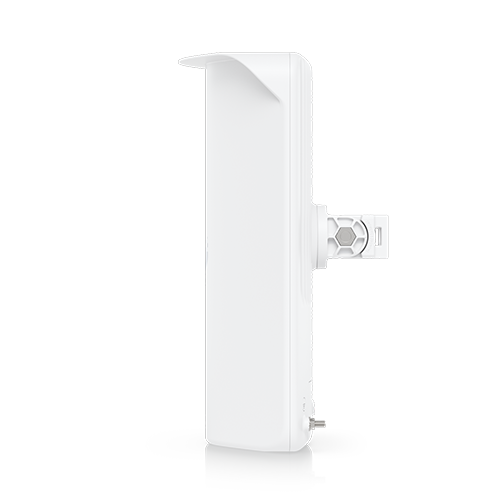

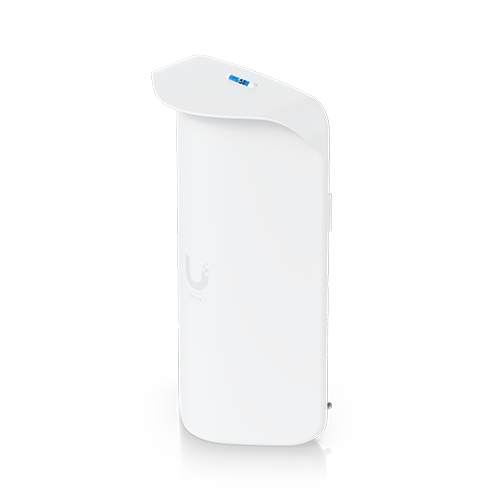

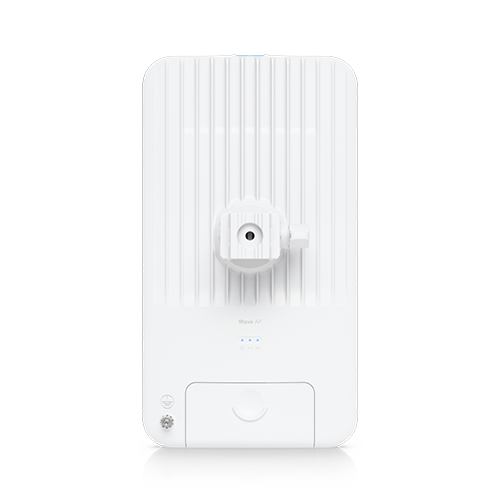

Ubiquiti UISP Wave 60hz AP Gen2

Wave-AP-Gen2

60 GHz + 5 GHz multipoint base station featuring 90-degree sectoral coverage, 31-client capacity, 2.7 Gbps symmetrical speed, and antenna connectors for 5 GHz range extension.

Technical Specification
Data Sheet
Inquire Now

Dimensions
158.3 x 286.8 x 100.2 mm (6.2 x 11.3 x 3.9")
Weight
1.5 kg (3.3 lb)
Enclosure Material
UV stabilized polycarbonate, aluminum alloy
Pole Mount Diameter
25.4 to 60 mm (1 to 2.4")

Wind Loading
109.8 N at 200 km/h (25 lbf at 125 mph)
Weatherproofing
IPX6

Hardware
Processor
Quad-core ARM® Cortex®-A53 at 1.4 GHz
Memory
512 MB
Networking Interface
(1) 2.5 GbE RJ45 port (1) 10G SFP+ port
Max. Power Consumption
24W
Power Method
Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only
Supported Voltage Range
44–54V DC 22–27V DC
Power Supply
48V DC, 0.65A 2.5 GbE PoE adapter (Included)
GPS
✓
Buttons
(1) Factory-reset
LEDs

Power
Flashing white: bootup in progress White: not connected to UISP application Blue: connected to UISP application Flashing blue: locate in progress Blue/white: firmware upgrade in progress
Ethernet
Flashing white: Ethernet traffic detected Flashing blue: SFP+ traffic detected
GPS
Blue: receiving at least (4) GPS satellite signal
Ambient Operating Temperature
-40 to 60° C (-40 to 140° F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
✓
Certifications
FCC, IC, CE

Software
Operating Modes
PtMP access point
Ubiquiti Specific Features

Discovery Protocol
✓
Services

UISP
✓
Ping Watchdog
✓
NTP Client
✓
SNMP
✓
Tools

Cable Test
✓
Wave AI
✓
Wave Technology
✓
Utilities

Antenna Alignment
✓
Ping
✓
Site Survey
✓
Speed Test
✓
Traceroute
✓
Network
Bridge Mode
Application Requirements

UISP
Version 2.4.205 and later

System
Total Throughput
5.4 Gbps
Supported Clients
31
Max. Range
Connecting to a Wave Pro: up to 6 km Connecting to a Wave Long-Range: up to 6 km Connecting to a Wave Nano: up to 4 km Connecting to a Wave Pico: up to 0.9 km
Encryption
WPA2-PSK (AES)

Radio Frequency
Operating Frequency

Worldwide
57–71 GHz

Channel Bandwidth
2160, 1080, 540 MHz
Operating Channels
58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200, 70560 MHz

Modulation
16QAM, QPSK
Antenna Gain
20 dBi
Polarization
Vertically-Linear
Beamwidth
Azimuth: 3 dB 90° Elevation: 3 dB 7°
Electrical Downtilt
0°

Radio Frequency (Back-Up)
WiFi Standard
802.11ax (WiFi 6)
Operating Frequency

US/CA
U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz
Worldwide
5150 - 5875 MHz

Channel Bandwidth
20, 40, 80 MHz
Modulation
BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6)
Antenna Gain
13 dBi
Polarization
Dual-Linear
Beamwidth
Azimuth: 6 dB 95° Elevation: 6 dB 25°
Cross-Pol Isolation
18 dB
Electrical Downtilt
0°
