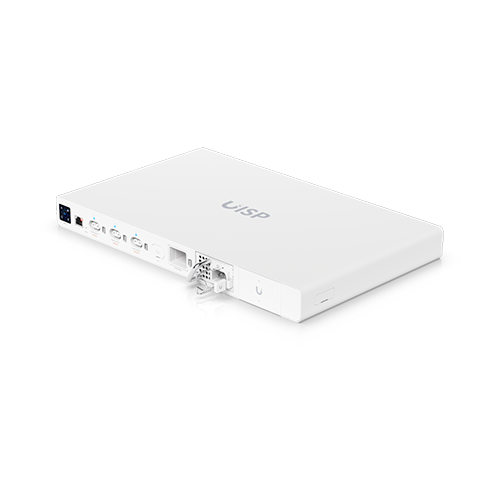

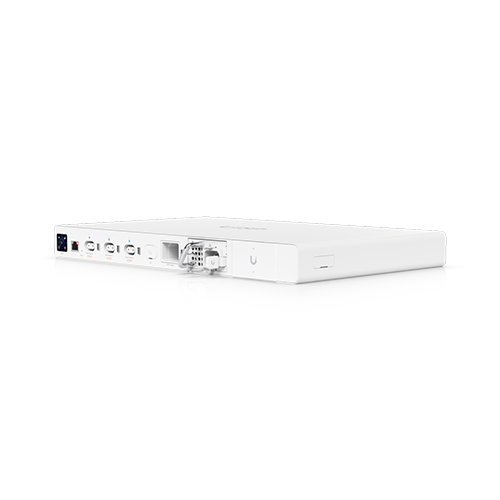

Ubiquiti UISP Power Pro

Dimensions

442.4 x 267.5 x 43.7 mm (17.4 x 10.5 x 1.7")

Weight

4.16 kg (9.2 lb)

Enclosure materials

SGCC steel, polycarbonate/ABS

Hardware

Networking interface

(1) 10/100 MbE RJ45 LAN port

Management interface

Ethernet In-Band
Bluetooth

Power TransPort interface

(3) Power TransPort ports [up to 250W (27V DC) output each]
Total output: 240W (27V DC) with 1 PSU / 480W (27V DC) with 2 PSUs

Primary power

(2) Universal AC inputs (100–240V AC, 3.5A Max., 50/60Hz)
(1) PSU included (Additional modules sold separately.)

Backup power

(1) 24V DC, 20.83A lead-acid battery input* (Battery not included.)
*Connect to a lead-acid battery only. Using another battery type could be hazardous.

Supported voltage range

100 to 240V AC

Max. power consumption

3W (Excludes Power TransPort output and battery charger.)

ESD/EMP protection

Air: ±15 kV / Contact: ± 8 kV

LCM display

1.3" touchscreen

Ambient operating temperature

-10 to 50° C (14 to 122° F)

Ambient operating humidity

5 to 95% non-condensing

Certifications

CE, FCC, IC, PTCRB, AT&T

LTE

Antenna

External (included)

SIM

Nano-SIM

Category

Cat M1

Bands

US/Canada: FDD-LTE Bands 2, 4, 12, 13 (AT&T Network-Ready)
EU: FDD-LTE Bands 1, 3, 8, 20, 28

Notification type

SMS (Requires a nano-SIM card from a Cat M1 SMS provider.)

Input rating

5V DC, 0.5A

LEDs

System

Status

RJ45 data ports

Link/activity

Power TransPort

On/Off

Compatibility

Supported models

UISP Console
UISP Router (installed with UISP Box)
UISP Router Pro
UISP Switch (installed with UISP Box)
UISP Switch Pro

Software

Management application

UISP: Version 1.4.8 and later
