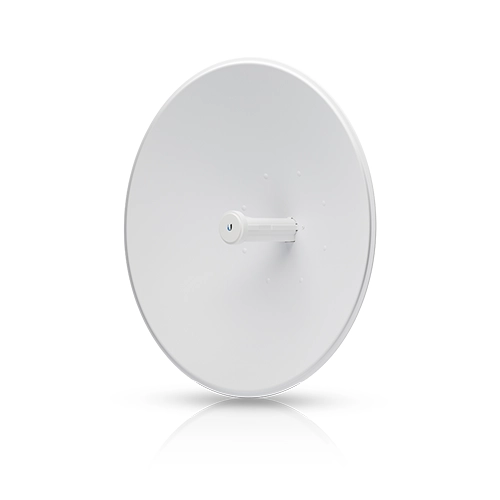

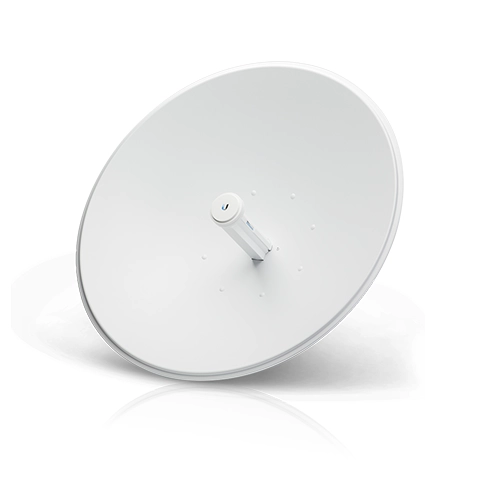

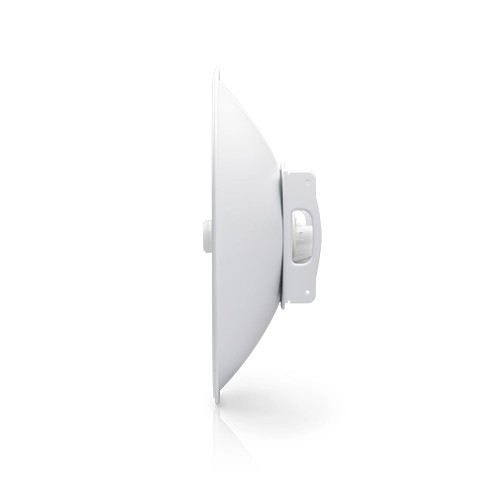

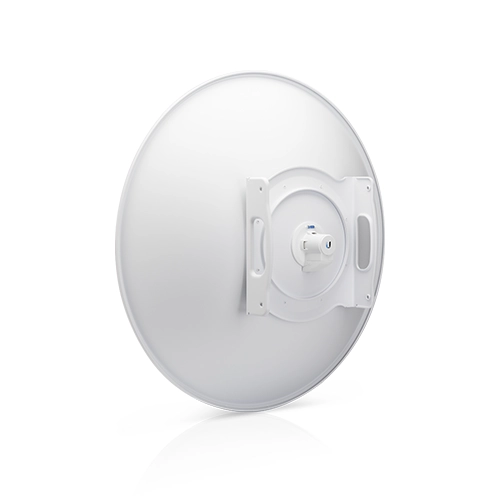

Ubiquiti UISP airMAX PowerBeam 5AC 620

Dimensions

620 x 620 x 386 mm (24.4 x 24.4 x 15.2")

Weight

6.4 kg (14.1 lb)

Enclosure material

Outdoor UV-stabilized plastic

Mounting

Pole mount kit (Included)

Wind loading

Without radome: 1510 N at 200 km/h (340 lbf at 125 mph)
With radome: 1830 N at 200 km/h (411 lbf at 125 mph)

Wind survivability

200 km/h (125 mph)

Hardware

Networking interface

(1) GbE RJ45 port

Power method

Passive PoE 2-pair (4, 5+; 7, 8 return)

Power supply

24V, 0.5A gigabit PoE adapter (Included)

Supported voltage range

20-27V DC

Max. power consumption

8.5W

ESD/EMP protection

Air/contact: ± 24 kV

LEDs

(1) Power, (1) LAN, (4) WLAN

Signal strength LEDs

Software-adjustable to correspond to custom RSSI levels

Salt fog test

IEC 68-2-11 (ASTM B117)
Equivalent: MIL-STD-810 G method 509.5

Vibration test

IEC 68-2-6

Temperature shock test

IEC 68-2-14

UV test

IEC 68-2-5 at 40° C (104° F)
Equivalent: ETS 300 019-1-4

Wind-driven rain test

ETS 300 019-1-4
Equivalent: MIL-STD-810 G method 506.5

Ambient operating temperature

-40 to 70° C (-40 to 158° F)

Ambient operating humidity

5 to 95% noncondensing

Certifications

FCC, IC, CE, RoHS

System

Gain

29 dBi

Max. VSWR

1.6:1

Channel sizes

PtP Mode: 10/20/30/40/50/60/80 MHz
PtMP Mode: 10/20/30/40 MHz

Polarization

Dual linear

Operating Frequency (Mhz)

Worldwide

5150 - 5875 MHz

USA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3

5150 – 5250 MHz
5250 – 5350 MHz
5470 – 5725 MHz
5725 – 5850 MHz

NDAA Compliant

Yes
