Ubiquiti UISP airFiber 60hz AF60-XG

Dimensions

779 x 664 x 383 mm (30.68 x 26.14 x 15.06")

Weight

Without mount: 8.6 kg (19 lb)
With mount: 13 kg (28.7 lb)

Enclosure material

UV stabilized polycarbonate, steel

Mount material

Galvanized steel

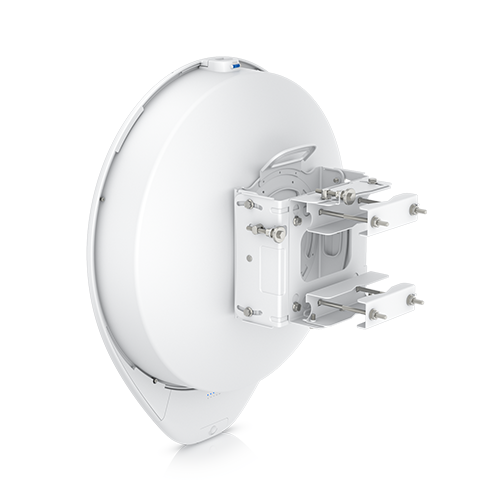

Mounting

Precision alignment kit (included)

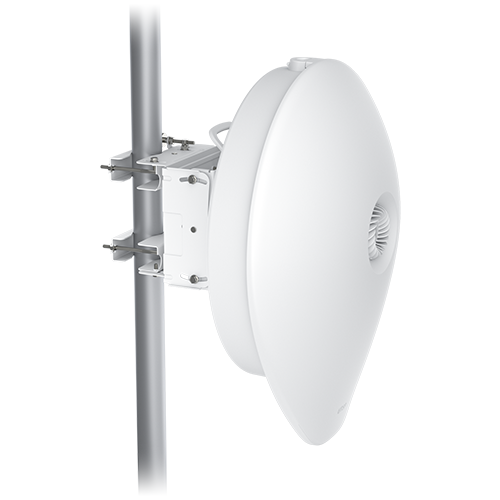

Pole compatibility: Ø40 to 80 mm (Ø1.5 to 3.15")

Wind loading

422 N at 200 km/h (94.86 lbf at 125 mph)

Hardware

Processor

Quad-Core ARM® Cortex® A72 at 1.6 GHz

Memory

2 GB DDR4

Networking interface

(1) GbE RJ45 port
(1) 1/10G SFP+ port

Max. power consumption

31.2W

Power method

Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only

Power supply

48V DC, 0.65A Gigabit PoE adapter (Included)

Supported voltage range

44–54V DC
22–27V DC

GPS

Yes

RF connections

Internal

Button

Factory reset

Ambient operating temperature

-40 to 55° C (-40 to 131° F)

Ambient operating humidity

5 to 95% noncondensing

Certifications

FCC, IC, CE, terragraph

NDAA Compliant

Yes

Software

Operating mode

PtP only

Services

UISP, ping watchdog, NTP client, system log

Utilities

Antenna alignment tool, discovery utility, ping, speed test

Management application

UISP web: Version 1.4.3 and later
UISP iOS™ and Android™: Version 2.19 and later

System

Max. throughput

5 GHz: 866.6 Mbps
60 GHz: 3.8 Gbps/6 Gbps (with channel bonding enabled)

Max. range

4 km

Encryption

WPA2-PSK (AES)

RF

Operating frequency*

57–66 GHz
* Depends on regulatory region.

Channel bandwidth

2160 MHz/4320 MHz (With channel bonding enabled)

Operating channels

58320, 59400, 60480, 61560, 62640, 63720, 64800 MHz*
*Depends on the channel bandwidth.

Polarization

Vertically linear

Beamwidth

Azimuth: 3 dB 1.6°
Elevation: 3 dB 1.6°

Back-Up RF

Operating frequency*
US/CA

U-NII-1 5150 - 5250 MHz
U-NII-3 5725 - 5850 MHz

Worldwide

5150–5875 MHz
*Depends on regulatory region.

Channel bandwidth

20/40/80 MHz

Polarization

Dual-linear

Beamwidth

Azimuth: 3 dB 5°
Elevation: 3 dB 5°

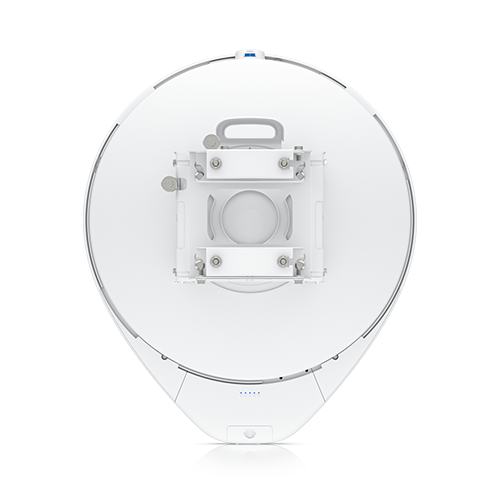

LEDs

Power

Flashing white: bootup in progress
White: not connected to UISP™ console
Blue: connected to UISP console

Ethernet

Flashing blue: ethernet activity

GPS

Blue: receiving at least (4) GPS satellite signals

60G

Blue: active connection

5G

Blue: active connection
