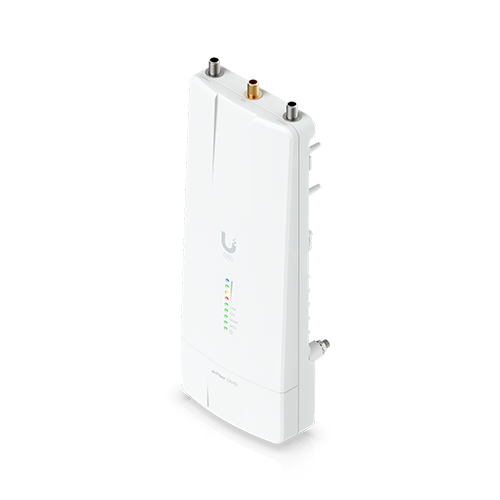

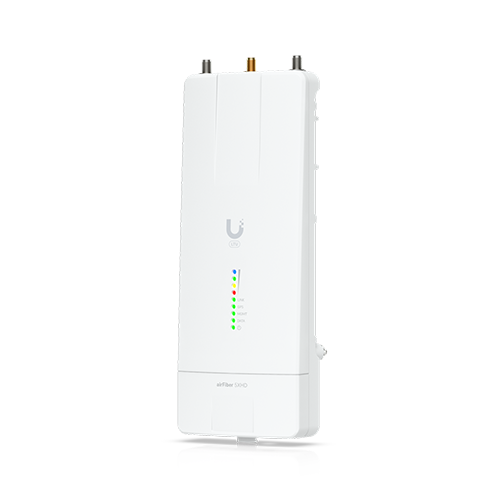

Ubiquiti UISP airFiber 5XHD

Dimensions

224 x 82 x 48 mm (8.8 x 3.2 x 1.9")

Weight

0.4 kg (0.8 lb)

Mounting

airFiber X mount (Rocket mount compatible)
GPS Pole Mount (Included)

Weatherproofing

IP67*
*After installation of IP67 upgrade kit (included).

Hardware

Networking interface

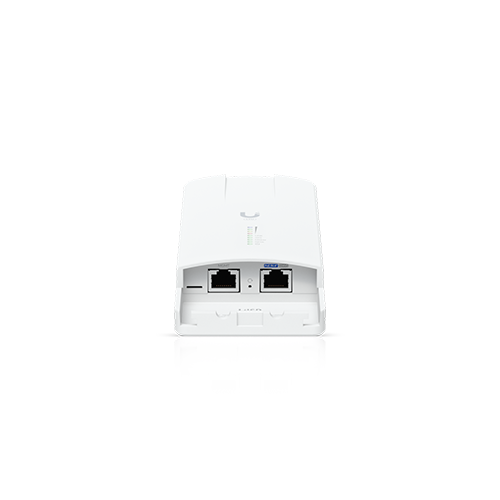

(2) GbE RJ45 ports

Power method

Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
Passive PoE 2-pairs (4, 5+; 7, 8-) or (1, 2+; 3, 6-)

Power supply

24V, 1A gigabit PoE adapter (Included)

Supported voltage range

18—54V DC

Max. power consumption

12W

GPS antenna

External, magnetic base

Ambient operating temperature

-40 to 55° C (-40 to 131° F)

Certifications

CE, FCC, IC

NDAA Compliant

Yes

Software

Modes

PtP Master/Slave

Max. throughput

1+ Gbps

Max. range*

100+ km
*Throughput and range values may vary depending on the environmental conditions.

Encryption

AES-256

RF

Max. TX power*

29 dBm
*Depends on regional regulations.

Frequency accuracy

± 2.5 ppm without GPS Synchronization
± 0.2 ppm with GPS Synchronization

Channel bandwidth

10/20/30/40/50/60/80/100 MHz selectable
Programmable Uplink and Downlink duty cycles

Operating Frequency (MHz)

Worldwide

4800 - 6200 MHz*
*Depends on regional regulations.

US/CA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3

5150 - 5250 MHz
5250 - 5350 MHz
5470 - 5725 MHz
5725 - 5850 MHz
