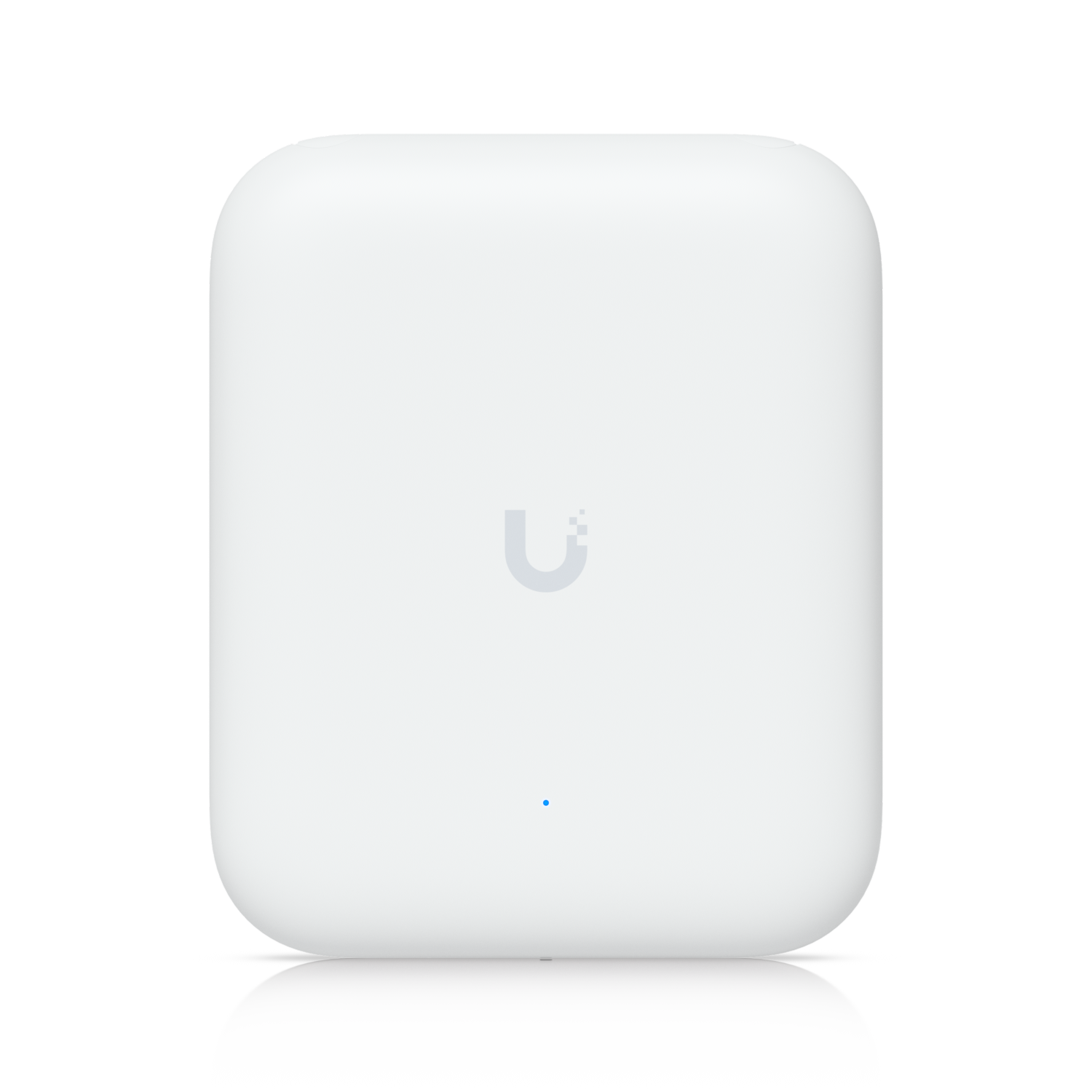

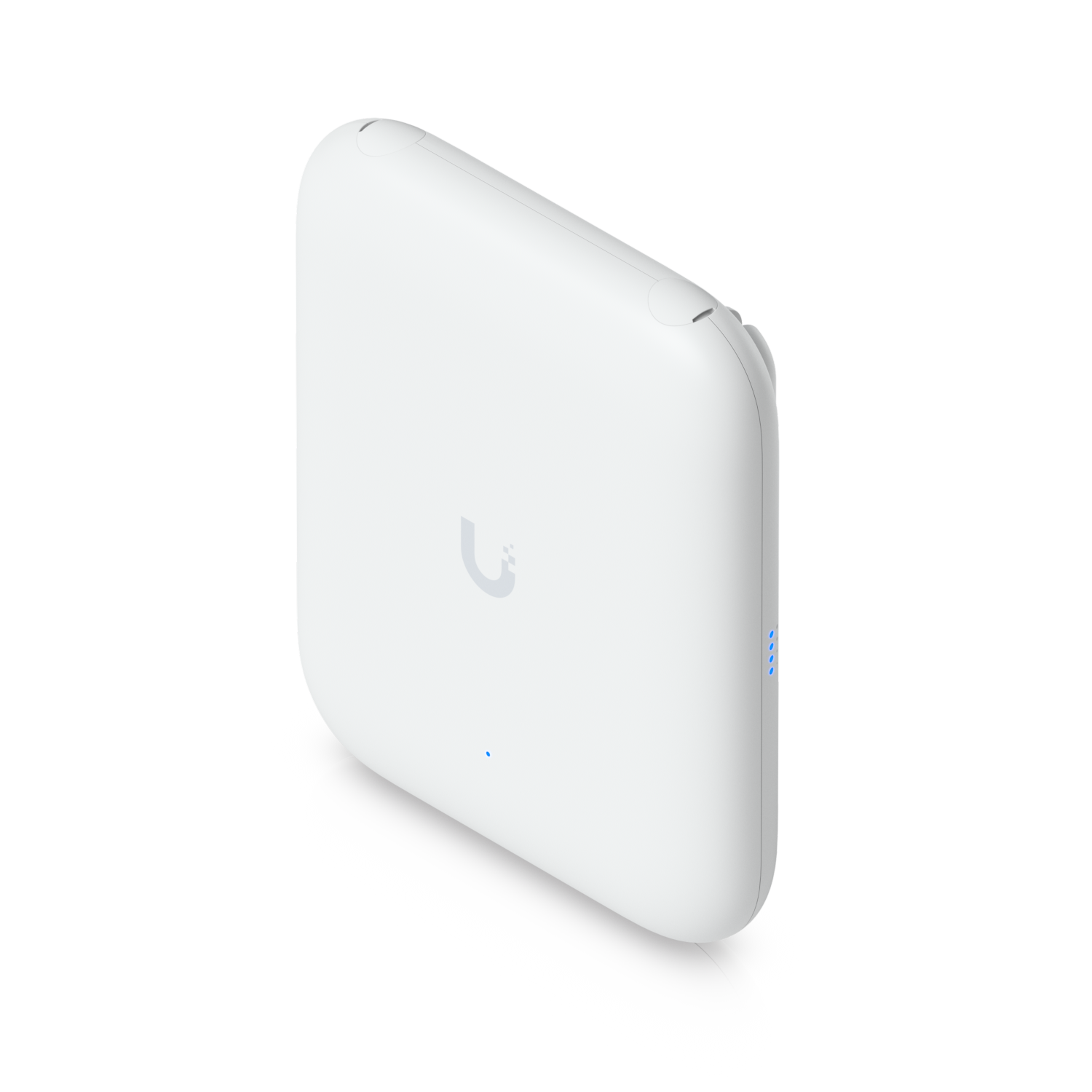

Ubiquiti U7 Outdoor
All-weather WiFi 7 AP with 4 spatial streams, an integrated directional super antenna, and versatile mounting options.
• WiFi 7
• 4 spatial streams
• 465 m² (5,000 ft²) open space coverage with the integrated directional super antenna
• Software-adjustable antenna beamwidth for balanced coverage with the included omni antennas
• 200+ connected devices
• Powered using PoE+
• 2.5 GbE uplink
• Versatile wall and pole mounting
• Weatherproof (outdoor exposed)
• Dimensions: 170 x 208 x 54.5 mm (6.7 x 8.2 x 2.1")
• Weight: 1.2 kg (2.6 lb)
• Enclosure material: UV-stabilized polycarbonate, aluminum alloy
• Mount material: Polycarbonate, SGCC steel
• Pole mount diameter: 25–60 mm (1–2.36") on pipe outer diameter
• Wind survivability: 74.6 N at 200 km/h (16.8 lbf at 125 mph)
• Weatherproofing: IPX6
• Networking interface: (1) 1/2.5 GbE RJ45 port
• Management interface: Ethernet
• Power method: PoE+
• Power supply: UniFi PoE Switch
• Supported voltage range: 42.5—57V DC
• Max. power consumption: 19W
• Max. TX power: 2.4 GHzv23 dBm | 5 GHz 26 dBm
• MIMO: 2.4 GHz 2 x 2 (DL/UL MU-MIMO) | 5 GHz 2 x 2 (DL/UL MU-MIMO)
• Throughput rate: 2.4 GHz 688 Mbps (BW40) | 5 GHz 4.3 Gbps (BW240)
• Antenna gain: 2.4 GHz Directional internal: 8 dBi/External omni: 3 dBi 5 GHz Directional internal: 12.5 dBi/External omni: 4 dBi
• Antenna beamwidth: 2.4 GHz 90° | 5 GHz 45°Antennas: (1) Directional internal antenna | (2) External omni antennas | (2) RP-SMA connectors for external antenna
• LEDs: (1) Power: white/blue | (4) Mesh signal: blue
• Button: Factory reset
• Mounting: Wall, ceiling, pole (Included)
• Ambient operating temperature: -30 to 60° C (-22 to 140° F)
• Ambient operating humidity: 5 to 95% noncondensing
• Certifications: CE, FCC, IC
• WiFi standards: 802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7)
• Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
• BSSID: 8 per radio
• VLAN: 802.1Q
• Advanced QoS: Per-user rate limiting
• Guest traffic isolation: Supported
• Concurrent clients: 200+
