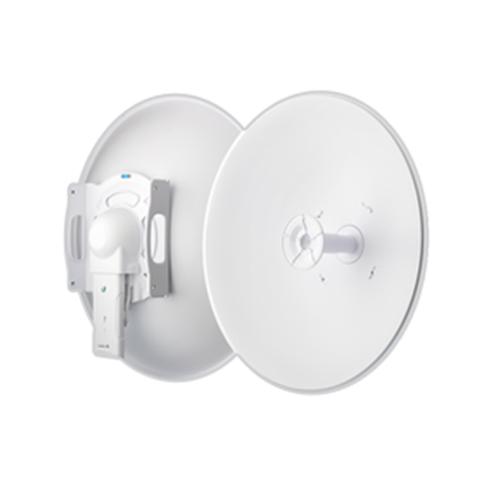

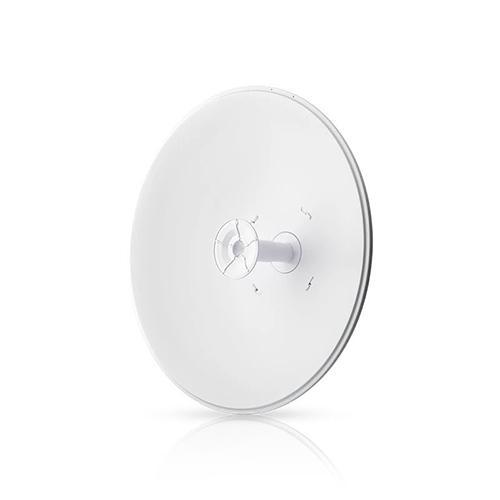

Ubiquiti RocketDish LW RD‑5G30‑LW
RD‑5G30‑LW
airMAX® 2x2 PtP Bridge Dish Antenna
Pair the RocketDish™ with a Rocket™M BaseStation for Point to Point (PtP) bridging and network backhauls.
Product Highlights
• Powerful Performance for Long-Range Links
• Robust Design and Construction for Outdoor Use
• Seamless Integration with Rocket Radio
• Weatherproof Design
• Dimensions: 650 x 650 x 386 mm
• 7.4 kg (16.31 lb)
• Frequency Range: 5.1 - 5.9 GHz
• Gain: 30 dBi
• HPOL Beamwidth: 5.8° (3 dB)
• VPOL Beamwidth: 5.8° (3 dB)
• F/B Ratio: 30 dB
• Max. VSWR: 1.6:1
• Polarization: Dual-Linear
• Cross-pol Isolation: 35 dB Min.
• ETSI Specification: EN 302 326 DN2
• Mounting: Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included
