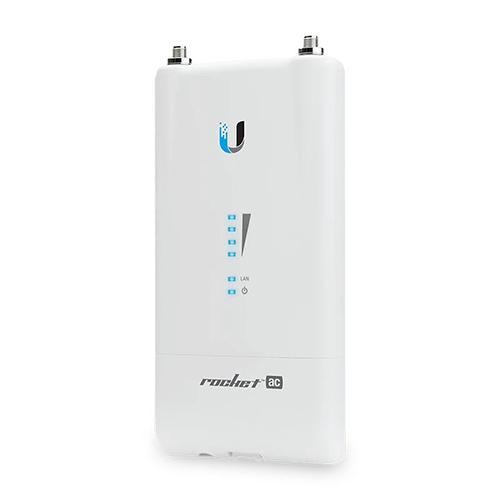

Ubiquiti Rocket AC R5AC-Lite
airMAX®ac BaseStation
Available in three models, the Rocket® ac features airMAX®ac technology for maximum performance in wireless links. The PtP (Point-to-Point) and PtMP (Point-to-MultiPoint) models also feature airPrism™ technology to further enhance 5 GHz performance in high-density areas.
Product Highlights
• 5 GHz Frequency Band
• Gigabit Ethernet
• Passive Power over Ethernet (PoE)
• 27 dBm of output power
• Plug and Play Integration
• Dimensions: 162 x 84 x 37 mm (6.38 x 3.31 x 1.46”)
• Weight: 250 g (8.81 oz)
• Power Supply: 24V, 0.5A Gigabit PoE Adapter
• Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
• Max. Power Consumption: 8.5W
• Processor: Atheros MIPS 74Kc, 720 MHz
• Memory: 128 MB DDR2 SDRAM, 16 MB NOR FLASH
• Networking Interface: (1) 10/100/1000 Mbps
• RF Connections: (2) RP-SMA (Waterproof )
• LEDs: Power, LAN, (4) Signal Strength
