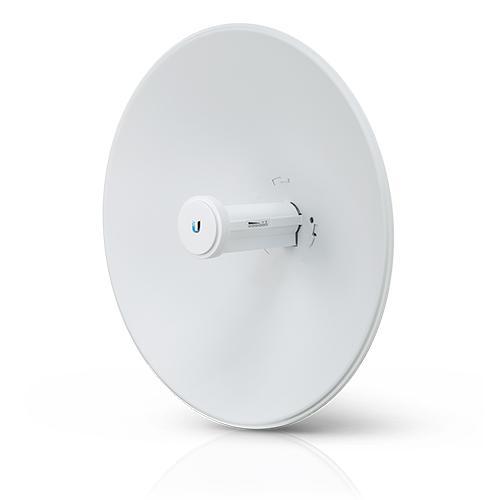

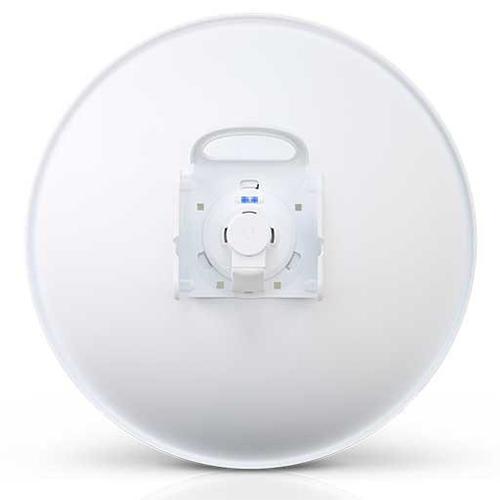

Ubiquiti Powerbeam PBE-5AC Gen2
High-Performance airMAX® ac Bridge
Incorporating a dish reflector design with proprietary airMAX® ac technology, the PowerBeam® AC is ideal for CPE deployments requiring maximum performance.
Product Highlights
• Management Wi-Fi Radio
• Improved Mounting and Surge Protection
• Integrated Radio Design
• Plug and Play Installation
• Incredible Antenna “Beam” Performance
• Power Supply: 24V, 0.5A Gigabit PoE Adapter (included)
• Max. Power Consumption: 8.5W
• Power Method: Passive PoE (Pairs 4,5+;7,8 Return)
• Supported Voltage Range: 20 to 26VDC
• Gain: 25dBi
• Networking Interface: (1) 10/100/1000 Ethernet Port
• Processor Specs: MIPS 74Kc
• Memory: 64MB
• LEDs: Power, Ethernet, (4) Signal Strength
• Channel Sizes:
• PtP Mode: 10/20/30/40/50/60/80MHz
• PtMP Mode: 10/20/30/40MHz
• Enclosure Characteristics:
• Antenna Feed: Outdoor UV Stabilized Plastic
• Dish Reflector: Powder-Coated SPCC
• Mounting: Pole-Mounting Kit (included)
• Wind Loading: 380N @ 200km/h (85.4lbf @ 125mph)
• Wind Survivability: 200km/h (125mph)
• ESD/EMP Protection: Air: ±24kV / Contact: ±24kV
• Operating Temperature: -40 to 70°C (-40 to 158°F)
