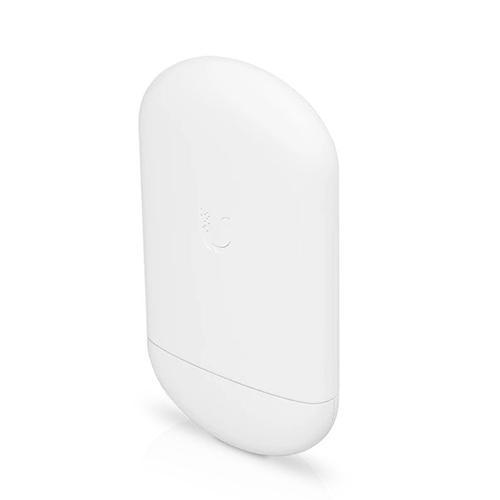

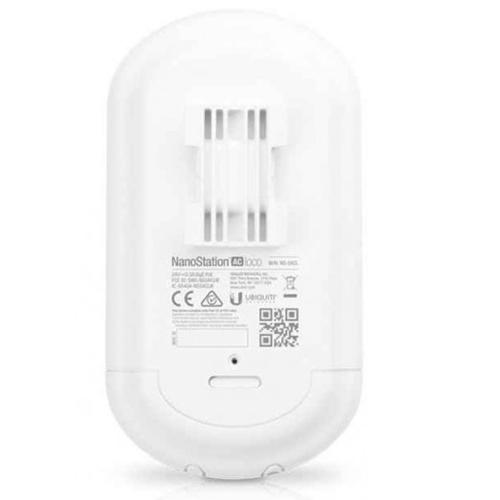

Ubiquiti NanoStation NS-5ACL
5 GHz airMAX® ac CPE
The indoor/outdoor NanoStation® AC and NanoStation AC loco are compact, high-performance CPEs featuring airMAX® AC technology and a dedicated Wi-Fi radio for management.
Product Highlights
• Sleek Industrial Design
• Dual Ethernet Connectivity
• Management Wi-Fi Radio
• Improved Surge Protection
• Throughput: Up to 450+ Mbps Real TCP/IP Throughput
• Operating Frequency (MHz): 5150 - 5250, 5725 - 5850
• Management Radio (MHz): 2412 - 2462
• Power Supply: 24V, 0.5A Gigabit PoE Supply*
• Max. Power Consumption: 8.5W
• Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
• Gain: 13 dBi
• Networking Interface: 10/100/1000 Mbps Ethernet Port
• Channel Bandwidths: 10/20/30/40/50/60/80 MHz
• Processor Specs: Atheros MIPS 74Kc, 560 MHz
• Memory: 64 MB DDR2
• Cross-pol Isolation: 20 dB Minimum
• Max. VSWR: 1.8:1
• Beamwidth: 45° (H-pol) / 45° (V-pol) / 45° (Elevation)
• Polarization: Dual Linear
