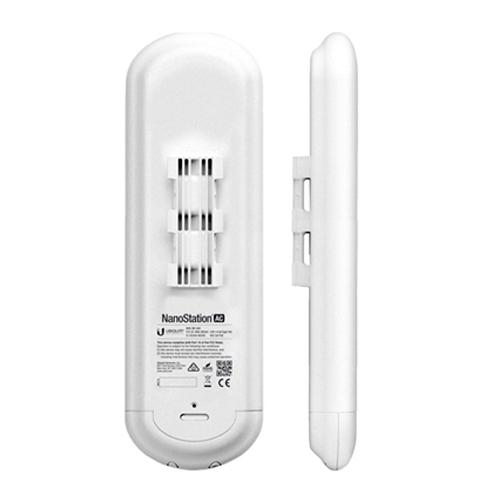

Ubiquiti NanoStation AC N5-AC
5 GHz airMAX® ac CPE
The indoor/outdoor NanoStation® AC and NanoStation AC loco are compact, high-performance CPEs featuring airMAX® AC technology and a dedicated Wi-Fi radio for management
Product Highlights
• Sleek Industrial Design
• Dual Ethernet Connectivity
• Management Wi-Fi Radio
• Improved Surge Protection
• Power Supply: 24V, 0.5A Gigabit PoE Supply (Included)
• Max. Power Consumption: 8.5W
• Power Method:
• 802.3af Alternative A (Pairs 1, 2+; 3, 6 Return)
• 24V Passive PoE (Pairs 4, 5+; 7, 8 Return)
• Gain: 16 dBi

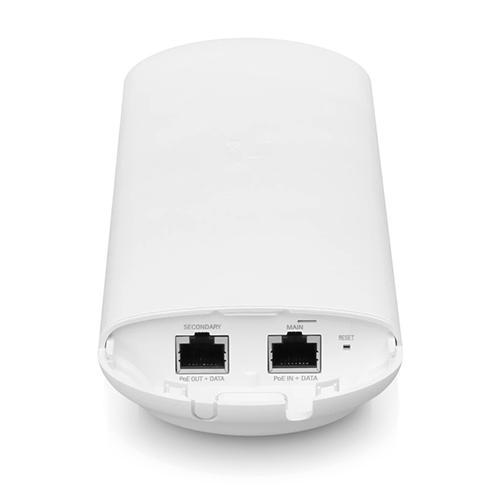

• Networking Interface: (2) 10/100/1000 Mbps Ethernet Ports
• Channel Bandwidths: 10/20/30/40/50/60/80 MHz
• Processor Specs: Atheros MIPS 74Kc, 560 MHz
• Memory: 64 MB DDR2
• Cross-pol Isolation: 20 dB Minimum
• Max. VSWR: 1.6:1
• Beamwidth: 45 degrees (H-pol) / 45 degrees (V-pol) / 45 degrees (Elevation)
• Polarisation: Dual Linear
• Enclosure: UV Resistant Polycarbonate
• LEDs: (1) Power, Eth1, Eth2; (1) Signal Strength
