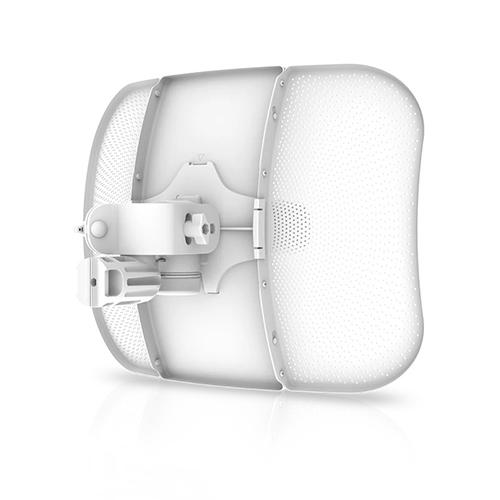

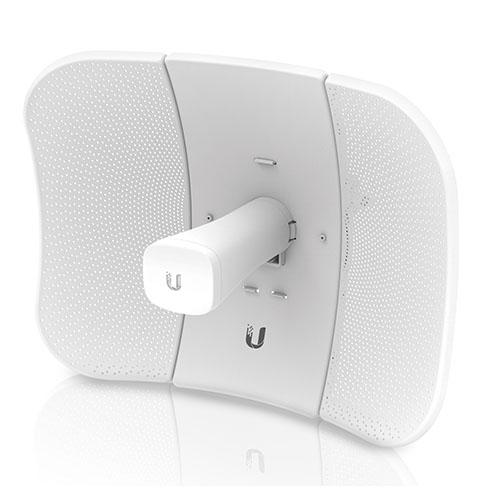

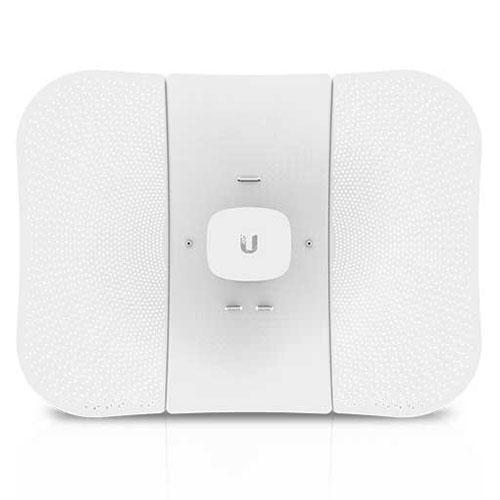

Ubiquiti LiteBeam AC LBE-5AC-GEN2
2x2 MIMO airMAX® ac CPE
The LiteBeam® AC is an ultra-lightweight airMAX ac CPE device with incredible range and disruptive pricing.
Product Highlights
• Management Wi-Fi Radio
• Improved Mounting and Surge Protection
• Now with airOS®8 and airView®
• High-Gain, Directional, 2x2 MIMO Antenna
• Breakthrough Industrial Design
• Compact in Size, Light in Weight
• Power Supply: 24V, 0.3A Gigabit PoE Adapter (included)
• Max. Power Consumption: 7W
• Power Method: Passive PoE (Pairs 4,5+;7,8 Return)
• Supported Voltage Range: 24V±10%
• Operating Frequency: 2412 - 2462MHz / 5150 - 5875MHz
• Gain: 23dBi
• Networking Interface: (1) 10/100/1000 Ethernet Port
• Processor Specs: MIPS 74Kc
• Memory: 64 MB DDR2
• LEDs: Power, Ethernet
• Channel Sizes:
• PtP Mode: 10/20/30/40/50/60/80MHz
• PtMP Mode: 10/20/30/40MHz
• Enclosure Characteristics: Reflector (SGCC 0.6T) / Plastic: PC
• Mounting: Pole-Mounting Kit (Included)
• Wind Loading: 275N @ 200km/h (61.8lbf @ 125mph)
• Wind Survivability: 200km/h (125mph)
