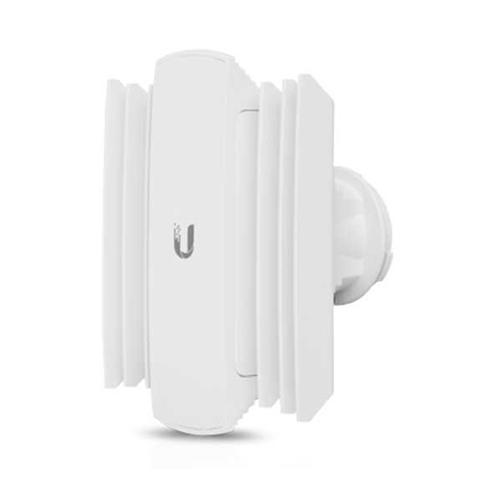

Ubiquiti Horn-5-90
5 GHz Beamwidth Horn Antenna
With a range of different beam widths, the isolation antennas are interchangeable and feature high-performance beam patterns ideal for a range of deployment needs. Used with the airFiber® LTU and airMAX® radios, these antennas deliver superb co‐location performance without sacrificing gain.
Product Highlights
• Isolation Antenna Horns for airFiber® LTU and airMAX®
• Designed for Increased Co-Location Performance
• Dual-Linear Polarization
• Enhanced Co-Location
• Dimensions: 152.1 x 186.8 x 113.2 mm (5.99 x 7.35 x 4.46")
• Weight: 920 g (32.45 oz)
• Supported Frequency Range: 5.15 - 5.85 GHz
• Gain: 13 dBi
• HPOL Beamwidth: 90°
• VPOL Beamwidth: 90°
• Elevation Beamwidth: 45°
• Maximum VSWR: 2:1
• Wind Survivability: 200 km/h (125 mph)
• Wind Loading: 56 N @ 200 km/h (10.3 lbf @ 125 mph)
• Polarization: Dual-Linear
• Cross-Pol Isolation: 17 dB
