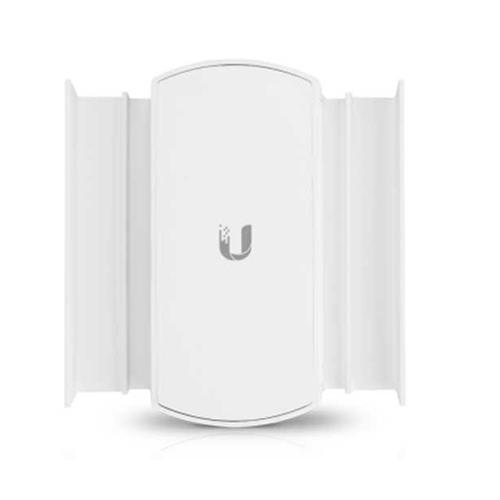

Ubiquiti Horn-5-60

Horn-5-60

5 GHz Beamwidth Horn Antenna
With a range of different beam widths, the isolation antennas are interchangeable and feature high-performance beam patterns ideal for a range of deployment needs. Used with the airFiber® LTU and airMAX® radios, these antennas deliver superb co‐location performance without sacrificing gain.

Product Highlights

•    Isolation Antenna Horns for airFiber® LTU and airMAX®
•    Designed for Increased Co-Location Performance
•    Dual-Linear Polarization
•    Enhanced Co-Location





Technical Specification
Data Sheet
Inquire Now

•    Dimensions: 161.6 x 173.3 x 170.9 mm (6.4 x 6.82 x 6.73")
•    Weight: 720g (25.39 oz)
•    Supported Frequency Range: 5.15 - 5.85 GHz
•    Gain: 16 dBi
•    HPOL Beamwidth: 60°
•    VPOL Beamwidth: 60°
•    Elevation Beamwidth: 30°
•    Maximum VSWR: 2:1
•    Wind Survivability: 200 km/h (125 mph)
•    Wind Loading: 56 N @ 200 km/h (11.2 lbf @ 125 mph)
•    Polarization: Dual-Linear
•    Cross-Pol Isolation: 17 dB
