Ubiquiti Enterprise Campus 48 PoE
New UniFi Enterprise Campus Switching Family
Exceptional Speeds & Capacity, Hi-Performance Server, Connectivity Massive Scale, High Availability
MC-LAG, Future Proof
• Automatic Failover: Layer 3 (VRRP)
• PoE Type: Up to PoE+++
• PoE Availability: Up to 2,150 W
• Switching Capacity: Up to 3.6 Tbps
• RJ45 Ports Speeds: Up to 10 Gbps
• SFP Port Speeds: Up to 100 Gbp
• Dimensions: 442 x 496 x 44 mm (17.4 x 19.5 x 1.7")
• Weight Without mounting brackets: 9.5 kg (20.9 lb)
• With mounting brackets: 9.6 kg (21.1 lb)
• Enclosure material: SGCC steel
Slide rails support: The rails support 482.6 mm (19") four-post racks with square holes (9.5 x 9.5 mm) and posts depths ranging from 650 to 1,000 mm (25.6–39.4”)
• Management interface: Ethernet In-Band

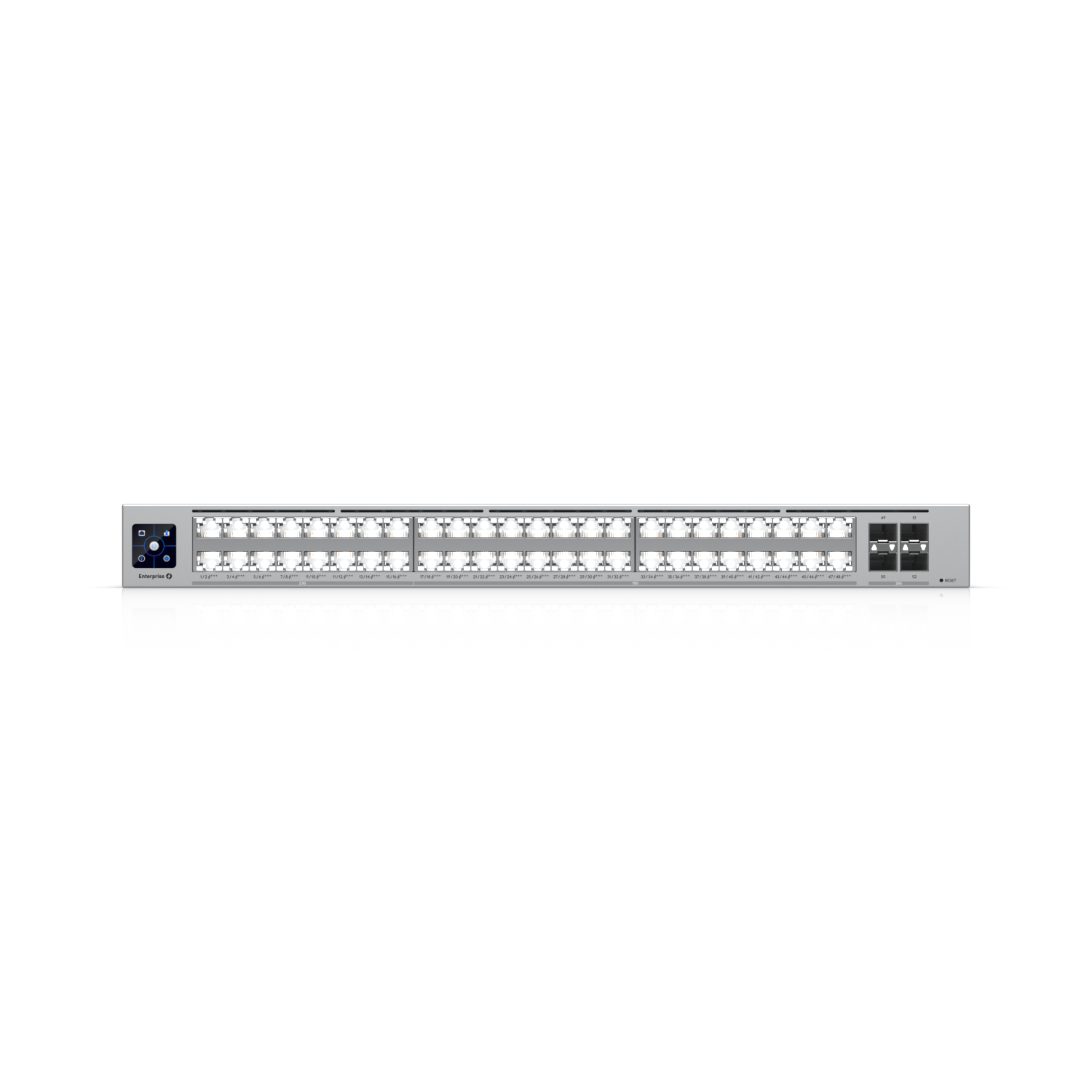

• Networking interface: (32) 10/5/2.5/1 GbE, 100/10 MbE RJ45 ports | (16) 2.5/1 GbE, 100/10 MbE RJ45 ports | (4) 25/10/1G SFP28 ports | PoE interface (48) 90W PoE+++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)* *802.3bt Type 4, Class 8
• Total non-blocking throughput: 460 Gbps
• Switching capacity: 920 Gbps
• Forwarding rate 684.48 Mpps
• Power method: (2) Universal input, 100—240V AC, 50/60 Hz

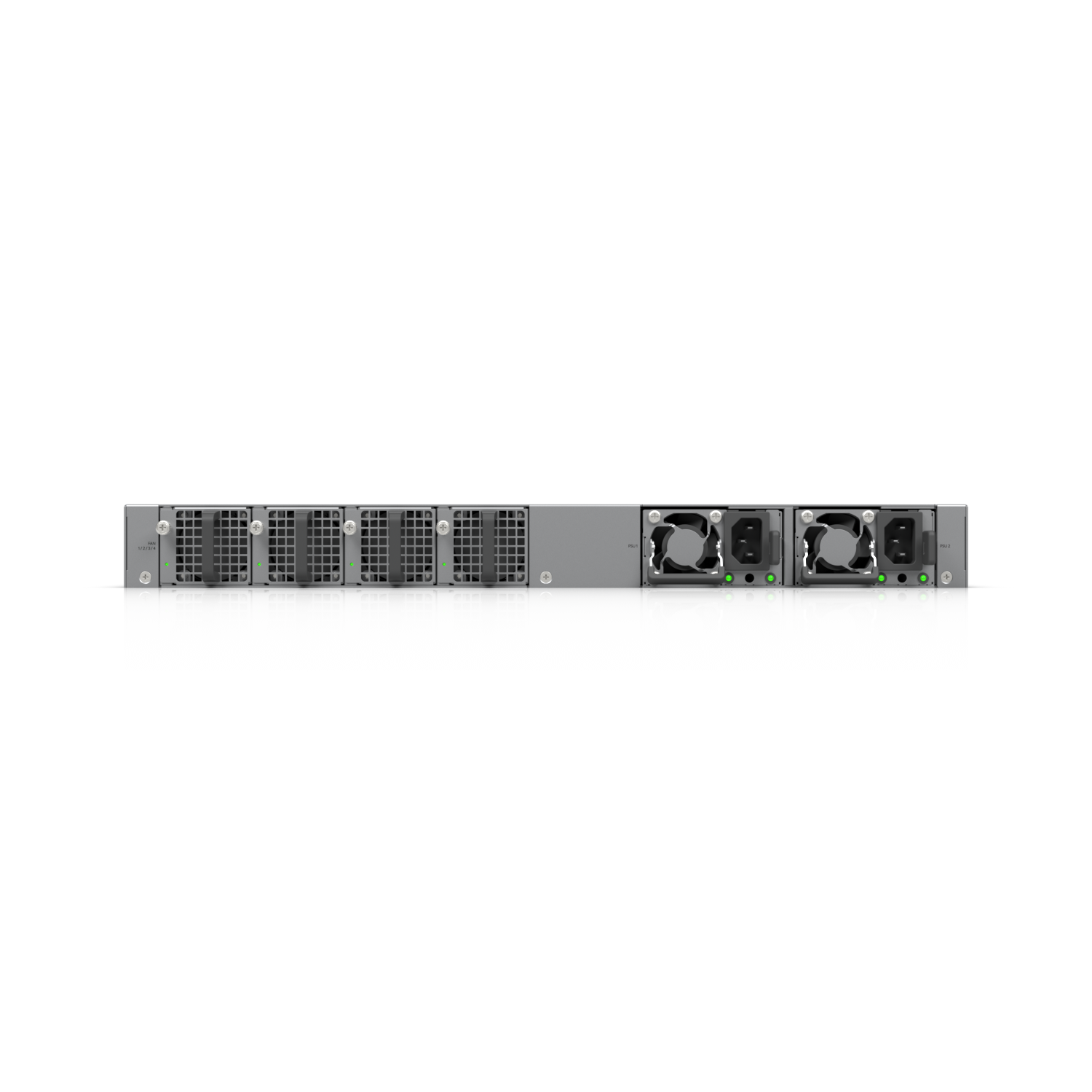

• Power supply: (2) Hot-swappable AC/DC 1,200W power modules
• Max. power consumption: Excluding PoE output: 250W
Including PoE output: 2,400W
• Total available PoE: 2,150W*
*With (2) 1,200W power modules. The second power module can provide redundant or additional power to PoE ports as needed.
• Max. PoE wattage per port by PSE: PoE+++: 90W
• Voltage range PoE mode: 50—57V
• LCM display: (1) 1.3" touchscreen
• Button: Factory reset
• Ambient operating temperature: -5 to 40° C (23 to 104° F)
• Ambient operating humidity: 10 to 90% noncondensing
• Certifications: CE, FCC, IC
