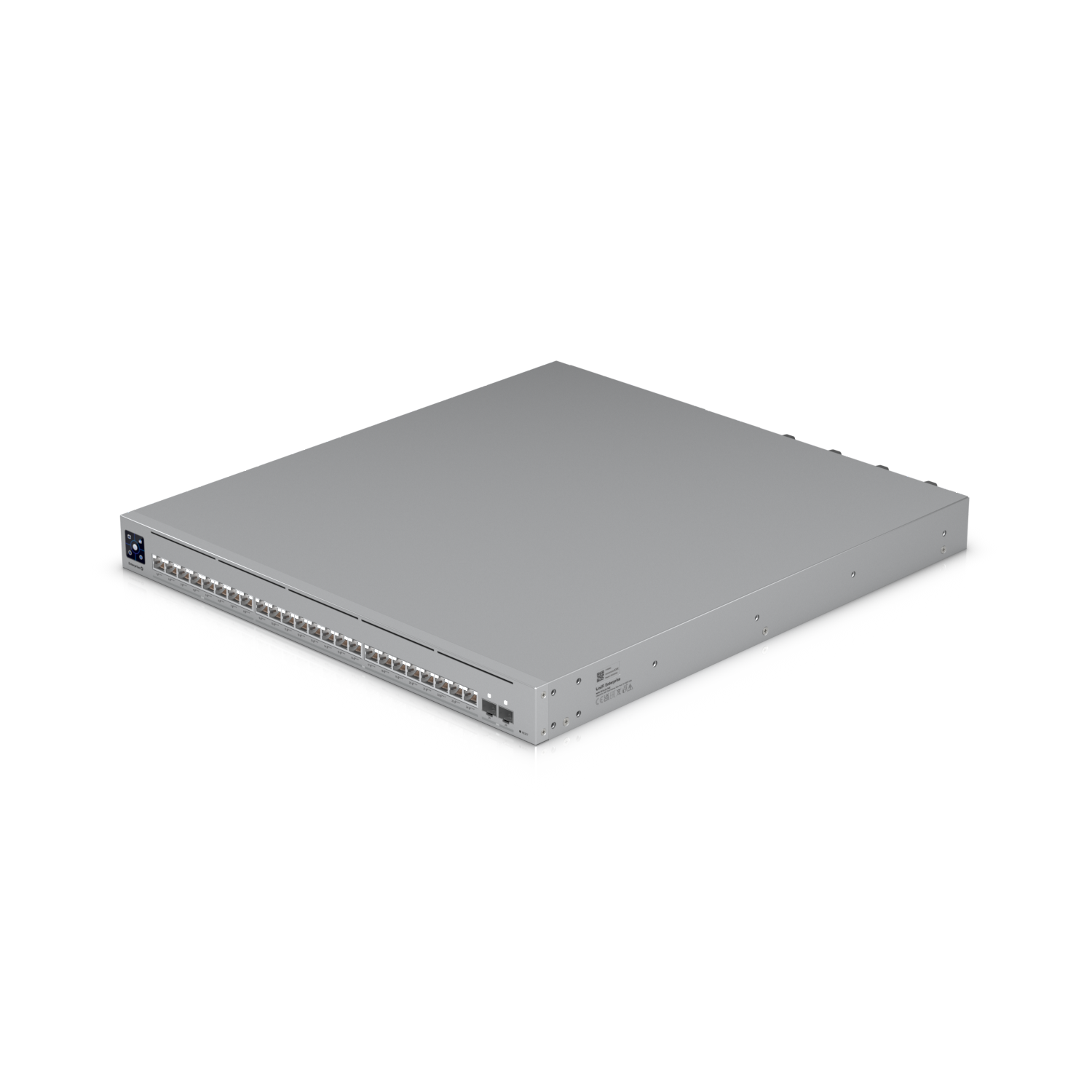

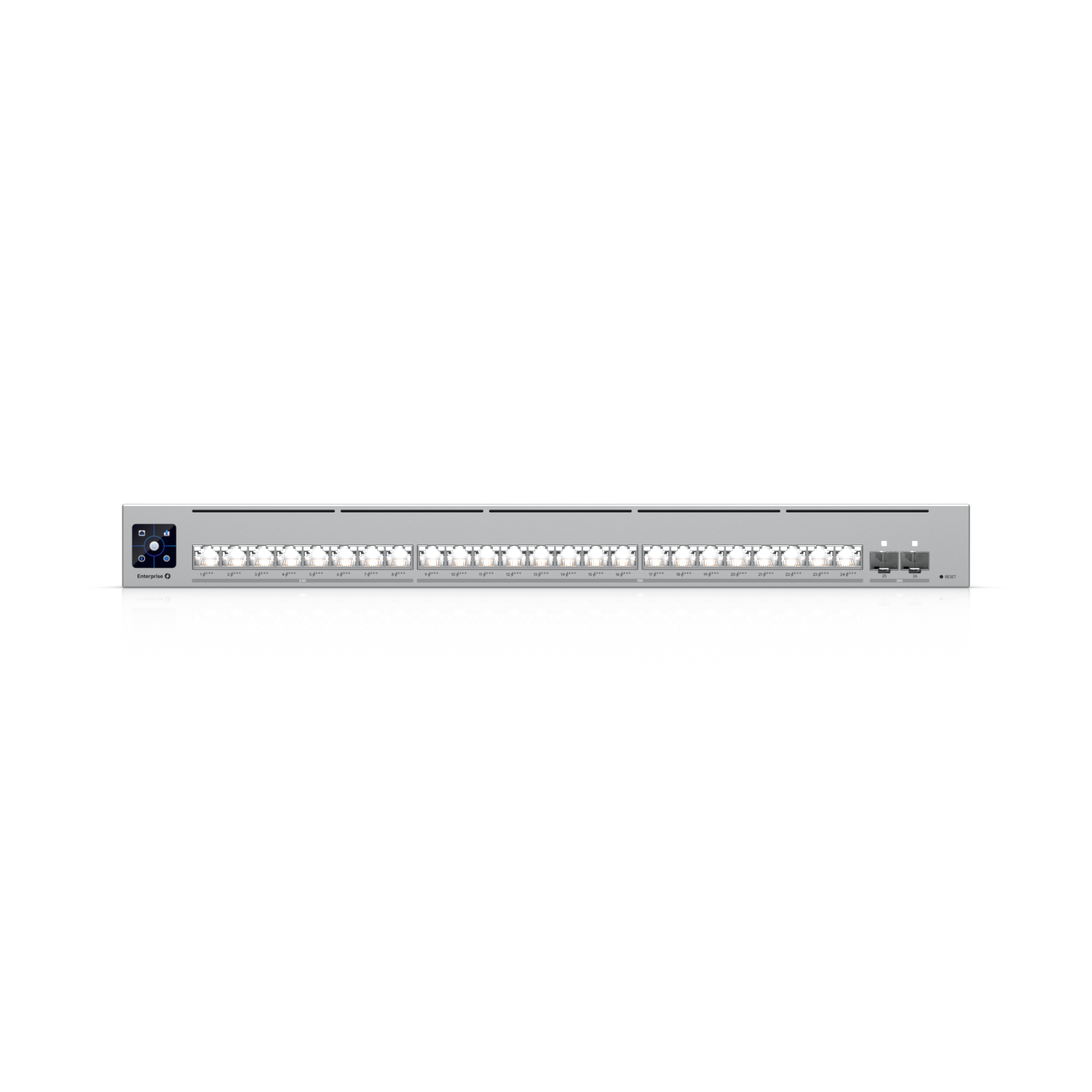

Ubiquiti Enterprise Campus 24 PoE
New UniFi Enterprise Campus Switching Family
Exceptional Speeds & Capacity, Hi-Performance Server, Connectivity Massive Scale, High Availability
MC-LAG, Future Proof
• Automatic Failover: Layer 3 (VRRP)
• PoE Type: Up to PoE+++
• PoE Availability: Up to 2,150 W
• Switching Capacity: Up to 3.6 Tbps
• RJ45 Ports Speeds: Up to 10 Gbps
• SFP Port Speeds: Up to 100 Gbp
• Dimensions: 442 x 496 x 44 mm (17.4 x 19.5 x 1.7")
• Weight Without mounting brackets: 9.2 kg (20.3 lb)
• With mounting brackets: 9.3 kg (20.5 lb)
• Enclosure material: SGCC steel
Slide rails support: The rails support 482.6 mm (19") four-post racks with square holes (9.5 x 9.5 mm) and posts depths ranging from 650 to 1,000 mm (25.6–39.4”)
• Management interface: Ethernet In-Band
• Networking interface: (16) 10/5/2.5/1 GbE, 100/10 MbE RJ45 ports (8) 2.5/1 GbE, 100/10 MbE RJ45 ports (2) 25/10/1G SFP28 ports
• PoE interface: (24) 90W PoE+++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)**802.3bt Type 4, Class 8
• Total non-blocking throughput: 230 Gbps
• Switching capacity: 460 Gbps
• Forwarding rate : 342.24 Mpps
• Power method: (2) Universal input, 100—240V AC, 50/60 Hz
• Power supply: (2) Hot-swappable AC/DC 600W power modules* *Can be swapped with the AC/DC 1.2kW power module (sold separately) to increase the total PoE capacity.
• Supported voltage range100—240V AC
• Max. power consumption: Excluding PoE output: 150W
• Including PoE output: 1,200W
• Total available PoE: 1,050W*
*With (2) 600W power modules. The second power module can provide redundant or additional power to PoE ports as needed.
• Max. PoE wattage per port by PSE: PoE+++: 90W
• Voltage range PoE mode: 50—57V
• LCM display: (1) 1.3" touchscreen
• Button: Factory reset
• Ambient operating temperature: -5 to 40° C (23 to 104° F)
• Ambient operating humidity: 10 to 90% noncondensing
• Certifications: CE, FCC, IC
