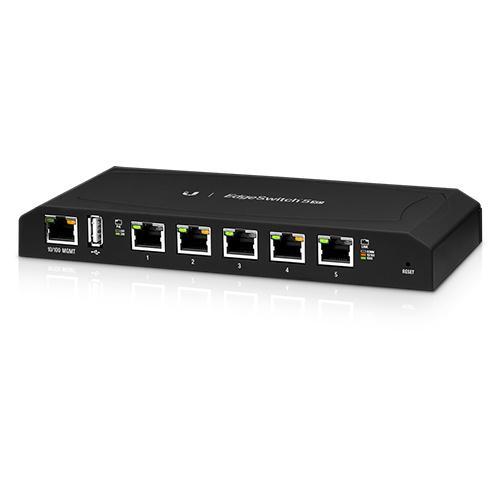

Ubiquiti Edge Switch XP
The EdgeSwitch® XP delivers reliable passive PoE and Gigabit connectivity to attached Ubiquiti devices and other devices that support passive PoE.
Product Highlights
• Clean Industrial Design
• Convenient PoE Support
• Carrier-Class Reliability
• Industrial-Strength Construction
• A Single Power Source
• Intuitive UI
• Dimensions: 210 x 185 x 41 mm
• Weight: 1.24 kg
• Power Input: 110-120VAC / 210-230VAC
• Max. Power Consumption: 150 W
• PoE Out Voltage Range: 45-48VDC / 22-24VDC
• Max. PoE Wattage Per Data Port: 11.5 W (24 V), 23 W (48V)
• ESD Rating: 24 kV Air / 24 kV Contact
• PoE Method: Passive
• Button: Reset
• USB Port: 2.0 Type A (Reserved for Future Use)
• Processor: MIPS 24K, 400 MHz
• System Memory: 64 MB
• Code Storage: 8 MB
• Certifications: CE, FCC, IC
• Operating Temperature: -25 to 55°C (-13 to 131° F)
• Operating Humidity: 90% Non-Condensing
