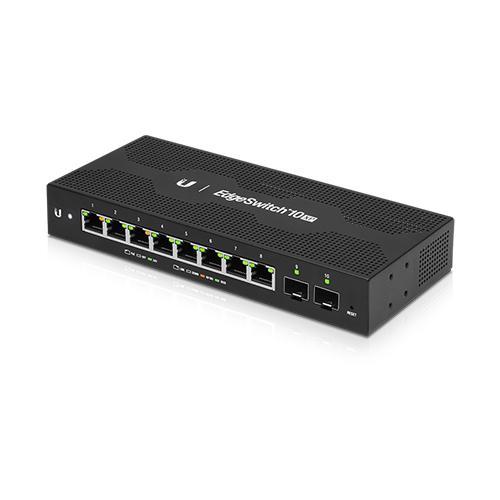

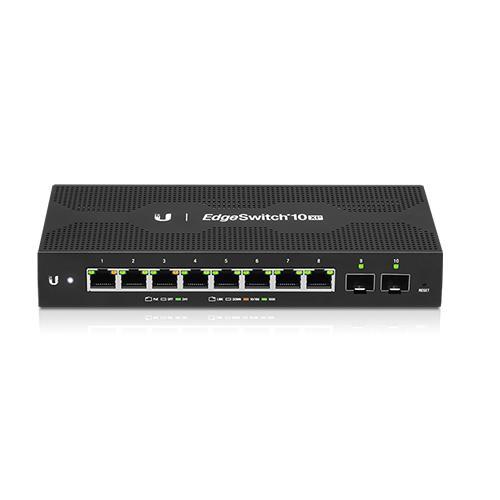

Ubiquiti Edge Switch X ES-10XP
Optimized for WISP deployments, the EdgeSwitch® 10XP is a managed PoE switch with SFP ports. Eight Gigabit RJ45 ports offer copper connectivity with 24V PoE output, while two SFP ports offer fiber connectivity. The browser-based configuration interface offers intuitive control using a redesigned UI. Management is also available through the Ubiquiti® Network Management System (UNMS™)
Product Highlights
• (8) 10/100/1000 Mbps ethernet ports and (2) SFP ports
• Supports 24V passive PoE output on all RJ45 ports
• Powered by external AC/DC adapter
• DC jack supports battery backup with EdgePower™ (sold separately)
• Desk, wall, and rackmount options*
• Dimensions: 207 x 31.1 x 90 mm (8.15 x 1.22 x 3.54")
• Weight: 500 g (1.10 lb)
• Total Non-Blocking Throughput: 10 Gbps
• Switching Capacity: 20 Gbps
• Forwarding Rate: 0 14.88 Mpps
• Max. Power Consumption (Excluding PoE Output): 8W
• Power Method: 24VDC, 2.5A
• Supported Voltage Range: 9 - 30VDC, 5A
• Power Supply: 24VDC, 2.5A Power Adapter (Included)
• Networking Interfaces: (8) 10/100/1000 Mbps RJ45 Ports (2) 1 Gbps SFP Ports
• Management Interface : Ethernet In-Band
• Certifications: CE, FCC, IC
• Rackmount: Yes*
• ESD/EMP Protection Air: ±24 kV, Contact: ±24 kV
• Operating Temperature: -10 to 50° C (14 to 122° F)
• Operating Humidity: 5 to 95% Noncondensing
• Shock and Vibration ETSI300-019-1.4 Standard
