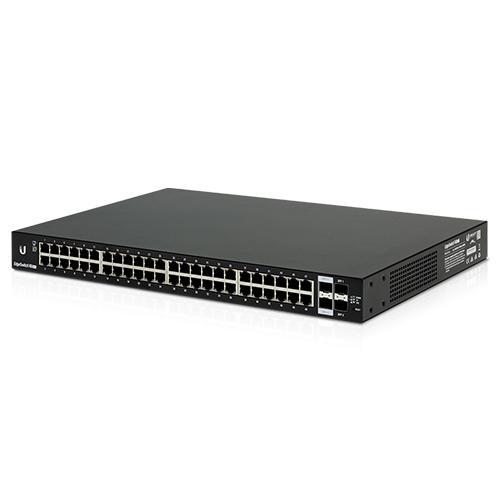

Ubiquiti Edge Switch ES-48-Lite
Managed Gigabit Switches with SFP+
Product Highlights
• Non-Blocking Throughput Switching Performance
• Gigabit Ethernet RJ45 Ports
• SFP+/SFP Fiber Connectivity Options
• Dimensions: 443 x 43 x 286 mm (17.44 x 1.69 x 11.26")
• Weight: 3.65 kg (8.05 lb) 3.56 kg (7.85 lb)
• Total Non-Blocking Throughput: 70 Gbps
• Max. Power Consumption: 56W
• Power Method: 100-240VAC/50-60 Hz, Universal Input DC 56W, 25 to 16V, with 2.5 mm DC Power Inline Connector
• Power Supply: AC/DC, Internal, 56W DC
• Networking Interface: (48) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1/10 Gbps SFP+ Ethernet Ports (2) 1 Gbps SFP Ethernet Ports
• Management Interface: (1) RJ45 Serial Port, Ethernet In/Out Band
• Certifications: CE, FCC, IC
• Rackmount: Yes, 1U High
• Operating Temperature: -5 to 40° C (23 to 104° F)
• Operating Humidity: 5 to 95% Noncondensing
